perforated 55Q,50Q,Q235 30 Kg/m light steel rail way
[Name of Products] Light Rail
[Specification(KGS/M)] 8Kg,9kg,12Kg,15Kg,22Kg,24Kg,30Kg
[Materials] 55Q,50Q,Q235
[Length of Dimension(M)]6,8,9,10m
STEEL RAIL DESCRIPTION:
Depending on the application, modern rail can be divided into three categories:
1, for mine railway light rail, there are 8 kg / m, 9kg / m, 12 kg / m, 15 kg / m, 18 kg / m, 22 kg / m, 24 kg / m, 30 kg / m8 species.
2, the heavy rail passenger and freight rail for use, heavy rail mainly use China Railway 38 kg / m, 43 kg / m, 50 kg / m, 60 kg / m, 75 kg / m five. Another transformation rail lines with the turnout, there are two kinds 60AT 50AT there.
3, for the use of a crane rail crane rail, there QU70, QU80, QU100, QU120 four specifications.
Products information
Name of Commodity |
Specificaton |
Materials (Steel Grade) |
Standard of Products |
Theory Weight (kgs/M) |
Length of Dimension (M) |
Packed In Bundle With Iron Wire (pcs/bundle) |
Light Rail |
4kgs/m |
Q235 |
Q/YG001-2014 |
4kgs/m |
6,8 |
75 |
|
8kgs/m |
Q235 |
Q/YG001-2014 |
8.42kgs/m |
|
55 |
|
12kgs/m |
Q235 |
GB11264-2012 |
12.2kgs/m |
|
36 |
|
15kgs/m |
Q235/55Q |
GB11264-2012 |
15.2kgs/m |
6,8,9,10 |
28 |
|
18kgs/m |
Q235/55Q |
Q/YG001-2014 |
18.06kgs/m |
|
21 |
|
22kgs/m |
Q235/55Q |
GB11264-2012 |
22.3kgs/m |
|
21 |
|
24kgs/m |
Q235/55Q |
Q/YG001-2014 |
24.46kgs/m |
|
21 |
|
30kgs/m |
Q235/55Q |
GB11264-2014 |
30.1kgs/m |
|
15 |
Heavy Rail |
38kgs/m |
U71Mn, U75V |
GB2585-2007 |
38.733kgs/M |
12,12.5 |
10 |
|
43kg/m |
U71Mn, U75V |
GB2585-2007 |
44.653kgs/M |
|
10 |
|
50kgs/m |
U71Mn, U75V |
GB2585-2007 |
51.514kgs/M |
|
10 |
|
|
45/50Mn, U75V |
Q/YYG002-2008 |
31/34/36/39/41kgs/M |
12,12.5 |
10 |
Crane Rail |
QU70 |
U71Mn, U75V |
YB/T5055-93 |
52.8kgs/m |
12 |
10 |
|
QU80 |
U71Mn, U75V |
YB/T5055-93 |
63.69kgs/m |
|
10 |
|
QU100 |
U71Mn, U75V |
YB/T5055-93 |
88.96kgs/m |
|
5 |
|
QU120 |
U71Mn, U75V |
YB/T5055-93 |
118.1kgs/m |
|
5 |
Name of Commodity |
Specification |
Materials |
Standard of Products |
Theory Weight (kg/set) |
Length of Dimension (MM) |
Packed in Bundle with Iron Wire (SETS) |
|
|
(Steel Grade) |
|
|
|
|
Fish Plate |
8kg/m |
Q235 |
GB11265-89 |
0.80-1.00 |
≈270-385 |
50 |
|
12kg/m |
|
|
1.00-1.50 |
≈409 |
50 |
|
15/18kg/m |
|
|
1.90-2.80 |
≈372-409 |
25 |
|
22kg/m |
|
|
3.30-7.50 |
≈426-510 |
20 |
|
24kg/m |
|
|
3.30-9.60 |
≈426-510 |
10 |
|
30kg/m |
|
|
6.00-11.00 |
≈561 |
5 |
|
38/43kg/m |
|
GB185-63 |
19.20-29.6 |
≈790 |
1 |
Except the Light Rails(steel Rails), the main products of our company are Heavy Rails of 38kgs/m,43kgs/m,50kgs/m, material is U71Mn/U71. Standard is GB2585-2007,Q/YYG002-2008.Length is 12m,12.5m
Crane Rails of QU70,QU80,QU100,QU120, material is U71Mn,Standard is YB/T5055-93.Length is 12m,12.5m
Fish Plate of 8kgs,12kgs,15kgs,18kgs,22kgs,24kgs,30kgs,38kgs,43kgs/m,material is Q235B.Standard is GB11265-89,GB185-63. Length is 45.5cm,53.54cm,61.73cm,71.48cm,79cm
Steel rail picture show

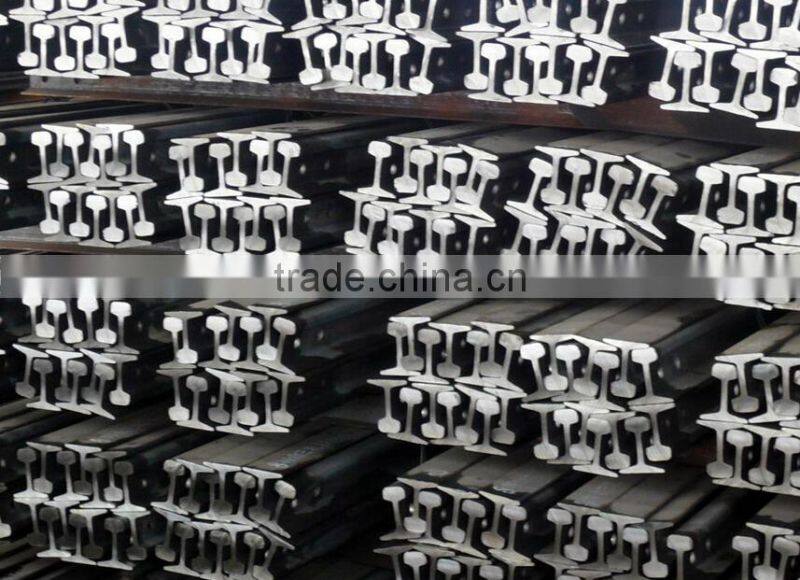

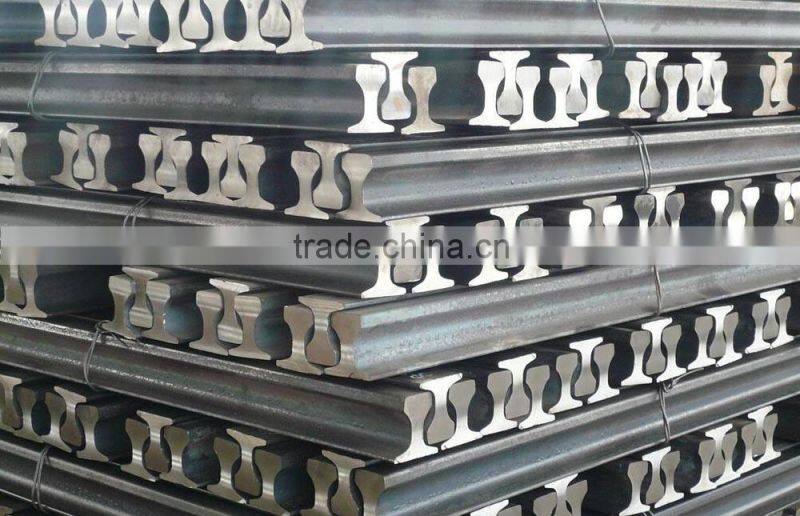

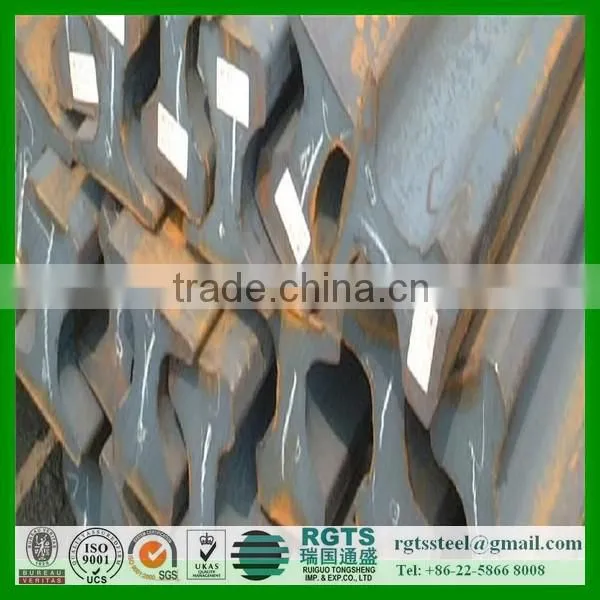

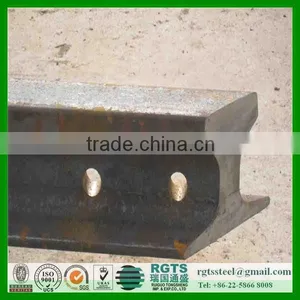

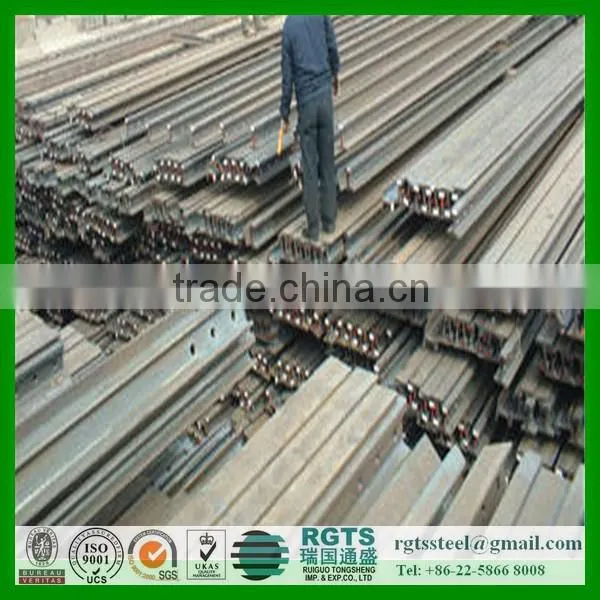

perforated steel rail in stock

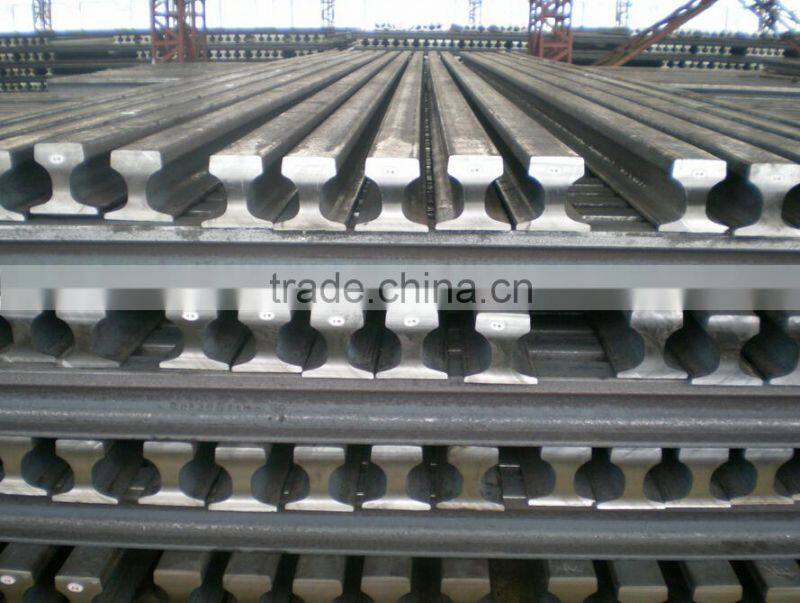

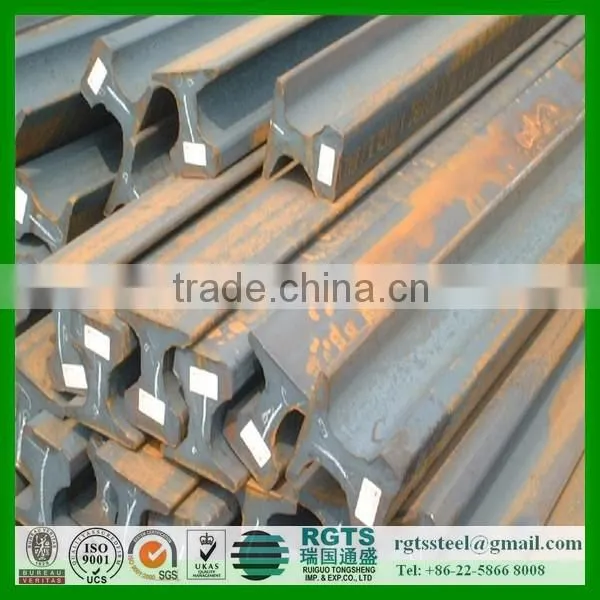

30 kg light rail in factory

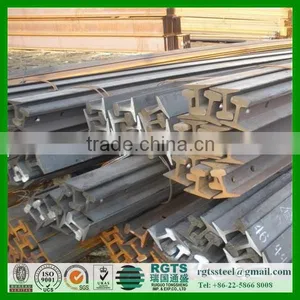

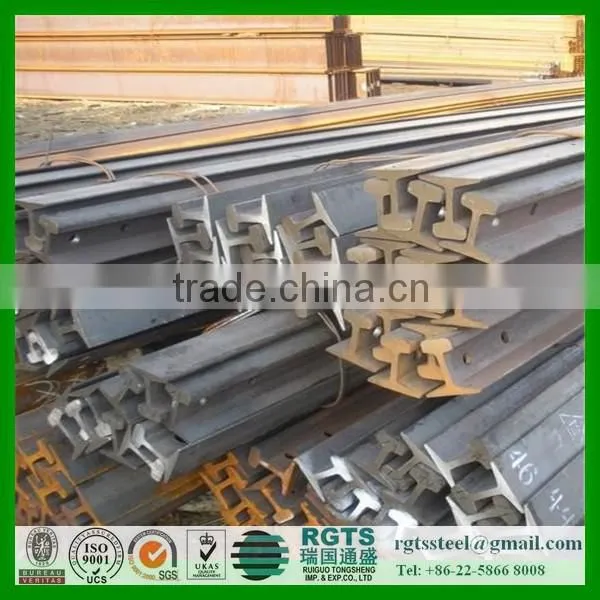

perforated steel rail in factory

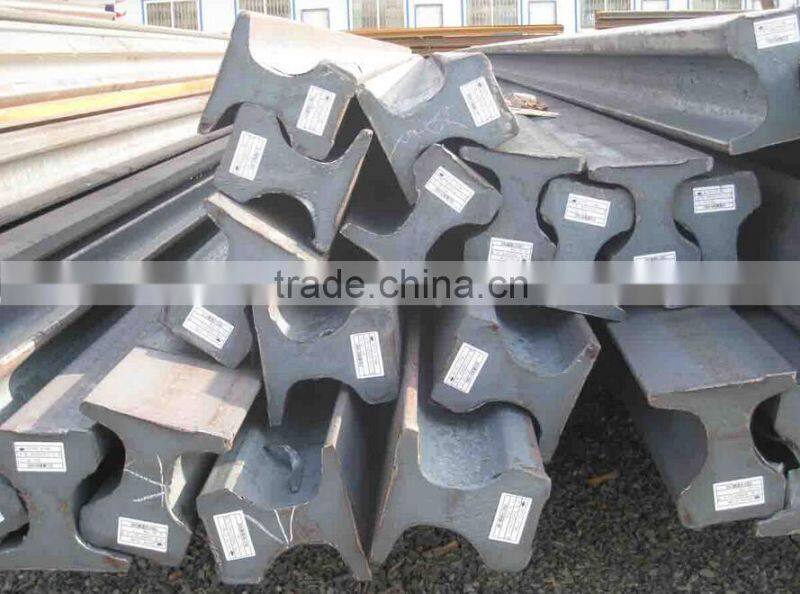

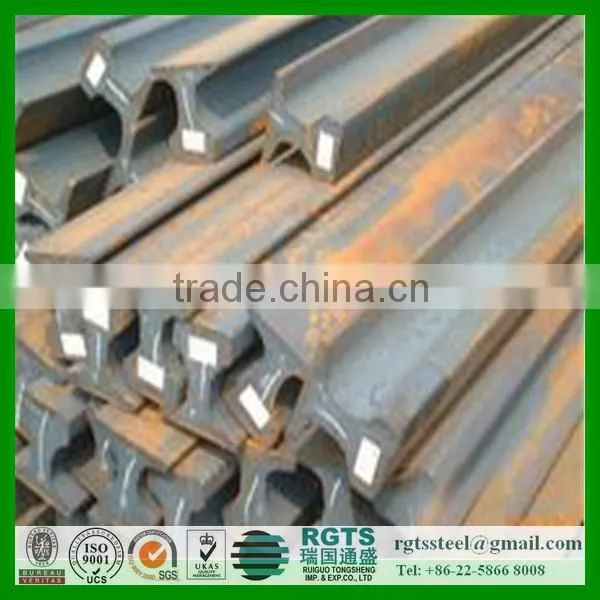

30 kg light rail stock

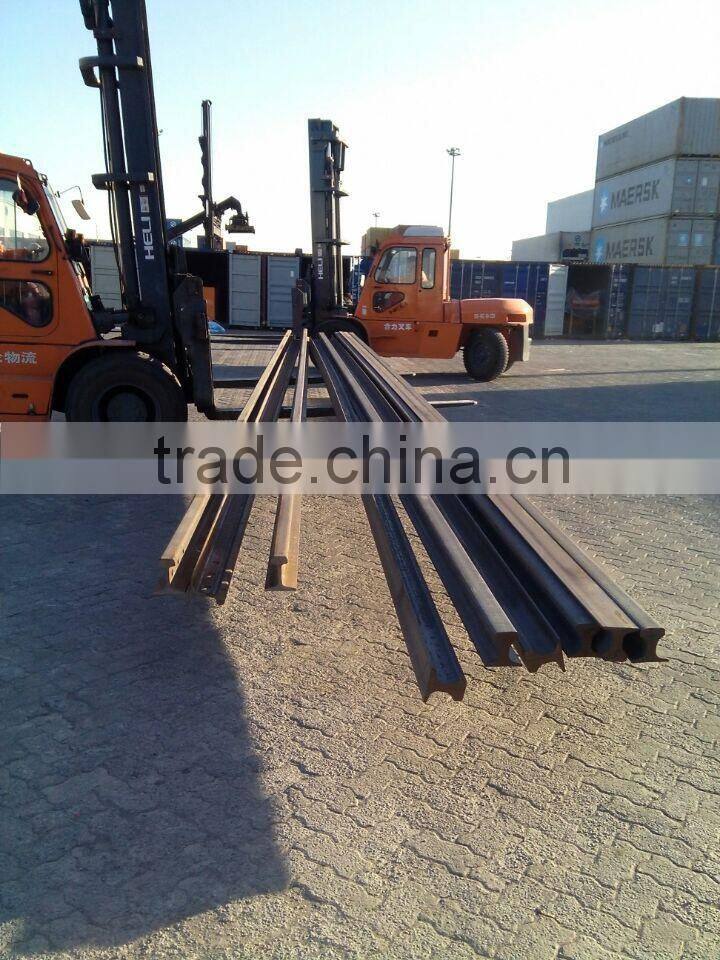

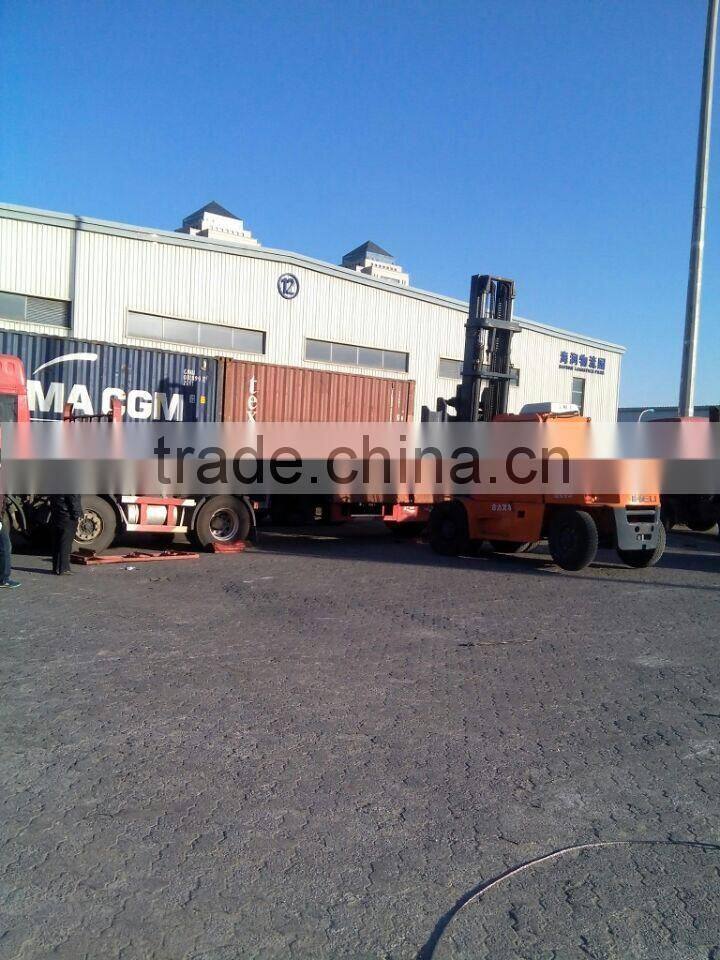

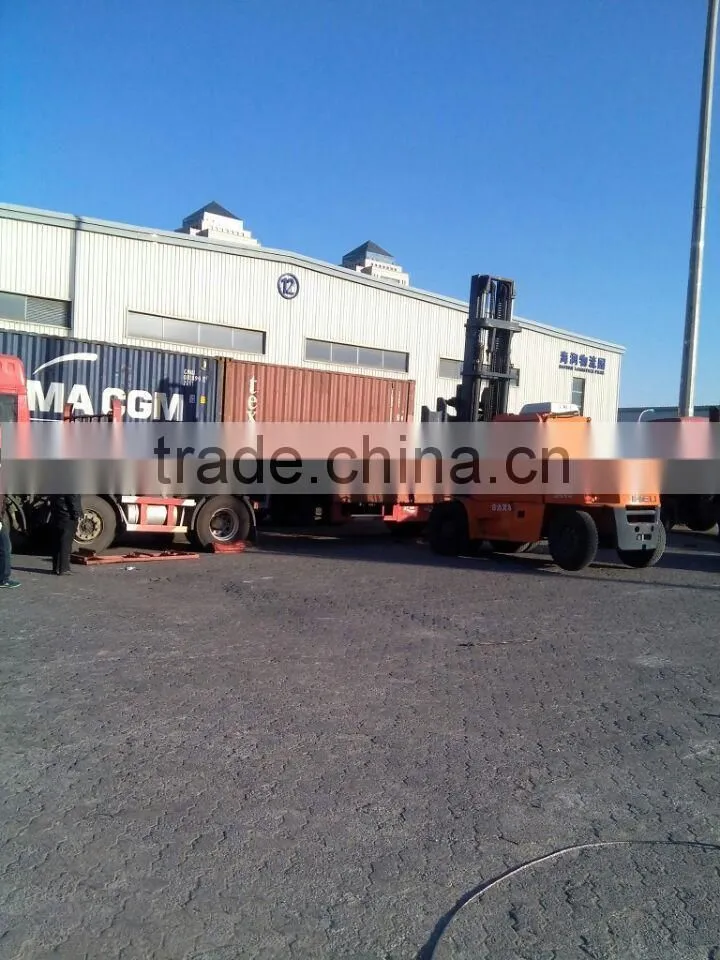

Steel rail loading in container
perforated steel rail in container

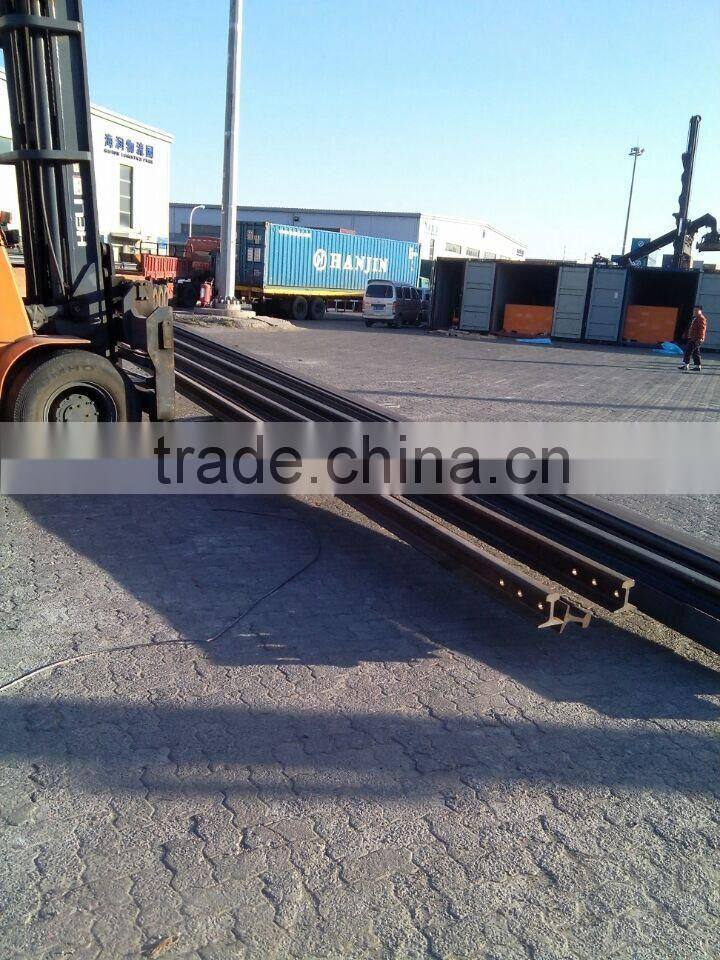

30 kg light rail loaing in container

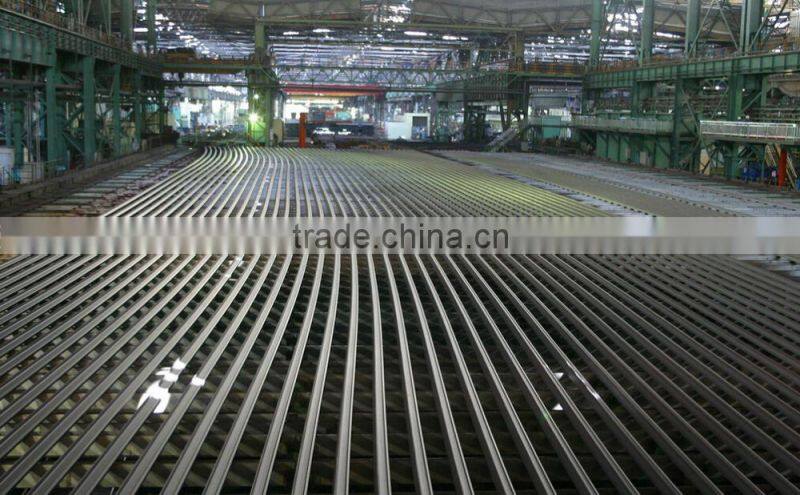

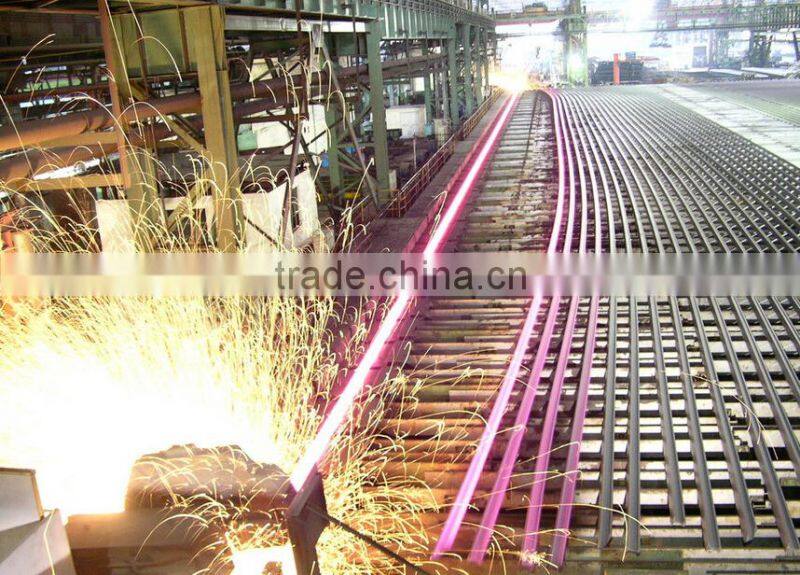

Steel rail mill picture
30 kg light railway processing

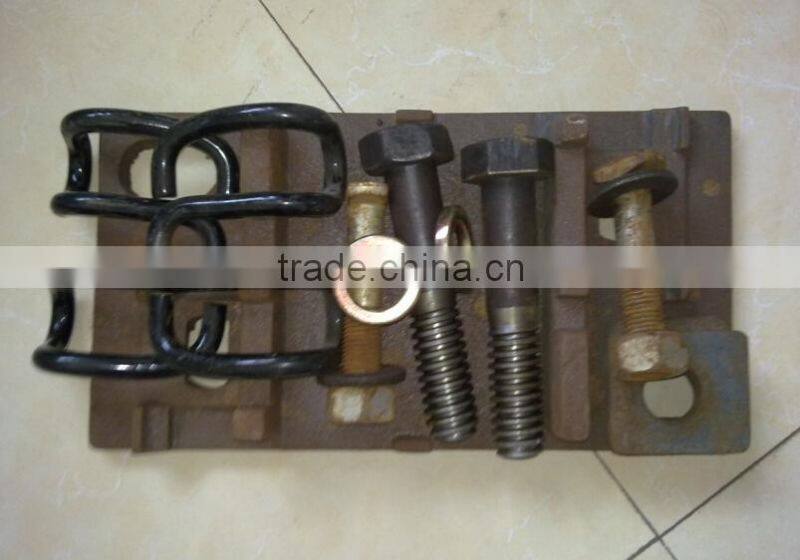

perforated steel rail accessories is available

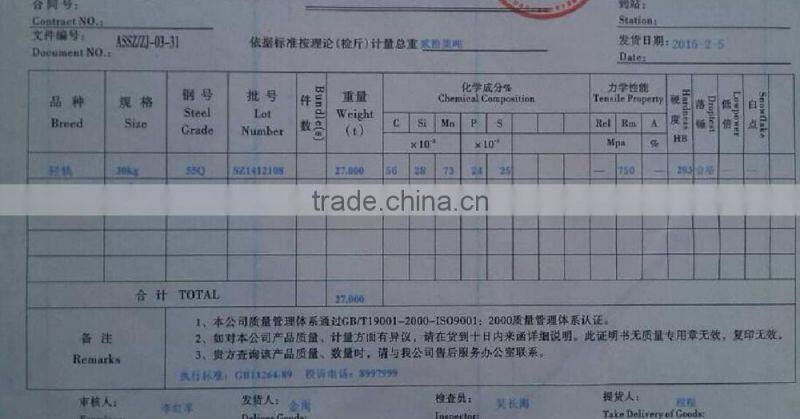

Steel rail material test certificate

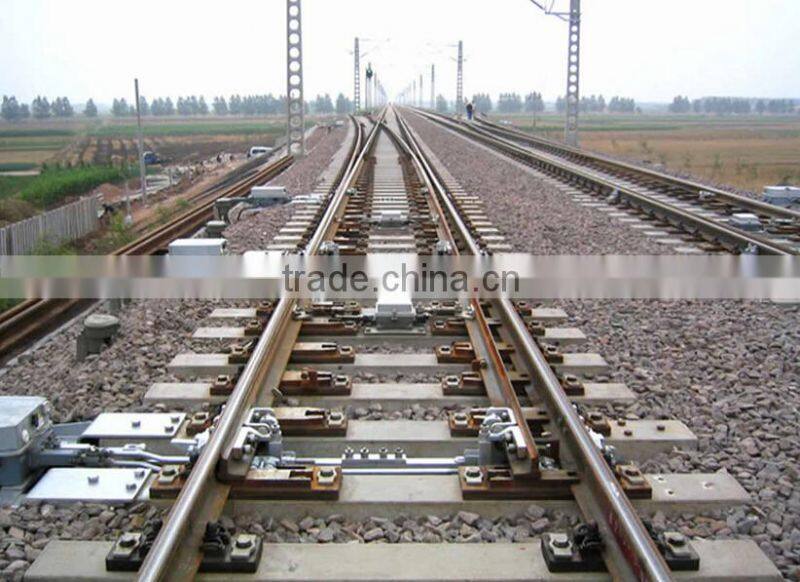

30 kg light railway picture for usage
Company introduction :
Ruiguotongsheng Enterprise Group We have a registered capital of US$ 50 million. Our group is engaged in the production and trade of iron ore powder, coke, coal, billet steel, strip steel, section steel, steel plate, screws and all kinds of finished products.
We have established business relationships with clients in the United States, Japan and other 10 countries and regions. Annualsales revenue is RMB10 billion. Our export value was RMB150 million in 2010.
CERTIFICATE
Anyone interested in our company , feel free contact us . My skype ID : william.hao1 .
