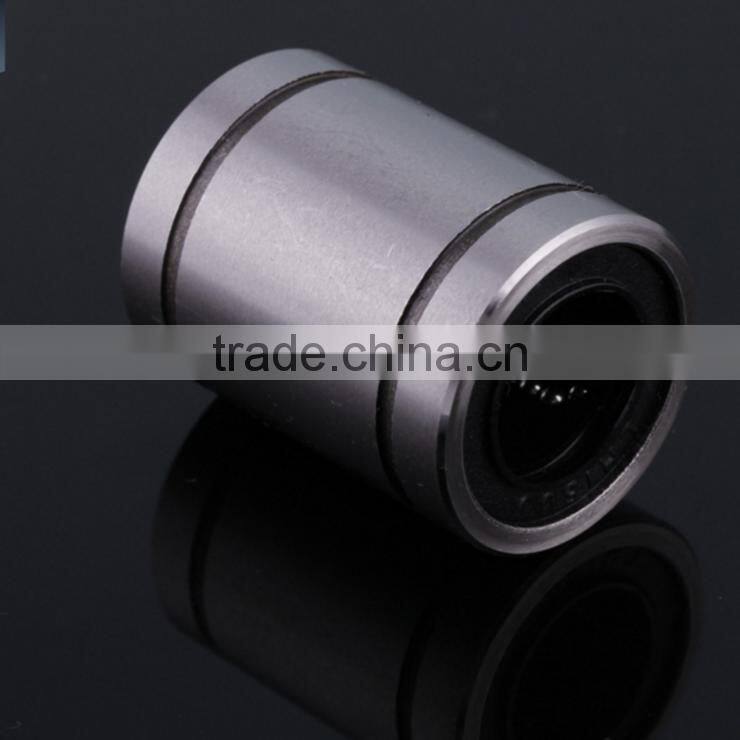

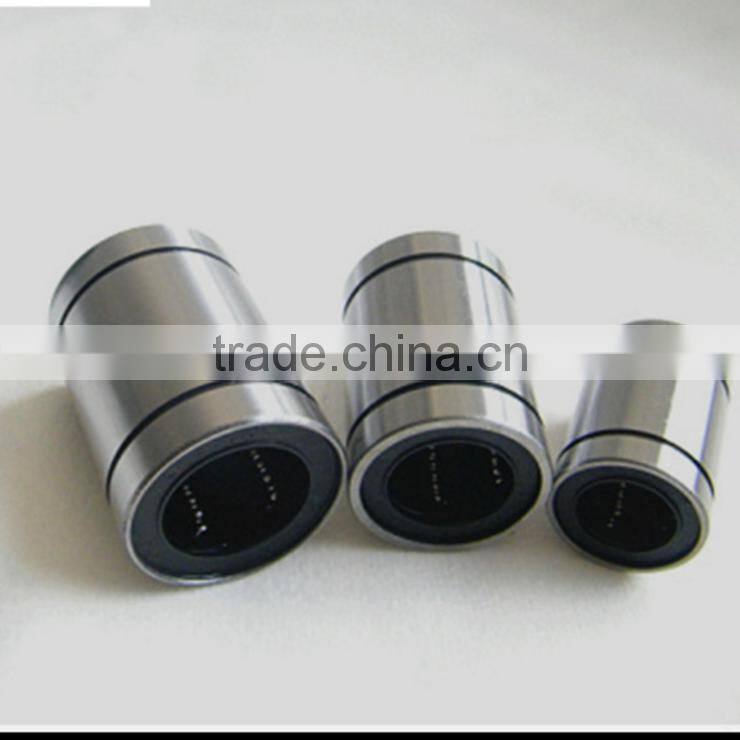

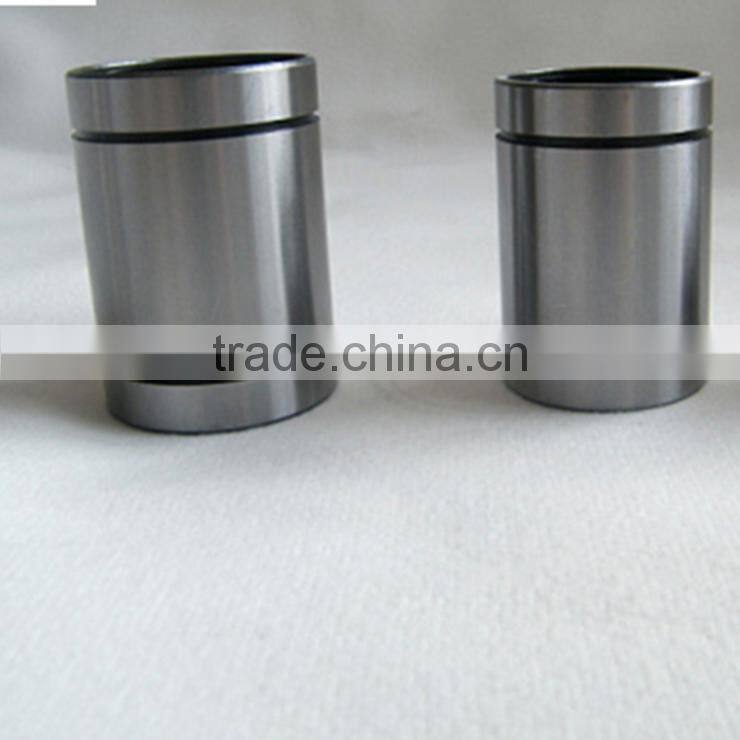

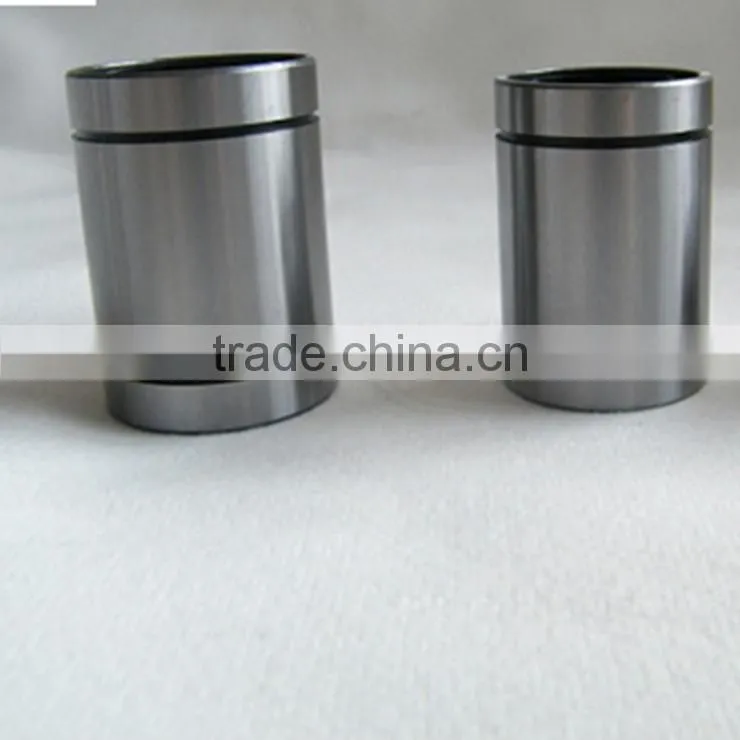

Low price ball bushing linear bearing LME8 for CNC machine
Linear bearings is rectilinear motion system and low cost. Due to the fact that the ball andaxle are point contact type as well as smaller work load and the ball rotation under the smallest bearing drag, linear bearings can support smooth, long-term and high-accuracy running.
Feature
1) Material: GCr 15,
2) Shield/closure: Seals
3) Tolerance: ABEC-1 (P0), ABEC-3 (P6), ABEC-5(P5)
4) Vibration and Noise level: V2, V1, Z1, Z2
5) Internal clearance codes: C0, C2, C3
6) Packing: Industrial packing or individual box packing, carton, pallet
Introduction

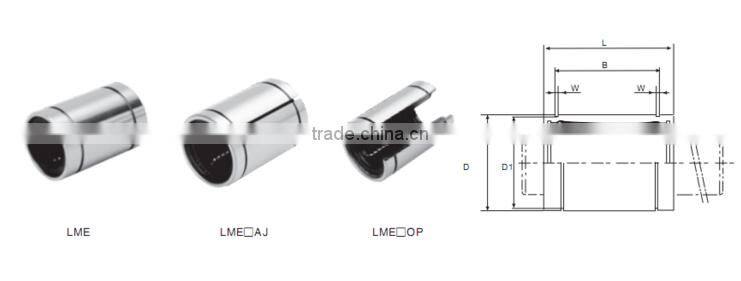

"UU" means rubber seals on the both sides of the long type bearing
"LM" means metric standard type
"LME" means inch standard type
"OP" means open type
"AJ" means adjustment type*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)

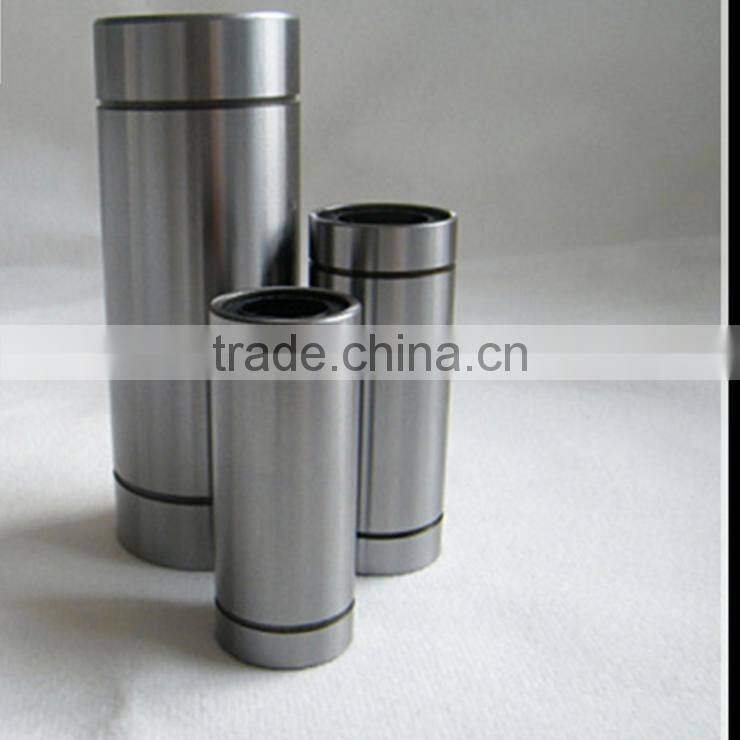

*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
*KH: High-precision mini bearing
Application
Linear bearing are widely-used in automobile, motorbike, electric tools, small appliances, textile machine, printing machine, fitness sports equipment, medical device, printer, automaticteller machine, model airplane etc.
Contact
Attn: Emily
E-mail: emily at
Skype: Emily Cosmic
Datasheet
| MODEL NO. | NUMBER OF BALL | MAIN DIMENSIONS | ECCEN-TRICITY | BASIC LOAD RATING | ||||||||||
| INSCRIBED CIRCLE | OUTER DIAMETER | LENGTH | OUT LOCKING GROOVE | W | c(kgf) | Co(kgf) | ||||||||
| dr | TOLERANCE | D | TOLERANCE | L | TOLERANCE | B | TOLERANCE | D1 | ||||||
| LME3 | 4 | 3 | 0.008 | 7 | 0 | 10 | 0 | 0.01 | 7 | 11 | ||||
| LME4 | 4 | 4 | 8 | -0.009 | 12 | -0.12 | 9 | 13 | ||||||
| LME5 | 4 | 5 | 12 | 22 | 0 | 14.5 | 0 | 11.5 | 1.1 | 0.012 | 21 | 27 | ||
| LME8 | 4 | 8 | 16 | 25 | -0.2 | 16.5 | -0.2 | 15.2 | 1.1 | 27 | 41 | |||
| LME10 | 4 | 10 | 19 | 0 | 29 | 22 | 18 | 1.3 | 38 | 47 | ||||
| LME12 | 4 | 12 | 22 | -0.009 | 32 | 22.9 | 21 | 1.3 | 52 | 79 | ||||
| LME16 | 5 | 16 | 0.009 | 26 | 36 | 24.9 | 24.9 | 1.3 | 59 | 91 | ||||
| LME20 | 5 | 20 | -0.001 | 32 | 0 | 45 | 31.5 | 30.3 | 1.6 | 0.015 | 88 | 140 | ||
| LME25 | 6 | 25 | 0.011 | 40 | -0.011 | 58 | 0 | 44.1 | 0 | 37.5 | 1.85 | 100 | 160 | |
| LME30 | 6 | 30 | -0.001 | 47 | 68 | -0.3 | 52.1 | -0.3 | 44.5 | 2.15 | 160 | 280 | ||
| LME40 | 6 | 40 | 0.013 | 62 | 0 | 80 | 60.6 | 59 | 2.15 | 0.017 | 220 | 400 | ||
| LME50 | 6 | 50 | -0.002 | 75 | -0.013 | 100 | 77.6 | 72 | 2.65 | 390 | 810 | |||
| LME60 | 6 | 60 | 90 | 0 | 125 | 0 | 101.7 | 0 | 86.5 | 3.15 | 0.02 | 480 | 1020 | |
| -0.015 | -0.4 | - | ||||||||||||
Company introduce
ChangshaTerry Machinery Co.,Ltd is a leading international trading company. The growing economics and convenient transportation of Changsha benefits the development of Terry Machinery.
Our products are utilized in commercial, industrial and custom application. Terry Machinery is specialized in engineering machinery bearing and vehicle industrial bearing. Our products have been exported over 46 countries.
The goal of Terry Machinery is to provide out customers with widest range of bearing at lowest price, backed with the best service.
FAQ
1. Do you like to accept small orders?
We enjoy to grow up together with all our clients, whatever big or small. You will become bigger and bigger to be with us.
2. Will you send me free sample?
Yes
3. Could you accept OEM and customization?
YES, we can customize for you according to sample or drawing.
4. Is it your company factory or Trade Company?
We have our own factory and you welcome to come and visit.
5. Do your factory have CE?
Yes, we have ISO 9001, If you want other CE, we can do for you.
6. Could you tell me the packing of your goods?
Single plastic bag—put in single box—put in carton or wooden case—at last packing in pallet.
7. Could you tell me the payment term of your company can accept?
We accept the TT, Pyapal, Western union, alibaba. The custome can choose the way to delivery their goods by sea or Air. We will do our best to serve our customers.
8. Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
9. Can you give me discount on bearing?
Yes, of course. Pls. send me your Email, you’ll get more.
Contact
Attn: Emily dong
E-mail: emily at
Whatsapp:+8618374976461
Skype: emily-xin
Welcome to enquire for more details!
