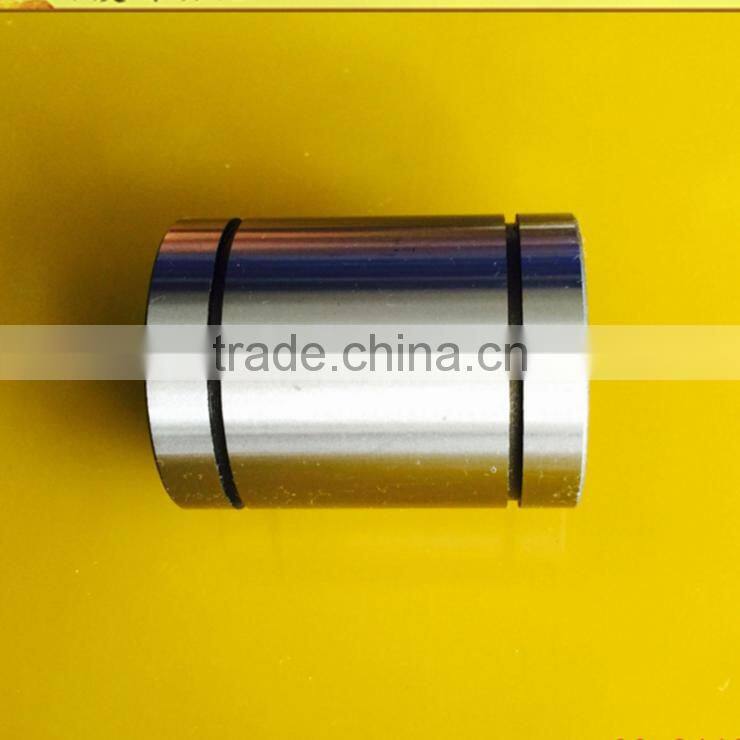

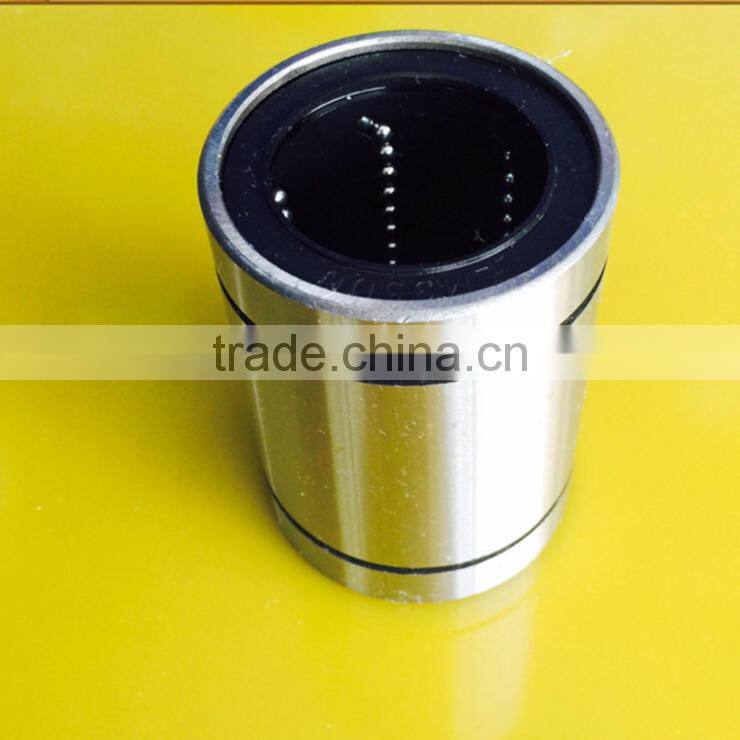

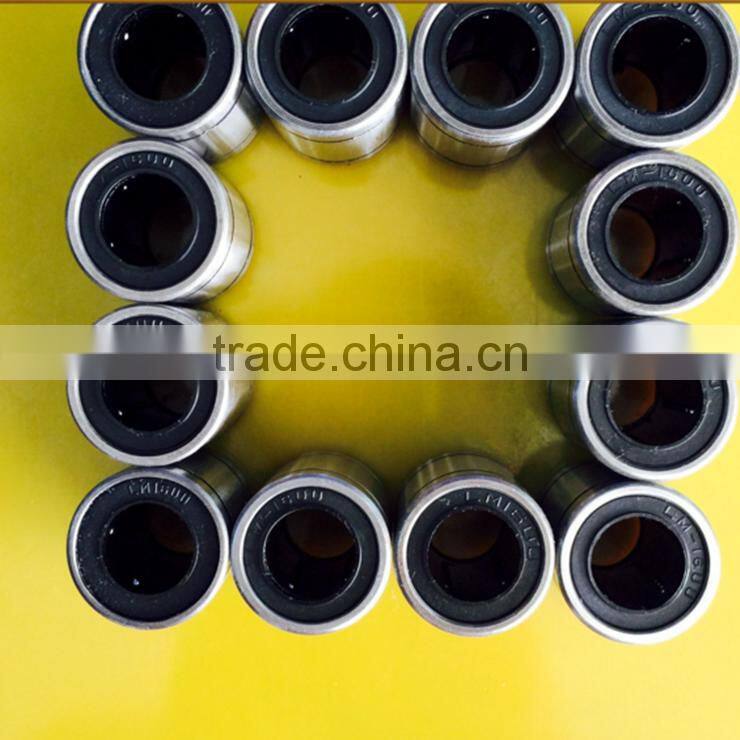

Cheap Linear Motion Bearing LM3UU LM8UU LM12UU LM80UU
Specification: 12X21X30
Precision standard: GB
Shield type: POM
Material incoming: 100% inspection
Hardness test: 100% pass
Features
LM Case Unit, SC type is consist of the light Aluminum case and LM type Linear Bushing, so the assembly can be finished by simple bolting. Longer life can be obtained by adjusting the Ball circuit orientation of Linear Bushing against the direction of load.
Application
SAMICK Linear Bushing are widly used in Precision equipments; Computer and peripheral equipments, Measuring equipments, Auto recording equipments, and 3D measuring equipments, and Linear Motion systems in Machine for Mass Prodution; Multi-Axis Drilling machines, Punching Press, Tool Grinders, Auto-Gas cutters, printing machines, card selectors, food packing machines, and etc.

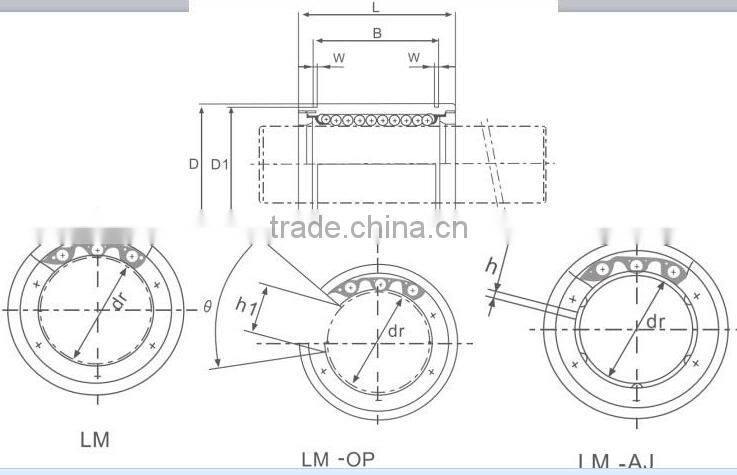

Datasheet
| Model | Ball circuit | Inner size | Outer size | Length | Snapring groove | ||
| dr | D | L | B | D1 | W | ||
| LM6UU | 4 | 6 | 12 | 19 | 13.5 | 11.5 | 1.1 |
| LM8UU | 4 | 8 | 15 | 17 | 11.5 | 14.3 | 1.1 |
| LM8UU | 4 | 8 | 15 | 24 | 17.5 | 14.3 | 1.1 |
| LM10UU | 4 | 1 0 | 19 | 29 | 22 | 18 | 1.3 |
| LM12UU | 4 | 1 2 | 21 | 30 | 23 | 20 | 1.3 |
| LM13UU | 4 | 1 3 | 23 | 32 | 23 | 22 | 1.3 |
| LM16UU | 5 | 1 6 | 28 | 37 | 26.5 | 27 | 1.6 |
| LM20UU | 5 | 2 0 | 32 | 42 | 30.5 | 30.5 | 1.6 |
| LM25UU | 6 | 2 5 | 40 | 59 | 41 | 38 | 1.85 |
| LM30UU | 6 | 3 0 | 45 | 64 | 44.5 | 43 | 1.85 |
| LME8UU | 4 | 8 | 16 | 25 | 16.5 | 15.2 | 1.1 |
| LME10UU | 4 | 1 0 | 19 | 29 | 22 | 18 | 1.3 |
| LME12UU | 4 | 1 2 | 22 | 32 | 22.9 | 21 | 1.3 |
| LME16UU | 5 | 1 6 | 26 | 36 | 24.9 | 24.9 | 1.3 |
| LME20UU | 5 | 2 0 | 32 | 45 | 31.5 | 30.3 | 1.6 |
Company introduce
ChangshaTerry Machinery Co.,Ltd is a leading international trading company. The growing economics and convenient transportation of Changsha benefits the development of Terry Machinery.
Our products are utilized in commercial, industrial and custom application. Terry Machinery is specialized in engineering machinery bearing and vehicle industrial bearing. Our products have been exported over 46 countries.
The goal of Terry Machinery is to provide out customers with widest range of bearing at lowest price, backed with the best service.
FAQ
1. Do you like to accept small orders?
We enjoy to grow up together with all our clients, whatever big or small. You will become bigger and bigger to be with us.
2. Will you send me free sample?
Yes
3. Could you accept OEM and customization?
YES, we can customize for you according to sample or drawing.
4. Is it your company factory or Trade Company?
We have our own factory and you welcome to come and visit.
5. Do your factory have CE?
Yes, we have ISO 9001, If you want other CE, we can do for you.
6. Could you tell me the packing of your goods?
Single plastic bag—put in single box—put in carton or wooden case—at last packing in pallet.
7. Could you tell me the payment term of your company can accept?
We accept the TT, Pyapal, Western union, alibaba. The custome can choose the way to delivery their goods by sea or Air. We will do our best to serve our customers.
8. Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
9. Can you give me discount on bearing?
Yes, of course. Pls. send me your Email, you’ll get more.
