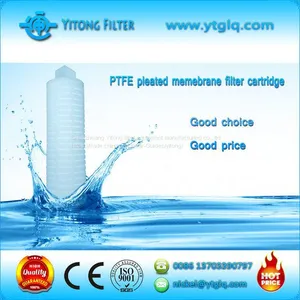

PTFE Pleated Membrane Filter Cartridge
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Yitong
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PP Pleated Membrane Filter Cartridge 2016NegotiableMOQ: 500 Pieces -
Fiberglass Pleated Membrane Filter CartridgeNegotiableMOQ: 500 Pieces
-
Nylon Pleated Membrane Filter CartridgeNegotiableMOQ: 500 Pieces
-
PVDF Pleated Membrane Filter CartridgeNegotiableMOQ: 500 Pieces
-
Filter Bags & Filter CartridgesNegotiableMOQ: 2500 Pieces
Brand Name
Yitong
Place of Origin
China
Quick Information
Place of Origin:China
Description
Product type guide
YTPTFEQ Series—hydrophilic PTFE pleated filter cartridge
Product Description
YTPTFEQ Series filter cartridge adopts hydrophilic PTFE filter membrane as filtration medium. No need to soak wet, can filter directly. The product has excellent corrosion resistance, oxidation resistance, organic solvent resistance, can filter all kinds of corrosive liquid.
Performance features
High pass volume, low pressure difference.
Good acid and alkali resistance.
Widely applicability, chemical compatibility, good resistance to oxidation
Products by 100% integrity test before delivery.
Application
Solvent sterilization filtration.
Corrosive liquid sterilization filtration.
Strong oxidizing liquid sterilization filtration.
Technical parameter
Product type guide
YTPTFEQ Series—hydrophilic PTFE pleated filter cartridge
Product Description
YTPTFEQ Series filter cartridge adopts hydrophilic PTFE filter membrane as filtration medium. No need to soak wet, can filter directly. The product has excellent corrosion resistance, oxidation resistance, organic solvent resistance, can filter all kinds of corrosive liquid.
Performance features
High pass volume, low pressure difference.
Good acid and alkali resistance.
Widely applicability, chemical compatibility, good resistance to oxidation
Products by 100% integrity test before delivery.
Application
Solvent sterilization filtration.
Corrosive liquid sterilization filtration.
Strong oxidizing liquid sterilization filtration.
Technical parameter
Product type guide
YTPTFES Series—hydrophobic PTFE pleated filter cartridge
Product Description
YTPTFES Series filter cartridge adopts hydrophobic PTFE filter membrane as filtration medium. PTFE membrane has natural hydrophobic ability, No matter under dry or wet conditions, it can achieve good filtration efficiency, and membrane material itself can tolerance high pressure sterilization and steam sterilization many times.
Performance features
High pass volume, low pressure difference.
Stable interception efficiency.
Products by 100% integrity test before delivery.
Application
Compressed air sterilization filtration, biological reactor feeding air sterilization filtration.
Fermentation industry air sterilization filtration.
Technical parameter
| Filter cartridge structure | Filter area | 0.6㎡ |
| Filter membrane | Hydrophobic PTFE | |
| Guide layer | Nonwoven | |
| Inner support、cap、shell | PP, stainless steel | |
| Seal ring material | Silicone rubber、Viton、EPDM、PTFE | |
| Working situation | Working temperature | ≤90℃ |
| Maximum working pressure difference （Forward direction） |
0.4Mpa/23℃ | |
| 0.21Mpa/80℃ | ||
| Bubble point (23℃ alcohol) | 0.1um≥0.1Mpa | |
| 0.22um≥0.8Mpa | ||
| Sterilization | 121℃/30min steam sterilization |
Product type guide
| YTPTFE | Filtration Accuracy | Length | Connection Type | Seal ring material |
| 0010=0.1μm | 05=5" | 2=222 | S=Silicone rubber | |
| 10=10" | 6=226 | E=EPDM | ||
| 20=20" | 15=215 | P=PTFE | ||
| 30=30" | DOE/SOE=Flat head with gasket | V=Viton | ||
| 40=40" | 2G=222 steel lining | |||
| 6G=226 steel lining |
YTPTFEQ Series—hydrophilic PTFE pleated filter cartridge
Product Description
YTPTFEQ Series filter cartridge adopts hydrophilic PTFE filter membrane as filtration medium. No need to soak wet, can filter directly. The product has excellent corrosion resistance, oxidation resistance, organic solvent resistance, can filter all kinds of corrosive liquid.
Performance features
High pass volume, low pressure difference.
Good acid and alkali resistance.
Widely applicability, chemical compatibility, good resistance to oxidation
Products by 100% integrity test before delivery.
Application
Solvent sterilization filtration.
Corrosive liquid sterilization filtration.
Strong oxidizing liquid sterilization filtration.
Technical parameter
| Filter cartridge structure | Filter area | 0.6㎡ |
| Filter membrane | Hydrophilic PTFE | |
| Guide layer | Nonwoven | |
| Inner support、cap、shell | PP, stainless steel | |
| Seal ring material | Silicone rubber、Viton、EPDM、PTFE | |
| Working situation | Working temperature | ≤90℃ |
| Maximum working pressure difference （Forward direction） |
0.4Mpa/23℃ | |
| 0.21Mpa/80℃ | ||
| Bubble point (23℃ alcohol) | 0.1um≥0.1Mpa | |
| 0.22um≥0.8Mpa | ||
| Sterilization | 121℃/30min steam sterilization |
Product type guide
| YTPTFE | Filtration Accuracy | Length | Connection Type | Seal ring material |
| 0010=0.1μm | 05=5" | 2=222 | S=Silicone rubber | |
| 0022=0.22μm | 10=10" | 6=226 | E=EPDM | |
| 0045=0.45μm | 20=20" | 15=215 | P=PTFE | |
| 30=30" | DOE/SOE=Flat head with gasket | V=Viton | ||
| 40=40" | 2G=222 steel lining | |||
| 6G=226 steel lining |
YTPTFEQ Series—hydrophilic PTFE pleated filter cartridge
Product Description
YTPTFEQ Series filter cartridge adopts hydrophilic PTFE filter membrane as filtration medium. No need to soak wet, can filter directly. The product has excellent corrosion resistance, oxidation resistance, organic solvent resistance, can filter all kinds of corrosive liquid.
Performance features
High pass volume, low pressure difference.
Good acid and alkali resistance.
Widely applicability, chemical compatibility, good resistance to oxidation
Products by 100% integrity test before delivery.
Application
Solvent sterilization filtration.
Corrosive liquid sterilization filtration.
Strong oxidizing liquid sterilization filtration.
Technical parameter
| Filter cartridge structure | Filter area | 0.6㎡ |
| Filter membrane | Hydrophilic PTFE | |
| Guide layer | Nonwoven | |
| Inner support、cap、shell | PP, stainless steel | |
| Seal ring material | Silicone rubber、Viton、EPDM、PTFE | |
| Working situation | Working temperature | ≤90℃ |
| Maximum working pressure difference （Forward direction） |
0.4Mpa/23℃ | |
| 0.21Mpa/80℃ | ||
| Bubble point (23℃ alcohol) | 0.1um≥0.1Mpa | |
| 0.22um≥0.8Mpa | ||
| Sterilization | 121℃/30min steam sterilization |
Product type guide
| YTPTFE | Filtration Accuracy | Length | Connection Type | Seal ring material |
| 0010=0.1μm | 05=5" | 2=222 | S=Silicone rubber | |
| 0022=0.22μm | 10=10" | 6=226 | E=EPDM | |
| 0045=0.45μm | 20=20" | 15=215 | P=PTFE | |
| 30=30" | DOE/SOE=Flat head with gasket | V=Viton | ||
| 40=40" | 2G=222 steel lining | |||
| 6G=226 steel lining |
Packaging & Delivery
Minimum Order :500pcs
Supply Ability :20000pcs/month
