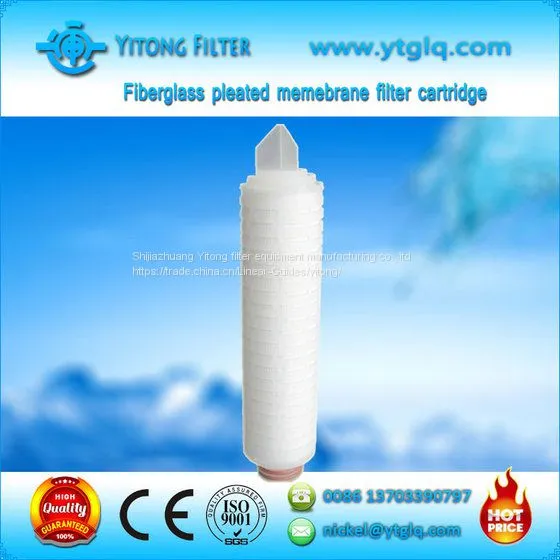

Fiberglass Pleated Membrane Filter Cartridge
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Yitong
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Nylon Pleated Membrane Filter CartridgeNegotiableMOQ: 500 Pieces -
PVDF Pleated Membrane Filter CartridgeNegotiableMOQ: 500 Pieces
-
PTFE Pleated Membrane Filter CartridgeNegotiableMOQ: 500 Pieces
-
PP Pleated Membrane Filter Cartridge 2016NegotiableMOQ: 500 Pieces
-
Filter Bags & Filter CartridgesNegotiableMOQ: 2500 Pieces
Brand Name
Yitong
Place of Origin
China
Quick Information
Place of Origin:China
Description
Product type guide
YTGFA Series—Glass fiber air filter cartridge
Product Description
YTGFA series filter cartridge adopts composite glass fiber filter membrane, use long fiber composite non-woven as protection layer, prevent fall off, which causing secondary pollution.
Performance features
Application
Technical parameter
Product type guide
YTGFL Series—Glass fiber liquid filter cartridge
Product Description
YTGF series filter adopts superfine glass fiber materials, with large pollutants holding capacity and the inherent adsorption ability, especially suitable for filtering with colloid, oils and high content of liquid with particulate matter. Made of super fine glass fiber, low starting pressure difference, high flow capacity, long service life, interception efficiency can reach above 98%.
Performance features
limited dissolved matter， high adsorption effect.
Application
Environmental waste water filtration, ink filtration, oil field water injection filtration, wine, soft drinks filtration
Technical parameter
| Filter cartridge structure | Filter area | 0.6㎡ |
| Filter membrane | Glass fiber | |
| Guide layer | Imported Nonwoven | |
| Inner support、cap、shell | PP, stainless steel | |
| Seal ring material | Silicone rubber、Viton、EPDM、PTFE | |
| Outer diameter | 50mm、68mm | |
| Working situation | Working temperature | ≤90℃ |
| Maximum working pressure difference（Forward direction） | 0.4Mpa/23℃ |
Product type guide
| YTGF | Filtration Accuracy | Length | Connection Type | Seal ring material |
| 0030=0.3μm | 05=5" | 2=222 | S=Silicone rubber | |
| 0050=0.5μm | 10=10" | 6=226 | E=EPDM | |
| 0100=1μm | 20=20" | 15=215 | P=PTFE | |
| 0300=3μm | 30=30" | DOE/SOE=Flat head with gasket | V=Viton | |
| 0500=5μm | 40=40" | 2G=222 steel lining | ||
| 1000=10μm | 6G=226 steel lining |
YTGFA Series—Glass fiber air filter cartridge
Product Description
YTGFA series filter cartridge adopts composite glass fiber filter membrane, use long fiber composite non-woven as protection layer, prevent fall off, which causing secondary pollution.
Performance features
Limited dissolved matter, high adsorption features.
Application
Pre-filtration of compressed air.
Technical parameter
| Filter cartridge structure | Filter area | 0.6㎡ |
| Filter membrane | Glass fiber | |
| Guide layer | Imported Nonwoven | |
| Inner support、cap、shell | PP, stainless steel | |
| Seal ring material | Silicone rubber、Viton、EPDM、PTFE | |
| Working situation | Working temperature | ≤90℃ |
| Maximum working pressure difference （Forward direction） |
0.4Mpa/23℃ |
Product type guide
| YTBX | Filtration Accuracy | Length | Connection Type | Seal ring material |
| 0030=0.3μm | 05=5" | 2=222 | S=Silicone rubber | |
| 0050=0.5μm | 10=10" | 6=226 | E=EPDM | |
| 0100=1μm | 20=20" | 15=215 | P=PTFE | |
| 0300=3μm | 30=30" | DOE/SOE=Flat head with gasket | V=Viton | |
| 0500=5μm | 40=40" | 2G=222 steel lining | ||
| 1000=10μm | 6G=226 steel lining |
Price
Price Condition :FOB
Delivery Port :Tianjin
Packaging & Delivery
Minimum Order :500pcs
Supply Ability :20000pcs/month
