Home > Products > Teabag Packing Machine > Inner and outer tea bag vacuum packing machine
Inner and outer tea bag vacuum packing machine
- 100 Set / Sets per Month
- Shanghai
- T/T L/C Other
- 30 days
- Maquillageplastic sealing heat shrink packaging machine Seal and shrink the film packaging machine
- Express deliverybox packing and paste sheet packing machine Box sealing and paste single package all-in-one machine
- Maquillagemembrane packing machine
- Bookseal the heat-shrink packaging machine Seal and shrink the film packaging machine
- Automatic Screw Counting Packing Machine
- Maquillagemembrane packing machine Gift packageseal and cut the packaging machine
Product Details
Brand Name: | Qindian | Place of Origin: | China | Model Number: | QD-48-11 |
Certification: | CE certificate | After-sales Service Provided: | Engineers available to service machinery overseas | Dimension(L*W*H): | 700*600*1530mm |
Voltage: | 220V | Power: | 2.2Kw | Function: | Filling, Sealing, Wrapping |
Application: | Beverage, Chemical, Food, Medical | Condition: | New | Automatic Grade: | Automatic |
Driven Type: | Mechanical | Packaging Material: | Plastic | Packaging Type: | Film, Pouch |
Product Description

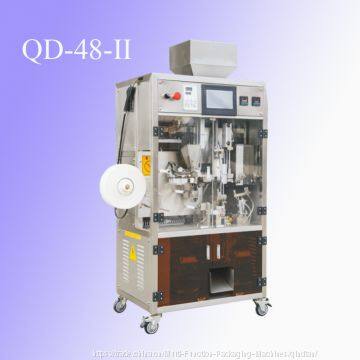

QD-48II Inner and outer bag vacuum packing machine
Applications
This machine is used for packing No-sticky granule such as black tea, Oolong tea ,food chemical and medicine ..etc
Features
1) With function of tea inner bag vacuum packing
2) Vacuum time, sealing time, length and width of vacuum package, length of inner package, sealing position …etc are can be adjusted
3) The sealing temperature controller is adjusted by PID , ensure each package sealing flatly, increase yield
4) Overall machine movement was controlled by PLC,human-machine interface ,easy to operate.
5) Simple structure ,reasonable layout, intelligence, science and technology, high gold content
6) High stability, simple appearance,packing effect is much higher than artificial packing
7) Automatic defensive function,manual detection,can be equipped multifunction such as date printing.
8) Inner bag is cutted by sealing blades, and made into original round opening inner bag. It does not produce any intermixed taste such as flue gas into the tea, to ensure the quality of tea
Performance Parameter
Bag size | (W)50-58(mm); (L) 105-130(mm) |
Capacity | 8bag/min |
Filling range | 2-15 g |
Power | 220V/ 50HZ/ 1.8KW |
Gas power | 0.6mpa |
Air consumption | 0.30m3/min |
Total weight | 150 KG |
Dimension | 700*550*1300mm |
