Home > Products > Teabag Packing Machine > Automatic triangle tea bag packing machine
Automatic triangle tea bag packing machine
- 100 Set / Sets per Month
- Shanghai
- T/T L/C Other
- 30 days
- Maquillageplastic sealing heat shrink packaging machine Seal and shrink the film packaging machine
- Express deliverybox packing and paste sheet packing machine Box sealing and paste single package all-in-one machine
- Maquillagemembrane packing machine
- Bookseal the heat-shrink packaging machine Seal and shrink the film packaging machine
- Automatic Screw Counting Packing Machine
- Maquillagemembrane packing machine Gift packageseal and cut the packaging machine
Product Details
Brand Name: | Qindian | Place of Origin: | China | Model Number: | QD-20A |
Certification: | CE certificate | After-sales Service Provided: | Engineers available to service machinery overseas | Dimension(L*W*H): | 800*700*2000mm |
Voltage: | 220V | Power: | 1.1Kw | Function: | Filling, Sealing, Wrapping |
Application: | Beverage, Food, Medical | Condition: | New | Automatic Grade: | Automatic |
Driven Type: | Mechanical | Packaging Material: | Paper | Packaging Type: | Bags, Film, Pouch |
Product Description
QD-20A Full automatic triangle tea-bag packing machine
Main Features:
1) Ultrasound sealing, make the tea bag beautiful.
2) The capacity can reach 2000-2400bags/hour.
3) The material with tag can make the tea bag with tag.
4) Slip volume measurement can change the infilling easily.
5) According to customer's tea to choose electronic scale.
6) Pneumatic Components adopt Japan SMC, Electric components adopt Germany Schneider.
7) PLC controller, touch-screen system, both are international famous brand, make the performance more stable, easy to operate, more humanity.

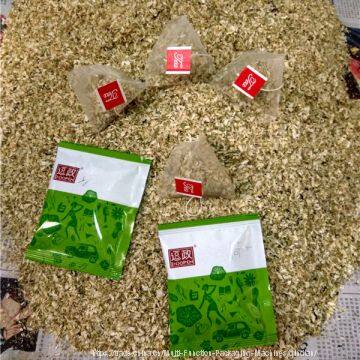

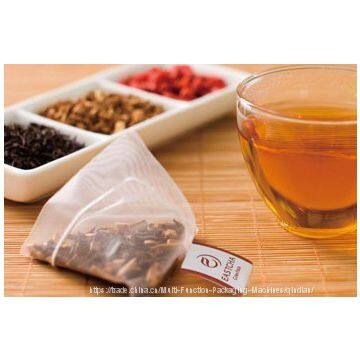

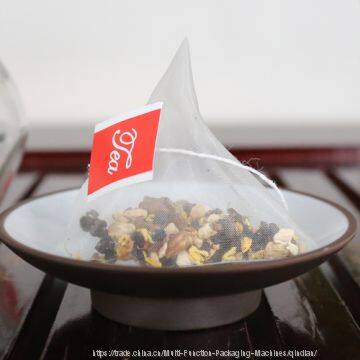

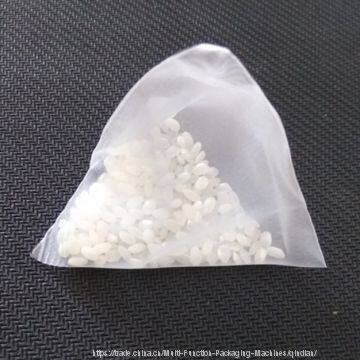

Nylon triangle tea bag adopts the imported environmental nylon, weaving cloth material from Japan, which is of sense of high quality food class filter material without poison and bacteria, with heat-resistance approved by China safety inspection, the single color printing of pulling paper on packing is made from imported poisonless ink from Japan suitable for food, and could100%recyclr and reduce the environmental pollution. Of which the sealing take use of unique method-ultrasonic mark sealing, tight, sanitary, safety, reducing abundant sealing width, without wasting filter material, this plastic high quality sense of tea bag image is more natural and delicated fragrance compared with common tea bag, which is more beautiful and high level, and it is more easy for public to accept.
Comparing with common tea bag, this tea bag could extend itself quickly after immerse in hot water, preserving the original taste, delicate fragrance and natural, do not hurt tea bag, could immerse for many times, featuring the stout of material and it is not easy to tear off, the design of transparent net makes the taste of tea plays more completely, the consumer could see the appearance, smell the fragrance, look the color, taste and check tea with original taste just like the fresh tea, let the taste not restricted in container, you could enjoy more convenient modern life at any time and place. The choice of volume measurement, and electronic scales measuring.
Produce speed | 35-40bags/min |
Tea content | ≤3±0.5 g/bag |
Tea request | Tea length≤15㎜,assumes the platy, otherwise the weighing precision will drop. |
Bag paper request | Label line nylon or adhesive-bonded cloth(picture sample will be enclosed) |
Roll quantity | 1 |
Rolled paper core inside diameter | Φ76㎜ |
Rolled outer diameter | ≤Φ400㎜ |
Seal cutting | World newest craft electricity pulse to seal cuts |
Seal cutting equipment | 2 sets |
Standard electric appliance configure | Pneumatic element, button, exchange contact device |
Source pressure | ≥0.6Mpa |
Motor power | Approximately 1.1kw(380v) |
Operate person | 1 |
Machine size | L800*W700*H2000(mm) |
Machine weight | 300kg |
