PP hollow sheet extrusion line

PP hollow sheet making machine, PP hollow sheet extrusion machine, PP corrugated sheet making machine, PP corrugated sheet extruder

1. Introduction of the PP PE hollow sheet extruder machine

PE/PP hollow grid plate is an ideal substitute for paper box in making packaging box. It is characterized by light weight, high intensity, dampproof, and anticorrosion. The width of the products is 1220-2100mm, and the thickness is 2mm-12mm.

2. Consists and Features of the PP PE hollow sheet extrusion machine

Extruder:The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.

Screen changer:Quick screen changer of hydraulic system ensures the short course of screen changing. Double-position combined with special sealing structure guarantee stable operation of screen changer.

Mould:Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.

Vacuum calibrating table:Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.

Hauling off machine:There are two tractors. The first one is high power, high reduction ratio, multi-roller type, well low-speed operation, high traction and is able to draw the plate up from the calibrating table evenly and synchronal. The second one is designed to remove stress, and in addition it is equipped with edge-cutting device to ensure the valid width and smooth cut of the edges.

Anneal oven:The advanced large area conductive heating mode can effectively remove the stress of plate and further improve planeness of the plate.

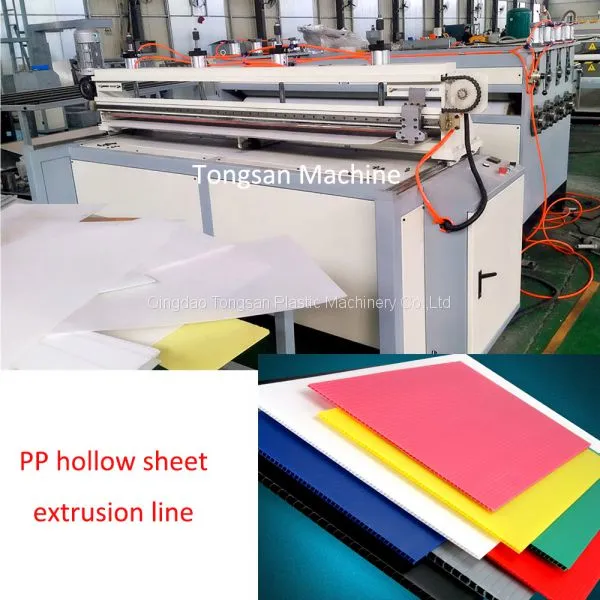

Cutting machine:Accurate instant length-fixed cutting and automatic up-down discharging system combined with alloy steel sharp blade realize high quality of cutting.

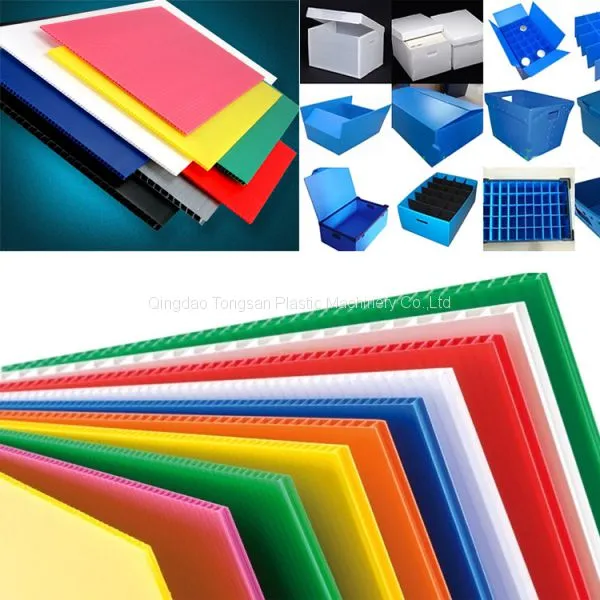

3. Samples and application of the PP hollow sheet

Polypropylene hollow sheet(PP hollow sheet) is one of the packaging material which is most flexibility and widely used.
The main component of the PP hollow plate is polypropylene, which is a highly pure hydrocarbon, non-toxic, anti-chemical, combustible, no hazardous substances and environment friendly.
In addition to paper products, Tri-Wall also has our own PP hollow board production line for providing the best packaging solution according to different situations.

salerjack at tongsanextruder dot com
