Super Arch Marine Rubber Yacht Fender

Super Arch Marine Rubber Yacht Fender thumbnail-1
Super Arch Marine Rubber Yacht Fender thumbnail-2
Super Arch Marine Rubber Yacht Fender thumbnail-3
Super Arch Marine Rubber Yacht Fender thumbnail-4
Super Arch Marine Rubber Yacht Fender photo-1
Super Arch Marine Rubber Yacht Fender photo-2
Super Arch Marine Rubber Yacht Fender photo-3
Super Arch Marine Rubber Yacht Fender photo-4
US$ 960 - 1000 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Fendersys
Place of Origin:
China
Model Number:
A300Hx1000
Contact Supplier Request Quote Chat Now
Liaoning Qingyuan NO.1 Buffer Manufacture Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Fendersys
Place of Origin China
Model Number A300Hx1000

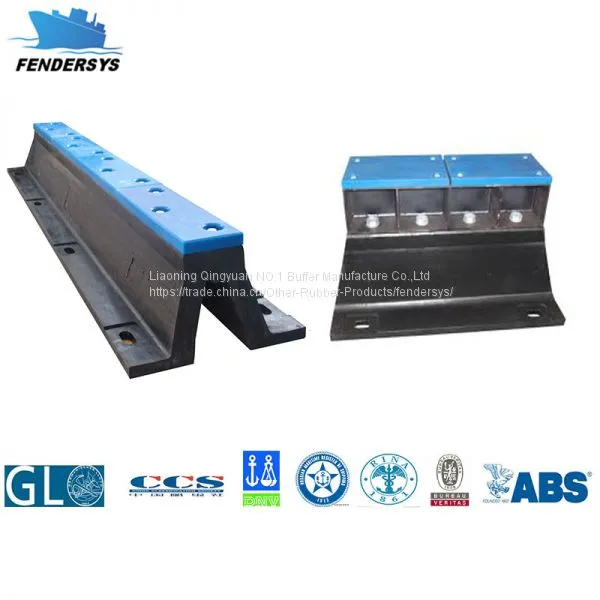

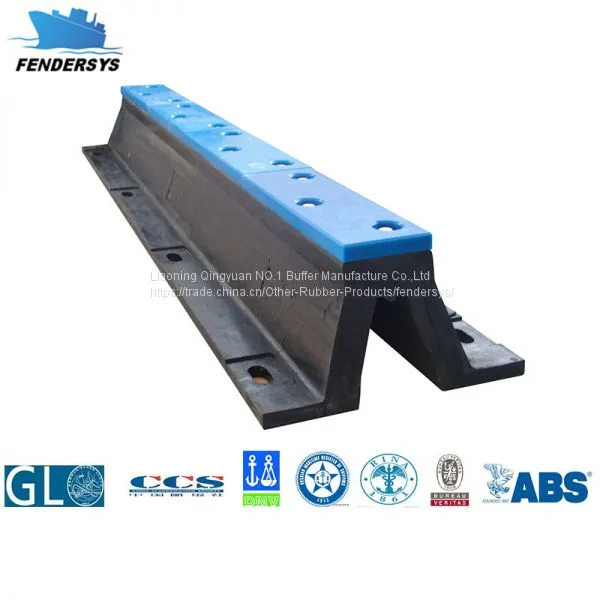

Product Introduction of Super Arch rubber fender
Super Arch rubber fender are new generation of V type fenders, it is simple and rubbed which make them can be used in different conditions. Super arch rubber fender can be fitted with either UHMW-PE Pads or connected to steel panels;


Application of Super Arch rubber fender

  1. General cargo berths;

  2. Ship to ship berths;

  3. Ship to dock berths;

  4. Work-boat harbors;

  5. Barge and tug berths;

Features of Super Arch rubber fender

  1. With high energy absorption, low reaction force;

  2. Reasonable structure, with long life span;

  3. Easy to installation;

  4. Can be fitted with frontal panels, protect fenders;

  5. Large range of standard sizes, meet various design conditions;

Specification of Super Arch rubber fender

Fender size Dimension

H L B L1 B1 B2 c P d e f h n
SA-A300*225*1000 300 1000 225 1150 600 490 140 870 35 105 140 33 2
SA-A300*225*1500 300 1500 225 1650 600 490 140 685 35 105 140 33 3
SA-A300*225*2000 300 2000 225 2150 600 490 137.5 625 35 105 140 33 4
SA-A300*225*2500 300 2500 225 2650 600 490 140 790 35 105 140 33 4
SA-A300*225*3000 300 3000 225 3150 600 490 145 715 35 105 140 33 5
SA-A300*225*3500 300 3500 225 3650 600 490 140 674 35 105 140 33 6
SA-A400*300*1000 400 1000 300 1200 800 670 150 900 41 120 165 40 2
SA-A400*300*1500 400 1500 300 1700 800 670 150 700 41 120 165 40 3
SA-A400*300*2000 400 2000 300 2200 800 670 147.5 635 41 120 165 40 4
SA-A400*300*2500 400 2500 300 2700 800 670 150 800 41 120 165 40 4
SA-A400*300*3000 400 3000 300 3200 800 670 150 725 41 120 165 40 5
SA-A400*300*3500 400 3500 300 3700 800 670 150 680 41 120 165 40 6
SA-A500*375*1000 500 1000 375 1250 1000 840 160 930 47 140 180 45 2
SA-A500*375*1500 500 1500 375 1750 1000 840 160 715 47 140 180 45 3
SA-A500*375*2000 500 2000 375 2250 1000 840 157.5 645 47 140 180 45 4
SA-A500*375*3000 500 3000 375 3250 1000 840 165 730 47 140 180 45 5
SA-A500*375*3500 500 3500 375 3750 1000 840 160 686 47 140 180 45 6
SA-A600*450*1000 600 1000 450 1300 1200 1010 170 960 50 160 195 54 2
SA-A600*450*1500 600 1500 450 1800 1200 1010 170 730 50 160 195 54 3
SA-A600*450*2000 600 2000 450 2300 1200 1010 167.5 655 50 160 195 54 4
SA-A600*450*2500 600 2500 450 2800 1200 1010 170 820 50 160 195 54 4
SA-A600*450*3000 600 3000 450 3300 1200 1010 170 740 50 160 195 54 5
SA-A600*450*3500 600 3500 450 3800 1200 1010 170 692 50 160 195 54 6
SA-A800*600*1000 800 1000 600 1400 1600 1340 180 1040 68 260 270 72 2
SA-A800*600*1500 800 1500 600 1900 1600 1340 180 770 68 260 270 72 3
SA-A800*600*2000 800 2000 600 2400 1600 1340 182.5 680 68 260 270 72 4
SA-A800*600*2500 800 2500 600 2900 1600 1340 180 845 68 260 270 72 4
SA-A800*600*3000 800 3000 600 3400 1600 1340 180 760 68 260 270 72 5
SA-A1000*750*1000 1000 1000 750 1500 2000 1680 200 1100 68 300 290 90 2
SA-A1000*750*1500 1000 1500 750 2000 2000 1680 200 800 68 300 290 90 3
SA-A1000*750*2000 1000 2000 750 2500 2000 1680 200 700 68 300 290 90 4


Company Introduction
Liaoning Qingyuan NO.1 Buffer Manufacture Co.,Ltd is a leading cooperation that sell marine fenders world widely. Marine fenders are a critical element of any commercial marine docking facility and provide the necessary protection between a large vessel and the docking structure itself. Here is a team packed with experienced and young professionals who have a wealth of relative knowledge, insights of the market and great sense of services.
These comprehensive fenders providing are from our seasoned factory of marine fenders established in 1986 that covers an area of 30,000 square meters, construction area of 12,000 square meters located in Northeast China. Adhering to the personality characteristics of the founder, fenders from our company are made up of 100% natural rubber that leads to excellent quality, due to we deeply know we are providing highly safety-sensitive items to people, vessels and harbor facilities. In recent years, complying with international standards, the company is enhancing the products research and development capacity. With R &D personnel's painstaking, gladly new Super Cell Fender and Super Arch Fender are upgraded from their oridinary versions cell fender and V fender, with strength on energy absorption to reaction force ratio increased 15% and 23.5%.
As you may understood now, Marine Fender System is capable to serve you not only innovative products with excellent quality but also fair prices, what make us win the bidding in domestic ports construction and renovation projects. Our marine fenders are utilized by a variety of clientele within several industries to include: ports and harbors, municipalities, private facilities and government/military facilities, e.g. Dalian Port, Qingdao Port and Ningbo Port, as well as facilities in the UK and USA.

Our service
1. One to one VIP Service;
2. Lifelong after-sale service;
3. Professional suggestions for suitable size and quantity;
4.Teach customers how to install the goods on site;
5. Any questions will be replied within 24 hours;
6. Warranty products with 20 years;
Contact Information
Contact person: Demi Jia

Phone+86 18751950876
