Home > Products > D type fender > D type marine rubber fender
D type marine rubber fender
- Dalian
- T/T L/C D/P D/A Credit Card PayPal Other
- 15 days
You May Like
Product Details
| Brand Name | Fendersys | Place of Origin | China | |
| Model Number | D-01 |
Product Description
1.Instruction of D type rubber fender:D type fenders are simple rubber fender profiles, usually attached with bolts to the structure. Any length can be available for these extruded fenders, then cut and drilled to suitable applications;2.Features:
Suitable reaction force, with higher energy absorption than Cylindrical rubber fender;Easy to install and maintain;Applicable for frame dock and ship due to the smaller bottom width;Any length could be available
3.Applications:

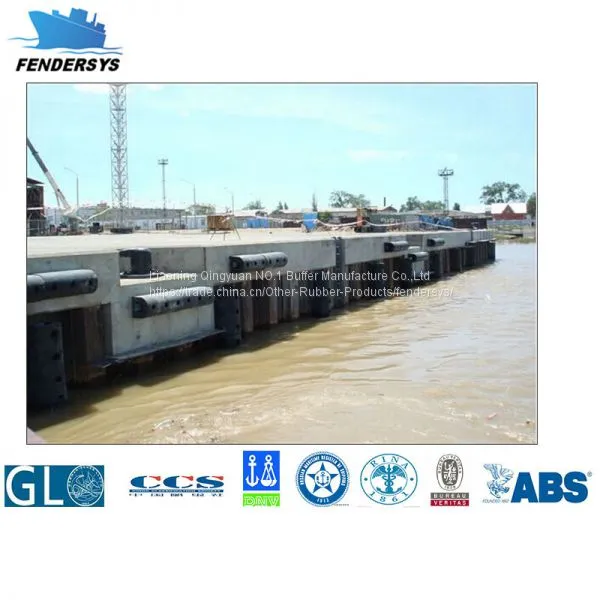

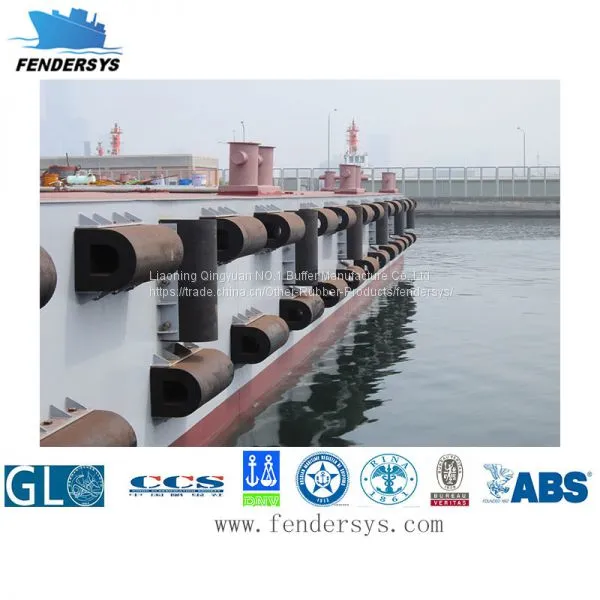

Jetties and wharves for small craft;Tugs and workboats;Pontoon protection;Inland waterways;General purpose fendering;
4.Specification:
| Fender size | Dimension | 50% Deflection | |||||||||
| H | B | L | n | P | a | h | D | d | R(KN) | E(KN.M) | |
| D300x300x850-3z | 300 | 300 | 850 | 3 | 325 | 100 | 40 | 65 | 32 | 255 | 10 |
| D300x300x900-2z | 300 | 300 | 900 | 2 | 600 | 150 | 40 | 65 | 32 | 270 | 10.6 |
| D300x300x1500-3z | 300 | 300 | 1500 | 3 | 600 | 150 | 40 | 65 | 32 | 450 | 17 |
| D300x300x1500-4z | 300 | 300 | 1500 | 4 | 400 | 150 | 40 | 65 | 32 | 450 | 17 |
| D300x300x1500-5z | 300 | 300 | 1500 | 5 | 325 | 100 | 40 | 65 | 32 | 450 | 17 |
| D300x300x2000-4z | 300 | 300 | 2000 | 4 | 500 | 250 | 50 | 65 | 32 | 600 | 22 |
| D300x360x850-3z | 300 | 360 | 850 | 3 | 325 | 100 | 45 | 65 | 32 | 276 | 11 |
| D300x360x1500-5z | 300 | 360 | 1500 | 5 | 325 | 100 | 45 | 65 | 32 | 490 | 20 |
| D400x360x1500-4z | 400 | 400 | 1500 | 4 | 400 | 150 | 65 | 65 | 42 | 490 | 20 |
| D500x500x850-3z | 500 | 500 | 850 | 3 | 325 | 100 | 90 | 97 | 45 | 395 | 27 |
| D500x500x1500-5z | 500 | 500 | 1500 | 5 | 325 | 100 | 90 | 97 | 45 | 700 | 48 |
5.Contact Information:
