Impact Crusher Stone Crusher for Sale

Contacts:

WhatsApp: +8613223066055; Email: sales@sinolingheng.com

ADVANTAGES OF IMPACT CRUSHER

1. Impact crusher has a blow bar that has very high chrome.

2. Impact crusher makes a very simple flow chart of crushing material.

3. Impact crusher has an ability to crush hard rocks.

4. It has high efficiency.

5. Easy hydraulic operation.

TYPES OF IMPACT CRUSHER

1. Horizontal shaft impactor

2. Vertical shaft impactor

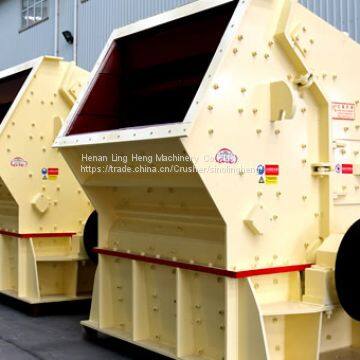

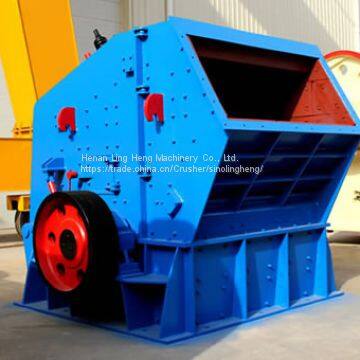

HORIZONTAL SHAFT IMPACTOR (HSI)

Horizontal Shaft Impact crusher has stationary impact crusher and portable impact crusher. Horizontal Shaft Impact crusher(SYHSI Series) is widely used for sand and rock producing in the industry of roads, railways, reservoir, electricity power and building materials and so on with cubical shape.

Impact crushers (SYHSI Series) can produce cubic products with very good grain shape, adopting the latest manufacturing technology and unique structure design. Horizontal Shaft Impact crusher can crush each kind of coarse, medium, fine cubic material (granite, limestone and concrete etc.) and is widely applied to secondary and tertiary crushing of various ores and medium- hard materials in railway, highway, energy, cement, chemical industry construction etc.

Horizontal Shaft Impact crusher Working Principle

Horizontal Shaft Impact crusher use impact energy to crush materials. Driven by the motor, the rotor revolves at a high speed. Revolving blow bars in the rotor blow the materials. Then the materials will be thrown to the impact plates for secondary crushing. The materials will be shot back to the blow bars again. This process repeats until the materials are crushed to the required size and discharged through the discharging opening at the bottom of the machine. Adjusting the gap between the impact rack and rotor support, the size and shape of the end products can be changed

Horizontal Shaft Impact crusher Benefits and Features

Impact crusher is with unique simple structure

Impact crusher is with high-chromium or High manganese hammer and special impact liner plate

Impact crusher is capable of highly efficient hard rock crushing while saving energy

Impact crusher has cubical shaping final products, the product size is adjustable to simplify the crushing circuit

Impact crusher can get easy maintenance and reliable performance

Impact crusher can replace wearing parts easily

VERTICAL SHAFT IMPACTOR (VSI)

Working principle of vertical shaft impactor is totally different than horizontal shaft impactor. It has a high speed rotor with wearing resistant tips and main chamber (crushing chamber) is designed in such a way so that speed rotor throw the rocks against the high crushing chamber. In vertical shaft impactor crusher predominant force is the velocity of speed rotor.

VSI crushers namely Vertical Shaft Impact Crusher are widely applied in various quarries, mines and construction sites, especially for road & building, hydropower station, bridge and tunnel for crushing and shaping aggregates and sands.

Vertical Shaft Impact Crusher is highly recommended when it comes to the shaping of gravels used in high strength concrete. In the fine crushing section, VSI Crusher is the substitute of impact crusher, and it is much better in terms of main performance indexes.

VSI crusher is a high-efficiency rock crushing equipment with home and international leading level. It is widely used for crushing of hard and brittle materials, such as rock, grinding material, refractory material, cement clinker, quartzite, iron ore and concrete aggregate and especially suitable for sand making for construction and road paving as sand maker. VSI crushers are especially very excellent crushing machines for shaping purpose.

VSI Crushers Working Principle

Raw material falls down into feed hopper, and then enters rotor through central entrance hole. It is accelerated in high-speed rotor, and then is thrown out at speed of 60-75m/s. When hitting anvil, it is crushed. Final products come downwards though outlet.

Raw material falls down into feed hopper, and then through ring, it is divided into two parts by material-dividing plate. One enters into rotor through the center of material-dividing plate. The other falls down from outside of material-dividing plate. Material, which is thrown out by rotor at speed of 60-75m/s, hits material coming down from outside of material-dividing plate. In this way, material is crushed.

 Technical Data of Impact Crusher
