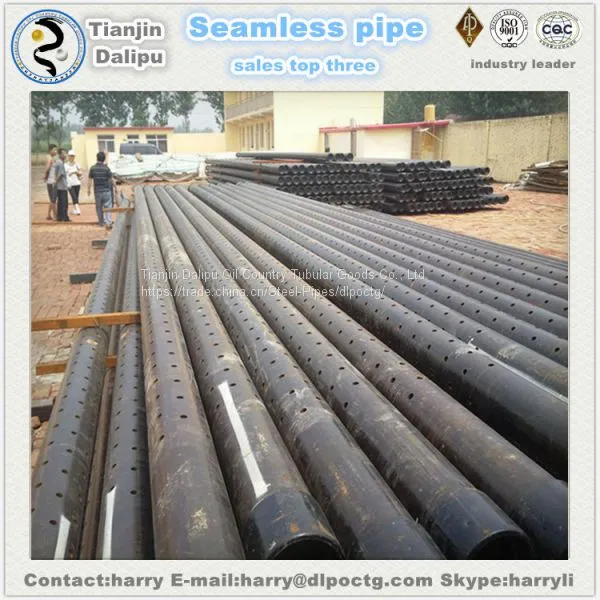

stainless slotted liner perforated drainage pipe slotted pipe
Packaging Details:Wrapped in bundles by steel strips/bulk
Delivery Time:Shipped in 10 days after payment
The main technical parameters
| Product Name | stainless slotted liner perforated drainage pipe slotted pipe |
| Material | carbon steel, stainless steel |
| Pipe categories | oil casing, tubing |
| Length (single) | 15 m or less |
| Pipe diameter | 50 to 500 mm (length of 15 m or less) |
| Wall thickness | 20 mm or less |
| Seam width | (0.10 ~ 4) mm + / - 0.03 mm |
| Stitch count | any |
| Slot layout | parallel, crisscross, spiral |
| Packaging | Carton package or as per your requirements |
Character: Oil filter screen pipe/slotted oil sieve tubes are used for oil exploring.The rigid construction and high quality of materials make possible a product that lasts longer and requires less maintenance. We also can offer galvanized ones to prolong the operational life.
Slotted pipe is in various ways on the petroleum casing or tubing cutting out more than a certain specifications of the longitudinal or helical inline and staggered slot. After the use of special ultra-thin cutting plate and beam cutting and become, the slit width (0.2 0.5 mm). Seam cross section is rectangular, trapezoidal (trapezoid Angle of 3-8 degrees) and form (hole) and so on many kinds of form, can guarantee the permeability is 0.5% - 10%, the arrangement of aperture can according to user requirements for processing.
Slotting Options: （1) Keystone slots：The groove is worn inside the tube wider and is self-cleaning to help prevent clogging. 6 ° including the side slot is the standard slot; slot width available width: greater than 0.012 "
（2) Straight Slots: This is the first type of groove to make. It has a straight edge of equal width over the entire wall of the housing. This type of groove is easier to block by the sandAPI 5CT sand control slotted tube, the screen than the trapezoidal groove.
Slot Patterns Available：（1)Straight vertical grooved tube: Radially cut into the center slot, which allows the incoming fluid to flow directly to the center, eliminating the possibility of any eddy currents in the tube（2) The staggered vertical slotted pipe is radially cut to the center, causing the incoming fluid to flow directly to the center, eliminating may be in the tube of any rotation action.(3) Multiple vertical staggered grooved ducts increase the inlet opening from one to four parallel vertical slots.
| Spec. mm | Thickness mm | Per Weight Kg/m | ID mm | Slot Lengt mm | Slot No.No./m | Slot Widthmm | Slot Tolerance | Max. Strength KN |
| 60.32 | 5 | 6.84 | 50.3 | 80 | 200 | 0.3 | ±50 | 512.54 |
| 73.02 | 5.5 | 9.15 | 62 | 80 | 240 | 0.3 | ±50 | 688.55 |
| 88.9 | 6.5 | 13.22 | 75.9 | 80 | 280 | 0.3 | ±50 | 995.1 |
| 101.6 | 6.5 | 15.22 | 88.6 | 80 | 300 | 0.3 | ±50 | 1151.2 |
| 114.3 | 7 | 18.47 | 100.3 | 80 | 320 | 0.3 | ±50 | 1400.4 |
| 127 | 7.52 | 22.13 | 112 | 80 | 340 | 0.3 | ±50 | 1673.8 |
| 139.7 | 7.72 | 25.11 | 124.3 | 80 | 360 | 0.3 | ±50 | 1900.2 |
| 139.7 | 9.17 | 29.48 | 121.4 | 80 | 360 | 0.3 | ±50 | 2232.4 |
| 168.3 | 8.94 | 35.09 | 150.4 | 80 | 400 | 0.3 | ±50 | 2672.95 |
Specification:continuous slot screen,pipe base screen,perforated tube,slotted pipe, sieve strainer,casing pipe
length:≤12m (each)
outside diameter :50-500mm
thread: BTC,LTC,STC
slot width:(0.10-4)mm±0.03mm
slot number:as per customer's requirement

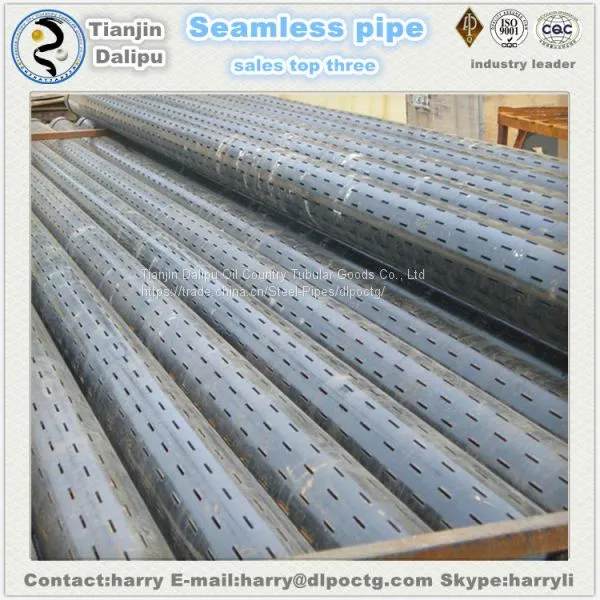

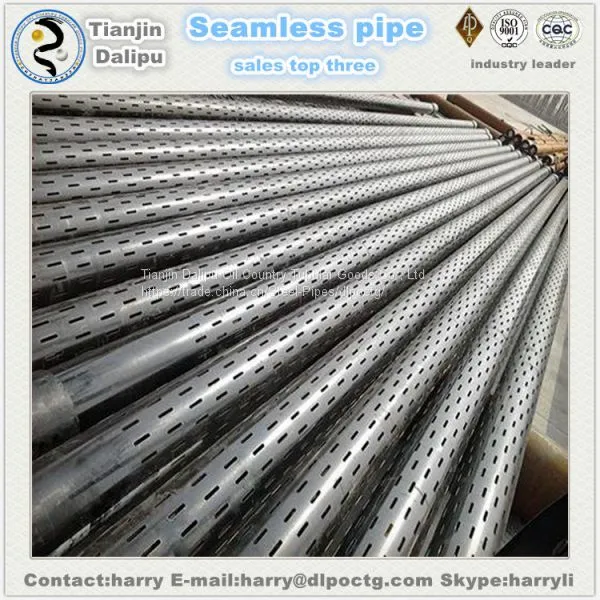

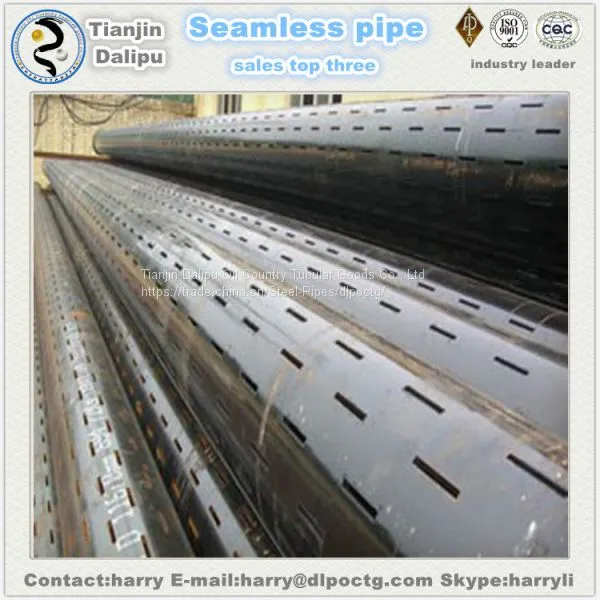

slot shapes:straight in line pattern, staggered pattern ,spiral pattern
slot space:as per customer's requirement

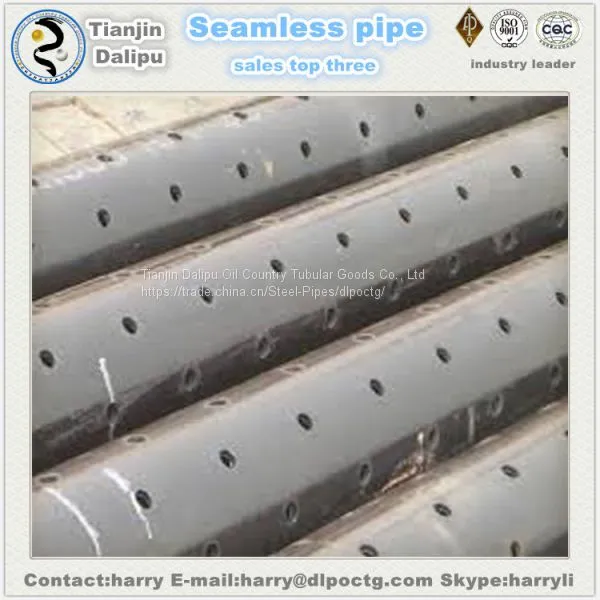

slotted casing with apertures of 0.20-6mm are wide used in prevention of oil and wells
We will choose the suitable packing for different goods, protect the safety of goods and help customer to design the economical shipping plan at same time.
Packaging：Wrapped in bundles by steel strips/bulk
Date of Delivery：Shipped in 10 days after payment
TIANJIN DALIPU OIL COUNTRY TUBULAR GOODS CO.,LTD is a modern professional industry and trade combined enterprise specializing in producing and trading seamless steel pipes.
The main products of our company are the oil casings and oil pipelines. We not only supply our goods with many large oil fields, but also establish a long-term business relationship with the Middle East Europe, Africa and other countries around the world and co-operative very well.
FAQ
Q: How long is your delivery time?
A: If there are stocks, take 5-10days to delivery for small quantity, and 30-40days for bigger quantity;If no stock, depends on the steel billet purchase,
Q: What about your payment term?
A: Usually T/T or L/C, 30% deposit and 70% before delivery.
Q: what about your standard delivery date
A: 30 days after receiving deposit .We are pleased to provide you with best services in consulting, purchasing,transportation installation, and after-sales services.
We would like to establish long term business with any reliable partner in the world . Any interesting or questions, pls don't hesitate to contace us . Waiting for your kindly reply . Thanks.
