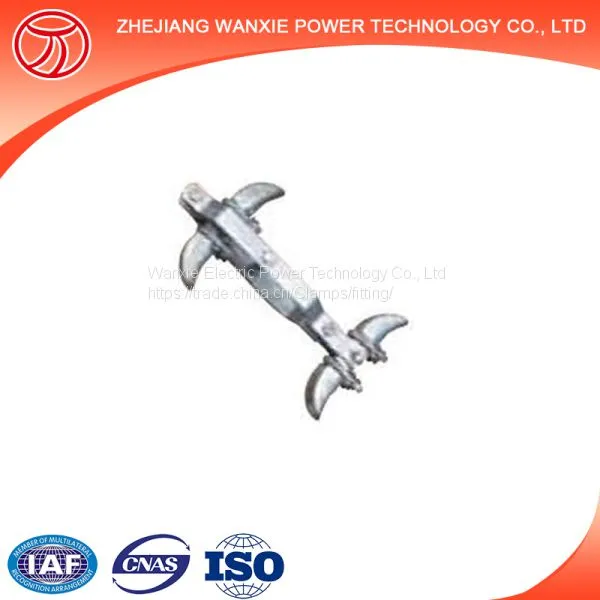

Wanxie XCS perpendicular double clamp two conductor suspension clamp
- 50000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T L/C Credit Card PayPal Other Cash
- 10 days
-
FK-ETD54 clip clamp,material sus301 stainless steel,Surface Cleaning，Easy to assemble, stable clamping force.
-
RM14 Clamp, RM14 Double PIN clip , RM14 core clamps,wholesale inventories, quality assurance, delivery fast. Can provide customers with matching Core and Bobbin
-
RM12 transformer clamp，RM12 with PIN, RM12 core clamps,wholesale inventories, quality assurance, delivery fast. Can provide customers with matching Core and Bobbin
-
DIN3352 F4 Resilient Non-rising Gate Valve
-
High Quality Low Price Oil&Gas Pipe Fitting Clamp Metal Pipe External Pipe Line Up Clamp Cage Type Clamp
-
manual type external line up clamp made in China with stocks
Product Details
| Brand Name: | Wanxie | Place of Origin: | China | Model Number: | XCS |
| Material: | Aluminium | Usage: | Heavy Duty | Standard or Nonstandard: | Standard |
| Structure: | Suspension Clamp |
Product Description
The meaning of letter and arablic figure in the catalog are show as follows:
X-suspension clamp
G-fixed
S-double clamp
U-U bolt
J-Strength
H-aluminium alloy
F-corona control
K-under axle type
T-envelope type
A-with a socket-clevis
B-with U clevies
X-Hang-down type
The suspension angle of supension clamps is not less than 25º, the radius of curvature is not less than the dia of installed leads by 8, and the precentage of the grip on different kinds of leads to the capabiility of snap show in the following table.
| Conducdtor | Constrtuction(Al/St) | Precentage% |
| ACSR | >1.7 | 12 |
| 4.0-4.5 | 18 | |
| 5.0-6.5 | 20 | |
| 7.0-8.0 | 22 | |
| 11.0-20.0 | 24 | |
| Steel wire | Limited strenghed 1176-1274 N/mm2 | 14 |
| Al-conductor | 30 |
| Type | Applicable conductor diameter | Main Dimensions(mm) | Failure Load (KN) | Weight(KG) | |||||
| L | C | R | H | h | M | ||||
| XCS-4 | 21-26 | 250 | 20 | 13.5 | 490 | 400 | 18 | 70 | 9.3 |
| XCS-5 | 23-33 | 300 | 38 | 17 | 490 | 400 | 18 | 100 | 10.8 |
| XCS-6 | 34-35 | 300 | 38 | 23 | 495 | 400 | 18 | 100 | 12.5 |
Clamp bodies and keepers are malleable iron, cotter-pins are stainless steel, the othe parts are steel. All ferrous parts are hot-dip galvanized.
Zhejiang Wanxie Power Technology Co., Ltd is a professional manufactuer which has 5 years OEM exprience. Our products sells mainly in Europe, America,South Africa and so on. Our company has products of all specifications and its major products are overhead insulator fittings, poleline accessories, power line fittings, pocelain insulators and so on. The company has a strong technological power, top-ranking production.and has got the certificate of International Quality System ISO9001.
1, Are you a factory?
We are a professional manufacture.
2, How about the payment terms?
Normally 30% deposit in advance, the balance should be paid before shipment.
3, How about delivery time?
Depend on your order quantity. We can finish order very fast.
4, Can I get a sample?
We can supply 1 or 2 samples for free, client only need to pay express fee.
5, Can you make it according to my drawing?
Of course, we can make various products according to your demands.
