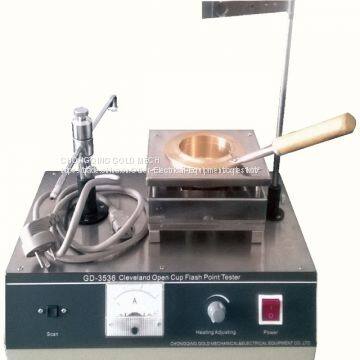

GD-3536-1 Semi-automatic Cleveland Open Cup Flash Point Tester

GD-3536-1 Semi-automatic Cleveland Open Cup Flash Point Tester thumbnail-1
GD-3536-1 Semi-automatic Cleveland Open Cup Flash Point Tester photo-1
US$ 1 - 1 MOQ: 1 Bag
Key Specifications
Get Latest Price
Brand Name:
GOLD
Place of Origin:
China
Model Number:
GD-261D
Contact Supplier Request Quote Chat Now
Chongqing Gold Mech
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GOLD
Place of Origin China
Model Number GD-261D

Introduction:

This instrument is designed and made as per standards GB/T3536-2008 Petroleum Products - Determination of Flash and Fire Points - Cleveland Open Cup Method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester. It is applicable to all petroleum products with flash points above 79℃ and below 400℃ except fuel oils.


Features:

1. It adopts special heating furnace to ensure the safety of test. The heating power is continuously adjustable. It can meet requirements of test.

2. The instrument adopts desktop structure. The stainless steel working table and furnace shell make it beautiful and elegant.

3. The instrument is fully self-contained complete. The operator can do determination as long as connecting with coal gas or other civil gas.

4. It equipped with flame extinguishing cover which accord with requirements of test.


Specifications:

Power supply  AC(220±10%)V, 50Hz
Heating deviceQuartz tube furnace heating, no naked fire, explosion prevented. The power is adjustable from 0W to 600W
Test flame applicator
 		It applies the test flame automatically
Thermometer(-6~400)℃. It is the same as thermometer ASTM 11C
Igniting device(1) Ignition source: coal gas(or civil gas)
(2) Flame diameter is 3.2mm-4.8mm
Ambient temperature(-10~50)℃
Relative humidity≤85%
Maximum power consumption650W
Dimension350*290*350mm (thermometer is not included)


Product Tags: Flash tester , Closed-Cup Flash Point Tester , The Cleveland open cup tester
