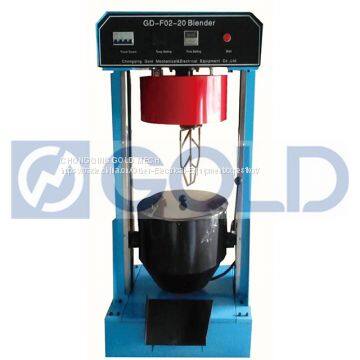

GD-F02-20 Automatic Mixture Blender

GD-F02-20 Automatic Mixture Blender thumbnail-1
GD-F02-20 Automatic Mixture Blender photo-1
US$ 1 - 1 MOQ: 1 Bag
Key Specifications
Get Latest Price
Brand Name:
GOLD
Place of Origin:
China
Model Number:
GD-F02-20
Contact Supplier Request Quote Chat Now
Chongqing Gold Mech
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GOLD
Place of Origin China
Model Number GD-F02-20

Introduction:

1.This instrument is designed and made as per industrial standard T 0702-2011 Production Method for Test Specimen of Bituminous Mixture(Compaction method) in JTG E20-2011 Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering. It is used to blend the test specimen of bituminous mixtures before production.

2.The size of instrument is small, space saving and easy to operate. It is a preferred instrument for blending the bituminous mixture for bitumen production companies, road and bridge building units, colleges and scientific research institutes.


I. Main technical features:

1.This instrument adopts advanced micr℃omputer control technology. Temperature can be set from ambient to 200℃ at will and automatically adjusted by PID. The blending time can be controlled automatically. It achieves the automation for operation.

2.It has protecting function for phase sequence which can prevent the machine from damage because of phase sequence fault.

3. Floor type structure. Reasonable design and easy to use.


II. Main technical specifications

Blending amount20L
Temperature control rangeRoom temperature~200℃
Temperature control accuracy±5℃
Timing range (0~999) s
Timing accuracy±0.1s
Rotation rate of paddleComplete revolution 47R/min, Autorotation 76R/min
Blending motorAlternating current 380V, 550W；1400R/min；50Hz
Lifting motorAlternating current 380V,250W；1400R/min；50Hz
Overall dimension600mm×400mm×1300mm
Net weight215Kg
Power supplyAC (380±10%) V; 16A; 50Hz(three-phase four-wire with null line)
Ambient temperature (-5~+50)℃
 Relative humidity≤80%
