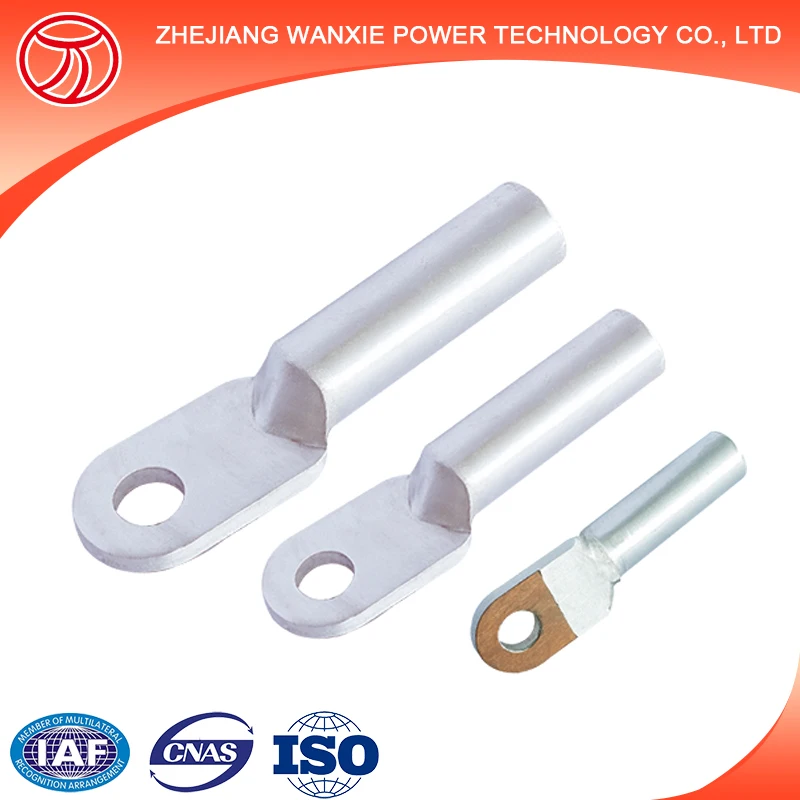

Wanxie DTL Bi-Metallic cable connector explosive welding type terminal connector

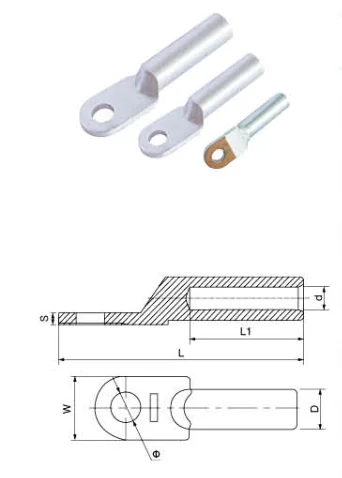

| Type | Main Dimensions(mm) | |||||||
| Φ | D | d | L | L1 | W | S | ||
| DTL-16 | 8.4 | 10 | 5.5 | 70 | 32 | 16 | 3.0 | |
| DTL-25 | 8.4 | 12 | 7.0 | 75 | 34 | 18 | 3.5 | |
| DTL-35 | 10.5 | 14 | 8.5 | 85 | 40 | 20 | 3.5 | |
| DTL-50 | 10.5 | 16 | 9.5 | 90 | 42 | 23 | 4.0 | |
| DTL-70 | 12.5 | 18 | 12.0 | 102 | 47 | 26 | 4.5 | |
| DTL-95 | 12.5 | 21 | 13.0 | 112 | 50 | 28 | 5.0 | |
| DTL-120 | 14.5 | 23 | 15.0 | 120 | 53 | 30 | 5.5 | |
| DTL-150 | 14.5 | 25 | 16.0 | 126 | 55 | 34 | 6.0 | |
| DTL-185 | 16.5 | 27 | 18.0 | 133 | 58 | 37 | 6.5 | |
| DTL-240 | 16.5 | 30 | 20.0 | 140 | 60 | 40 | 7.5 | |
| DTL-300 | 21.0 | 34 | 23.0 | 165 | 65 | 45 | 8.5 | |
| DTL-400 | 21.0 | 38 | 26.0 | 170 | 70 | 52 | 9.5 | |
| DTL-500 | 21.0 | 42 | 29.0 | 190 | 75 | 60 | 10.0 | |
| DTL-630 | Square head | 54 | 34.0 | 225 | 80 | 78 | 10.5 | |
| DTL-800 | Square head | 60 | 38.0 | 270 | 90 | 100 | 11.0 | |
Zhejiang Wanxie Power Technology Co., Ltd is a professional manufactuer which has 5 years OEM exprience. Our products sells mainly in Europe, America,South Africa and so on. Our company has products of all specifications and its major products are overhead insulator fittings, poleline accessories, power line fittings, pocelain insulators and so on. The company has a strong technological power, top-ranking production.and has got the certificate of International Quality System ISO9001.
1, Are you a factory?
We are a professional manufacture.
2, How about the payment terms?
Normally 30% deposit in advance, the balance should be paid before shipment.
3, How about delivery time?
Depend on your order quantity. We can finish order very fast.
4, Can I get a sample?
We can supply 1 or 2 samples for free, client only need to pay express fee.
5, Can you make it according to my drawing?
Of course, we can make various products according to your demands.
