Help CenterParallel Groove Connectors AL/AL
US$ 1 - 1.5
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
Wanxie
Place of Origin:
China
Model Number:
APG
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
10 days
Related Products
-
Parallel Groove Clamps Copper Extruded TypeUS$ 1 - 1.5MOQ: 1000 Pieces -
DT Series Oil Plugging Type Copper Terminal ConnectorUS$ 1 - 20MOQ: 1000 Pieces
-
DT Double Holes Cable Lug Terminal Copper Terminal ConnnectorUS$ 1 - 20MOQ: 1000 Pieces
-
DL Series Aluminium Cable Lug Terminal ConnectorUS$ 1 - 3MOQ: 1000 Pieces
-
Doubel Hole Type Al Terminal Connector Cable LugUS$ 1 - 3MOQ: 1000 Pieces
Brand Name
Wanxie
Place of Origin
China
Model Number
APG
Material
Metal
Usage
Heavy Duty
Standard or Nonstandard
Standard
Structure
Suspension Clamp
Material
High strength aluminum alloy by forging .Surface treatment：Bright
Product property

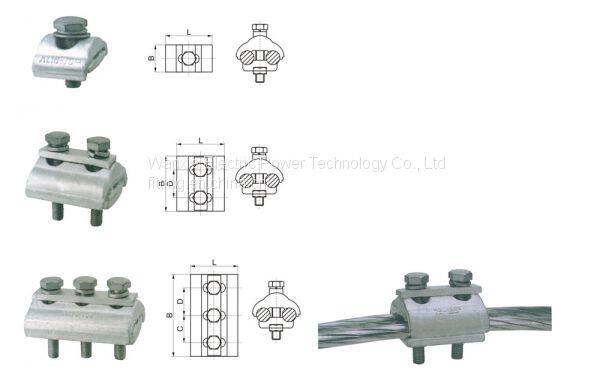

ALPG is used for connecting or branching AAC ,AAAC or ACSR overhead conductors .Forging creates a high strength clamp .Slotted holes allow
adjustment for varying conductors on each side .Its type test is in accordance with IEC61238-1 .
Technical Data
| Model | Conductor Cross-section (mm2) | Bolts |
| APG-A1 | Al 16-70 | 1×M8×40 |
| APG-A2 | Al 25-150 | 1×M8×45 |
| APG-B1 | Al 16-35 | 2×M6×35 |
| APG-B2 | Al 16-70 | 2×M8×45 |
| APG-B3 | Al 16-150 | 2×M8×50 |
| APG-B4 | Al 25-185 | 2×M10×60 |
| APG-C1 | Al 16-70 | 3×M8×45 |
| APG-C2 | Al 16-150 | 3×M8×50 |
| APG-C3 | Al 25-240 | 3×M10×60 |
| APG-C4 | Al 35-300 | 3×M10×70 |
