Home > Electrical & Electronics > Connector & Terminals > Terminals > Wanxie BLMT-35/150-13 Torque Terminal One Screw Type Terminal Connector

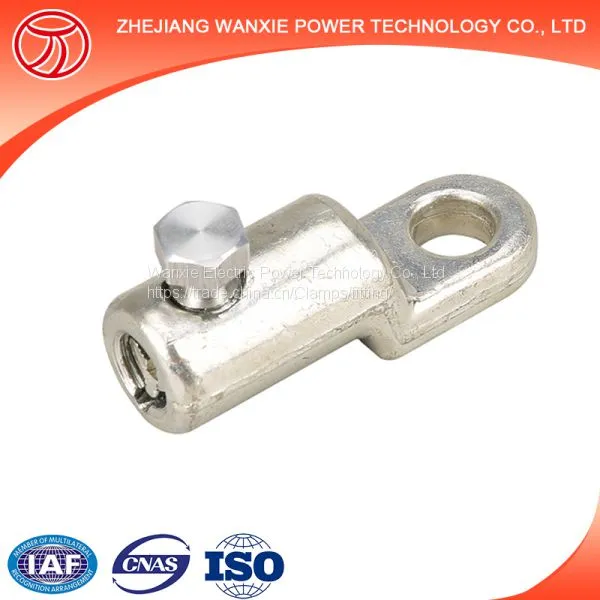

Wanxie BLMT-35/150-13 Torque Terminal One Screw Type Terminal Connector

Name: Wanxie BLMT-35/150-13 Torque Terminal One Screw Type Terminal Connector
Brand: Wanxie
SKU: 144834170
Availability: InStock

Wanxie Electric Power Technology Co., Ltd

Wanxie BLMT-35/150-13 Torque Terminal One Screw Type Terminal Connector thumbnail-1

Wanxie BLMT-35/150-13 Torque Terminal One Screw Type Terminal Connector thumbnail-2

Wanxie BLMT-35/150-13 Torque Terminal One Screw Type Terminal Connector thumbnail-3

Wanxie BLMT-35/150-13 Torque Terminal One Screw Type Terminal Connector photo-1

Wanxie BLMT-35/150-13 Torque Terminal One Screw Type Terminal Connector photo-2

Wanxie BLMT-35/150-13 Torque Terminal One Screw Type Terminal Connector photo-3

US$ 1 - 3 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Brand Name:

Wanxie

Place of Origin:

China

Model Number:

BLMT-35/150-13

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

10 days

Product Details
Company Profile
Contact Us

Brand Name Wanxie

Place of Origin China

Model Number BLMT-35/150-13

Type Crimp Terminal

Wanxie BLMT-35/150-13 torque terminal one screw type terminal connector

Product Description

Product description

1.Aluminum cable lug for power fitting.

2.Material: 99.5% purity Aluminum

3.Suitable treatment: Bright

4.It is suitable for connection of Aluminum conductor.

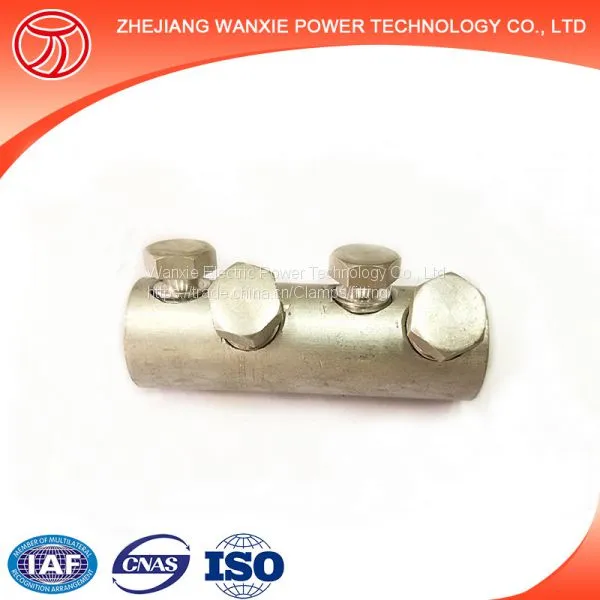

Mechanical connectors, lugs and repair sleeves are designed for use in low and medium voltage applications. Only three sizes cover conductor sizes from 25 mm2 to 400 mm2. All products consist of a tin-plated body, shear-head bolts and inserts for small conductor sizes.

Body

Connector and lug bodies are made of a high-tensile, tin-plated aluminium alloy. The internal surfaces of the conductor holes are grooved. Connectors are chamfered at the edges and available with or without oil barrier (as blocked and unblocked types) depending on the appli cation requirements. Lugs are suitable for outdoor and indoor applications and are available with different palm hole sizes.

Catalog	Cross-sectional range mm2	Palm hole diameter(mm)	Dimensions(mm)				Head size
		Palm hole diameter(mm)	Dimensions(mm)				AF
		LB	L1	L2	D1	D2	mm
BLMT-25/95-13	25-95	13	60	30	24	12.8	13
BLMT-35/150-13	35-150	13	86	35	28	15.8	17
BLMT-95/240-13	95-240	13	112	60	33	20	19

Company Information

Zhejiang Wanxie Power Technology Co., Ltd is a professional manufactuer which has 5 years OEM exprience. Our products sells mainly in Europe, America,South Africa and so on. Our company has products of all specifications and its major products are overhead insulator fittings, poleline accessories, power line fittings, pocelain insulators and so on. The company has a strong technological power, top-ranking production.and has got the certificate of International Quality System ISO9001.

Certifications

Packaging & Shipping

FAQ

1, Are you a factory?

We are a professional manufacture.

2, How about the payment terms?

Normally 30% deposit in advance, the balance should be paid before shipment.

3, How about delivery time?

Depend on your order quantity. We can finish order very fast.

4, Can I get a sample?

We can supply 1 or 2 samples for free, client only need to pay express fee.

5, Can you make it according to my drawing?
