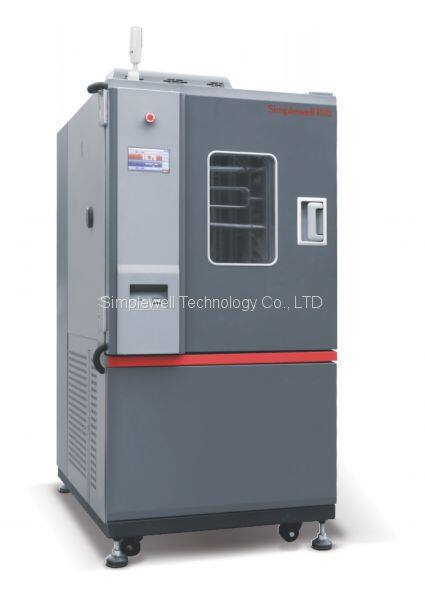

Environmental test chamber manufacturers, temperature & humidity chamber
Product purpose
The temperature and humidity tester chamber is mainly used to test material properties under different environments, like high temperature, low temperature, dry environment, moist environment, etc. The test chamber is well received in the quality tests of electronics, appliances, communications, instruments, vehicles, plastic products, metal, food, chemicals, construction materials, pharmaceuticals and aviation.
Technical parameters of temperature humidity climate test chamber
Model: 262
Volume: 262L
Inner size: 700*750*500
External size: 900*1920*1430
Temperature range: -20°C～+150°C (180°C optional)
Humidity range:20%RH~98%RH/(20~85°C)
Temperature fluctuation: ±0.5°C
Temperature deviation: ±1.5°C
Humidity deviation: ±3.0%RH(≥75%)；±5.0%RH(≤75%)
Warm-up time : 20°C~+150°C, ≤50MIN
Cooling time: +20°C~-20°C, ≤45MIN
Working environment temperature: +5°C~+35°C
Reference Standards
*IEC60068-2-1.1990 Testing Method of Low Temperature Testing Chamber
*IEC60068-2-2.1974 Testing Method of High Temperature Testing
Optional configurations
1. Rotary dehumidifier/ polymeric membrane, with a lowest temperature/humidity content of 5℃/5%RH.
2. Built-in tempered glass door, easy to move.
3. Water purification system, with automatic replenishment function.
4. Recorder, save and print testing data.
5. Ultrasonic humidifier/high-pressure spray humidifier, providing continuous high humidity under extreme temperature.
6. Dry air blow system, anti-condensation
7. Remote monitoring function, cellphone and computer supportive.
Cooling equipment

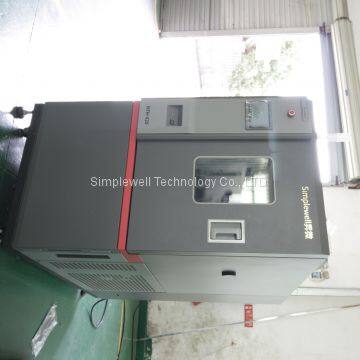

Gallery
Cases
Through more than 20 years of hard work, we have established friendly relationship with customers both at home and abroad. Some of them are well-know companies and organizations, like SGS, SONY, TUV AND FORD, etc.
