Micro Chamber VOC testing/Micro sampling voc testing chamber
VOC emission testing of furniture, decoration, and construction materials
Volatile organic compounds (VOC) can have an adverse reaction on technical products, components, humans, and the environment. Test your products under the right conditions. Browse our available VOC Test Chamber Solutions designed to ensure the safety and integrity of pieces, parts and products.
Advantages of our VOC emission testing cabinet
The method reduces the adsorption capacity of the contact surface, greatly reduces the adsorption of a test object on the inner wall of the chamber and on the surface in contact with the test object of each component, so that the tested value of the samples taken from a sampling tube is closer to the actual value of the test object in the chamber, effectively improving the testing precision of the releasing chamber. EUROPEAN, USA, JAPAN PATENT OF (METHOD FOR TREATING SURFACE OF RELEASING CHAMBER IN CONTACT WITH TEST OBJECT).
Application of Micro VOC emission testing chamber
1. Test the concentration of VOC and SVOC in material and products for regular quality control.
2. Test radioactive materials.
3. Test the content of water steam permeated into the material when temperature changes.
4. Analyze components of essences and spices.
5. Confirm technical date of volatile matters and molecular materials.
6. Comparre characteristics of different products within an effective range.
7. Exam properties of prototypes.
8. Ensure consistent product quality and property.

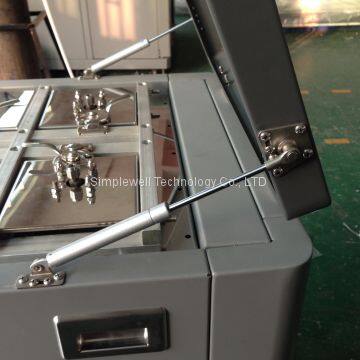

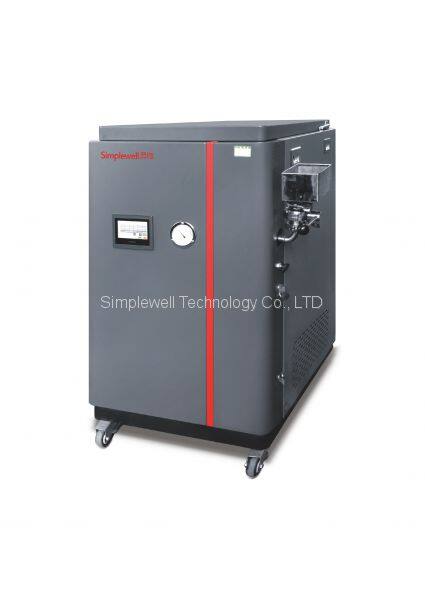

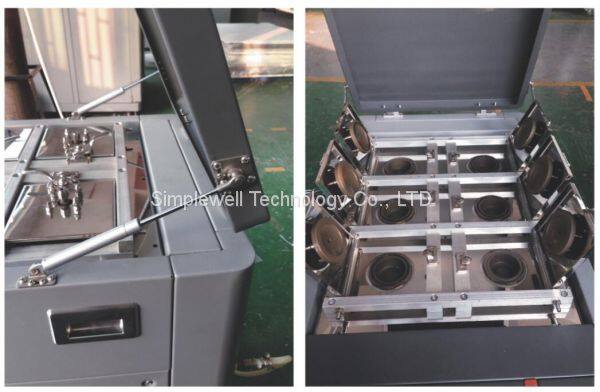

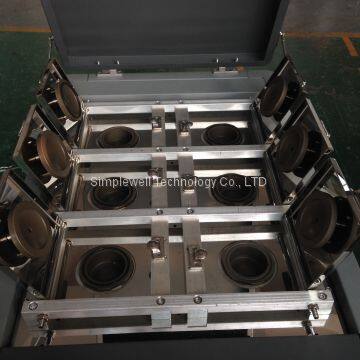

Details about Micro VOC emission test chamber
Advantages of VOC emission test chamber
1. The coated stainless steel wall improves the adsorption capacity of test chamber of high-boiling-point materials and polar compounds. The chamber absorbs more than 80% of tetradecane and 4-phenyl-1-cyclohexene.
2. The micro VOC emission chamber provides standard testing environment and main testing items include VOC concentration, SVOC concentration, water content and so forth.
This micro VOC emission chamber adopts ISO 12219-3: 2012 screening method for the determination of the emission of volatile organic compounds from vehicle interior parts and materials-Micro-Scale chamber method.
Technical Parameters of Micro chamber VOC testing equipment
Model |
MV-4 |
MV-6 |
MV-8 |
Environmental temperature |
5~ 35°C |
||
Environmental humidity |
≤ 90% R.H |
||
Requirements for environmental |
No pollutant source in the surrounding environment TVOC 500µg/m³ |
||
Volume of climate chamber |
Φ64xh34mm 116ml |
||
Quantity of inner tanks |
Several, with aspiration at the bottom ring and outlet and sampling at the ceiling |
||
Adjustable range of temperature |
20~200°C, high temperature cleaning 260°C |
||
Adjustable range of humidity (Optional) |
5%R.H. (65°C) |
||
Pressure |
Positive pressure |
||
Temperature fluctuation |
±0.3°C |
||
Temperature deviation |
±1.0°C |
||
Humidity fluctuation (Optional) |
±2.5%R.H |
||
Humidity deviation (Optional) |
±3% |
||
Air exchange rate (Optional) |
10~500/H±5% |
||
Air flow volume |
10~500mL/min |
||
Power |
220V/50Hz |
||
Staring power |
3KW |
||
Operating power |
1.5KW |
||
Outline dimension of the climate chamber |
W580*D890*H1050 (6 inner tanks), which shall be confirmed according to the quantity of inner tanks. |
||
Background concentration of methanol |
Smaller than 15ug/M3, the lowest 6ug/M3 |
||
Background concentration of VOC |
Single VOC has a concentration smaller than 2µg/m³, T VOC 20µg m dust filtrated TVOC has a concentration smaller than 20µg/m³ |
||
Rate of recovery |
Formaldehyde, octanol, 4 phenyl Cyclohexene, dodecane and tetradecane have a recovery rate larger than 80% |
||
Cases
