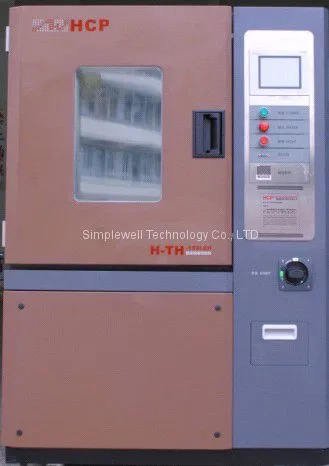

Temperature humidity shock test chamber
Thermal shock test chamber, Themal shock test equipment, Hot and cold impact testing equipment
Product purpose
The equipment is suitable for each kind of electronic product and other product; and the parts and materials are subjected to high/ low temperature constant and each kind of temperature impact and temperature quick change reliability test.
Reference Standards
*GB/T2423.1-2008 Test A: Low Temperature Test Method
*GB/T2423.2-2008 Test B: High Temperature Test Method
*GB/T2423.22-2002 Test N: Low Temperature Test Method
*GJB150.3-1986 High Temperature Test
*GJB150.4-1986 Low Temperature Test
*GJB150.5-1986 Temperature Shock Test
Technical Parameters of temperature humidity shock testing equipment
Model |
KTS-41A |
KTS-41B |
KTS-41D |
KTS-71A |
KTS-71B |
KTS-71C |
KTS-110A |
KTS-110B |
KTS-110D |
KTS-301A |
KTS-301B |
KTS-3011D |
||||||
Temperature range of test chamber |
+60~+200°C |
+60~+200°C |
+60~+200°C |
+60~+200°C |
||||||||||||||
-40~+0°C |
-55~+0°C |
-65~+0°C |
-40~+0°C |
-55~+0°C |
-65~+0°C |
-40~+0°C |
-55~+0°C |
-65~+0°C |
-40~+0°C |
-55~+0°C |
-65~+0°C |
|||||||
Cooling mode |
Wind cooling or water cooling optional |
|||||||||||||||||
Temperature recovery condition |
High temperature exposure |
+ 150℃ 30min |
||||||||||||||||
Normal temperature exposure |
5 min |
|||||||||||||||||
Low temperature exposure |
-40℃ 30min |
-55℃ 30min |
-65℃ 30min |
-40℃ 30min |
-55℃ 30min |
-65℃ 30min |
-40℃ 30min |
-55℃ 30min |
-65℃ 30min |
-40℃ 30min |
-55℃ 30min |
-65℃ 30min |
||||||
Temperature recovery time |
5 min |
|||||||||||||||||
Inner size(mm) |
W |
240 |
410 |
650 |
970 |
|||||||||||||
H |
460 |
460 |
460 |
460 |
||||||||||||||
D |
370 |
370 |
370 |
670 |
||||||||||||||
External size (mm) |
W |
1300 |
1300 |
1500 |
1500 |
1720 |
1720 |
2050 |
2050 |
|||||||||
H |
1900 |
1900 |
1900 |
1900 |
1900 |
1900 |
1900 |
1900 |
||||||||||
D |
1700 |
1800 |
1700 |
1800 |
1800 |
1900 |
2100 |
2200 |
||||||||||
Sample |
2.5KG |
5KG |
10KG |
24KG |
||||||||||||||
Power |
Ac380±10% three phase and four wire protection ground wire) / AC220V /AC110 50Hz / 60HZ |
|||||||||||||||||
Compressed air |
0.4~0.7MPa |
|||||||||||||||||
Water pressure |
0.2~0.5MPa |
|||||||||||||||||
Cases
Through more than 20 years of hard work, we have established friendly relationship with customers both at home and abroad. Some of them are well-know companies and organizations, like SGS, SONY, TUV, CTIAND FORD, etc.
