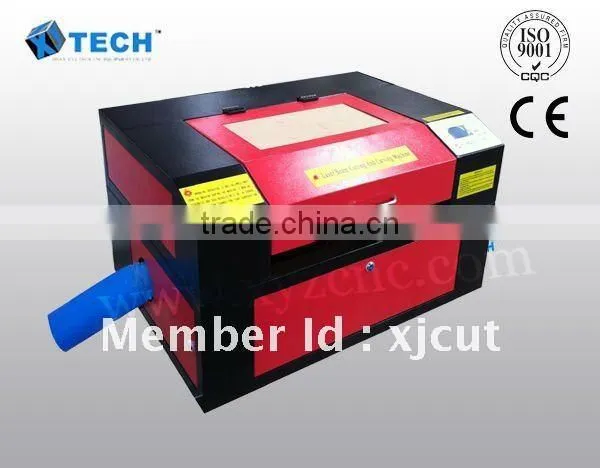

Xj-5030 Samll Co2 Laser Engraving Machine

Jinan XYZ-Tech CNC Equipment Co., Ltd.

US$ 1,500 - 2,300 MOQ: 1 Set

Key Specifications

Laser Type:

CO2

Place of Origin:

Shandong, China

Brand Name:

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Laser Type CO2

Place of Origin Shandong, China

Brand Name xj

Model Number 5030

Specifications

small co2 laser engraving machine
1)10,000hours'working time of laser tube
2)speedy and more efficient working performance

XJ-5030 small co2 laser engraving machine

Features :

1. Configure high power and quality laser tube, can work over 10000 hours.

2. DSP control system, rich function, can approach engraving on plane, gradient engraving by 360 degrees, cutting and drilling holes etc.

3. With function of restoring from power off, continuation function from break point.

4. Transmit files directly from Corel draw and Auto CAD, Photoshop, Tajima directly.

5. Adopt imported linear rail, high precision.

6. LCD screen monitor and USB interface support offline working from pen driver.

Technical Parameters of XJ-5030 mini co2 laser engraving machine :

	Model	XJ5030
1	Working area	500*300MM
2	Laser power	60W/80W/100W/130W/150W
3	Engraving speed	0–24000 mm/min
4	Reposition accuracy	±0.1mm
5	Working voltage	AC110- 220V±10%,50-60Hz
6	Consuming power	<1,000W
7	Working temperature	0 - 45°C
8	Working humidity	5 - 95%
9	Minimum letter size	English :1 x 1mm Chinese:2 x 2mm
10	Supported file format	BMP, HPGL, PLT, DST, DXP, and AI
11	Driving system	Stepper motors
12	Laser tube cooling type	Water-cooling and protection system
13	Other auxiliary equipment	Exhaust-fans and air-exhaust pipe
14	Compatible software	CorelDraw AutoCAD Photoshop
15	Laser tube type	Sealed CO2 glass laser tube:
16	N.W/G.W	320kg/400kg
17	Packing Dimension	210015001200mm
18	Optional parts	1.Motorized up and down worktable
		2.Rotary attachment with roller/clip
		3 Water Chiller
		4 Red dot pointer
		5.Auto focus
19	Consumable parts(Recommended)	1.Extra laser tube
19	Consumable parts(Recommended)	2.Extra 1 lens and 3 mirrors
All parameters above subject to change without prior notice
