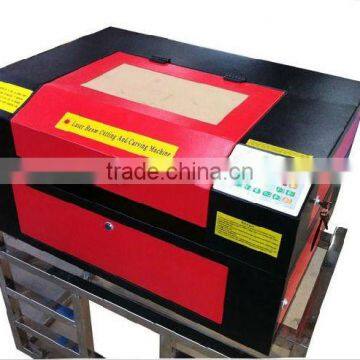

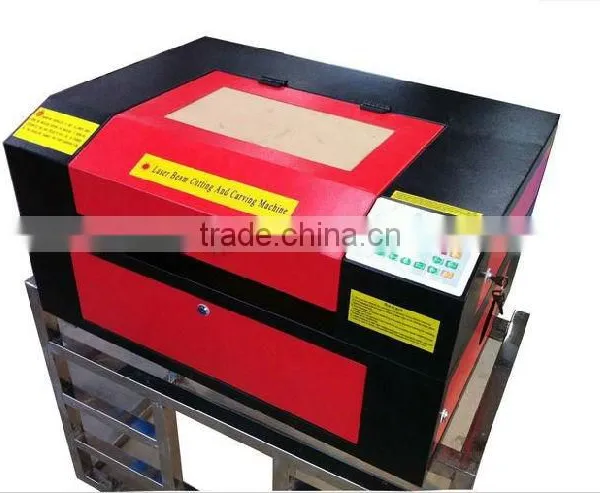

Xj-5030 Desktop Laser Machine 40w

Model

XJ5030

1

Working area

500*300MM

2

Laser power

60W/80W/100W/130W/150W

3

Engraving speed

0–24000 mm/min

4

Reposition accuracy

±0.1mm

5

Working voltage

AC110- 220V±10%,50-60Hz

6

Consuming power

<1,000W

7

Working temperature

0 - 45°C

8

Working humidity

5 - 95%

9

Minimum letter size

English :1 x 1mm     Chinese:2 x 2mm

10

Supported file format

BMP, HPGL, PLT, DST, DXP, and AI

11

Driving system

Stepper motors

12

Laser tube cooling type

Water-cooling and protection system

13

Other auxiliary equipment

Exhaust-fans and air-exhaust pipe

14

Compatible software

CorelDraw  AutoCAD  Photoshop

15

Laser tube type

Sealed CO2 glass laser tube:

16

N.W/G.W

320kg/400kg

17

Packing  Dimension

2100*1500*1200mm

18

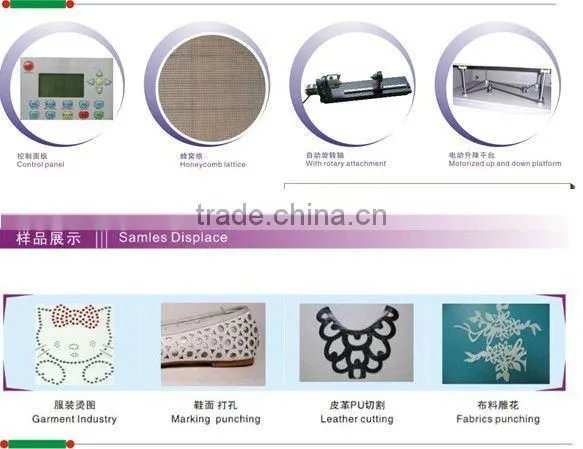

Optional parts

1.Motorized up and down worktable

2.Rotary attachment with roller/clip

3 Water Chiller

4 Red dot pointer

5.Auto focus

19

Consumable parts(Recommended)

1.Extra laser tube

2.Extra 1 lens and 3 mirrors

All parameters above subject to change without prior notice

guarantee for one year

24 hour technical support by email or calling

user friendly english manual and Video CD for manchine using and maintaining
