Specifications

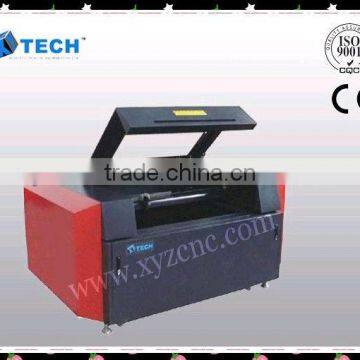

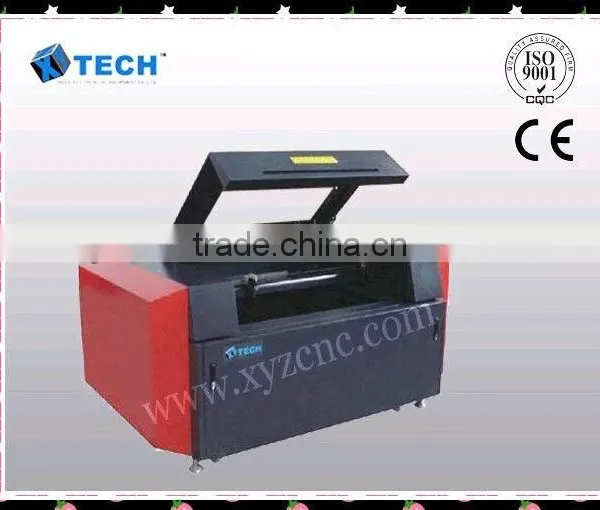

XJ1410 Laser Engraving ang Cutting Machine1.Advanced DSP digital control system
2.Big power and high stability laser
Specifications:
1) Lathe bed structure ensures the stable operation while carving and cutting at high speed
2) Beam is drawn out of high hardness alloy aluminum material and driven by a large power subdivision server-motor
3) Laser unit served by special radiator and protected without water makes it stable and safe with a longer life span
4) It matches accessories such as rotation platforms, double loser units
5) Operation handle can be chosen.
Parameter:
Model |
XJ1410 laser cutting &engraving machine |
Engraving Area |
1400*1000mm |
Engraving Speed |
1000mm/min |
Laser power |
80w/100w/130w |
Natural life of laser |
3000hours |
Laser wave length |
10.6um |
Resolution ratio |
0.025mm |
Minimum shaping character |
Chinese character 2mm/ letter 1mm |
Resetting positioning accuracy |
±0.01mm |
Power Supply |
Ac220v±10%,50HZ |
Gross Power |
2200w |
Operating Temperature |
0-45 |
Operating humidity |
5%-95% |
Graphic Format Supported |
BMP,GIF,JPEG,PCX,TGA,TIFF,PLT,CDR,DWG,DXF |
Driver Type |
Stepper Motor |
Cooling |
water cooling |
Operate System |
Win98/Win2000/WinXP |
Max Cutting thickness |
10-25mm(acrylic) |
Net Weight |
320KG |
Dimension |
2100*1500*1200mm |

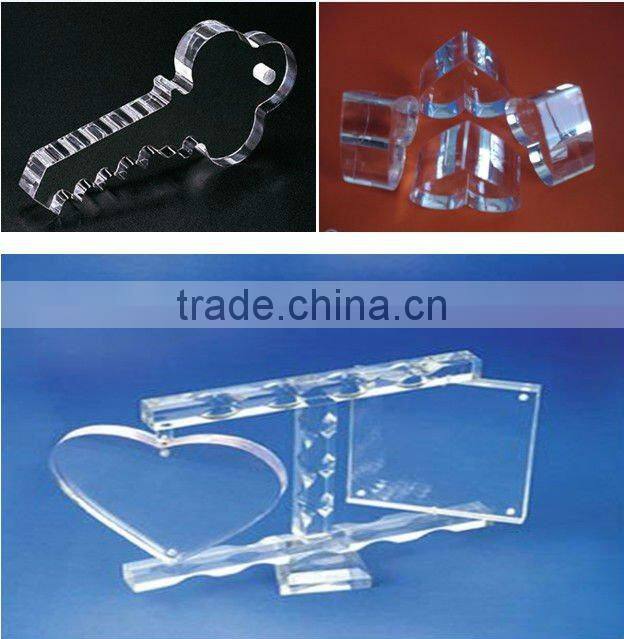

Applicable Materials:
Wood,paper,leather,cloth,organic,glass,resin,acrylic,wollens,plastic,rubber,ceramic,tile,crystal,bowlder,bamboo,non-metal etc
Applicable Industry:
Cloth embroider fabric toy, fabric, glove, bag, leather, advertising, decoration, electric product, rubber, acrylic product, middle density, board etc non-metal sheet precision cutting &engraving.
Guarantee & Aftersales Service:
1)Guarantee for one year
2)24-hour technical support by email or calling
3)User-friendly English manual and Video CD for machine using and maintaining
Offer follow speed up your progress:
1.What kind of material do you want to process?
2.What is the dimension of your working material?
Based on the above analysis, we will recommend the most suitable machine and best solution for you.
For more informations, please contact us
