Specifications
*XJ6090 small cnc metal milling machine*Germany Ball Screw;stepping motor
*DSP Control system:USB*with rotary device
XJ6090 small cnc metal milling machine
Specifications:
Working size X,Y,Z |
600×900×80mm or longer |
|
|
|
|
|
Command accepted |
G code,u00,mmg,plt |
|
|
|
|
|
Spindle Motor(optional) |
1.5kw,Inverter-driven spindle motor cooled by water Option: Italian HSD air-cooled |
|
||||
Working mode |
stepper |
|
|
|
|
|
Spindel speed |
0-24000rpm w/best frequency inverter |
|
|
|
|
|
Drive mechanism |
German imported ballscrew for x,y,z axis |
|
||||
XYZ Guide rail |
X,Y,Z Round shaft Option: Square linear rail for Y, round rail for X,Z |
|
|
|||
Motion positioning accuracy |
± 0.03/300mm |
|
|
|
|
|
Repositioning accuracy |
± 0.05mm |
|
|
|
|
|
Max motion Speed |
25,000mm/min |
|
|
|||
Max working speed |
9,000mm/min |
|
|
|||
Engraving Tools |
Ø3.175mm,Ø6.00mm |
|
|
|
|
|
Operating voltage |
AC110V/220V/50Hz/60Hz (optional) |
|
||||
Software |
Type3, Wentai(ArtCUT), ArtCAM, Variable CAD/CAM software |
|||||
Support software |
Windows98/2000/XP |
|
|
|
|
|
Operating system |
Ncstudio PC control (Free) Option: Mach3 // DSP off-line control system with USB interface,128M flash memory |
|
|
|
|
|
Optional equipments:
Rotary device with Dia 80mm, 100mm, 200mm.
Mist sprayer and flume
Applications(CE Authorized products):
a) Chest species
b) Tablet species
c) Building models
d) Stone
e) Metal
f) Wooden models
g) Embossed pictures
Spare parts |
Qty |
Unit |
Description |
cutter |
12 |
pcs |
90x32mm Conical Carbide Router Bit & 30mm Flat Carbide Cutter |
collet |
2 |
pcs |
3.175mm, 6.0mm |
clamp |
8 |
pcs |
|
water(air) -cooling pump |
1 |
unit |
50w,135w |
spanner |
2 |
pcs |
|
brush |
1 |
pcs |
|
power cord |
1 |
pcs |
|
USB cable |
1 |
pcs |
|
software |
1 |
pcs |
Type3 English Ver. 5.3 w/License |

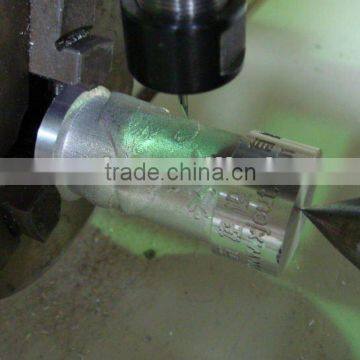

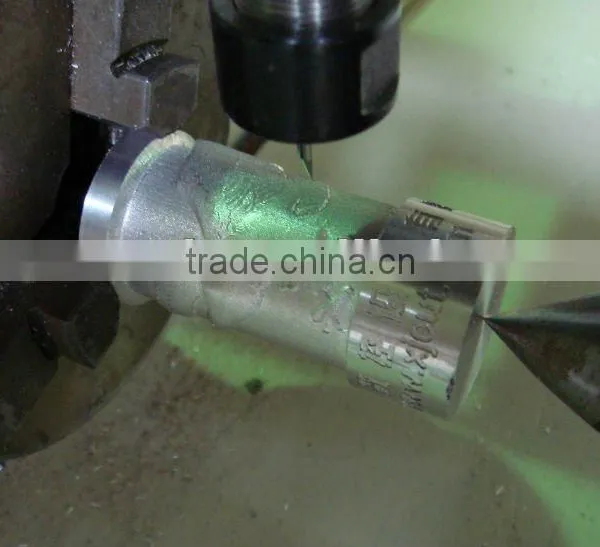

mini cnc router sample
