Specifications
xj-1224 cnc router1.High power non-brushing motor
2.the rotating speed could be adjust optionally
3.CE/ISO/BV

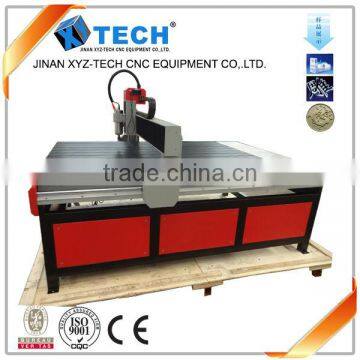

hot sale advertising machine for dsp controller xj-1224 cnc router
Parameter:
Performance parameter |
XJ1224 |
X,Y Working area |
1200mmx2400mm |
Z Working area |
150mm |
Resolution ratio |
0.005mm |
Reposition precision |
0.05mm |
Power(not including spindle) |
800W |
Max feeding height |
120mm |
Operation code |
G CODE |
Surrounding software |
Windows98/2000/xp |
Max carving speed |
6m/min |
Max speed |
8.8m/min |
Working voltage |
AC220V |
Spindle power |
2.2KW |
Spindle rotating speed |
0-24000rpm/min |
Drive motor |
Stepper |
Features:
1. X,Y,Z three-axis all adopt imported linear square orbit, two line sliding track, heavy loading, stable working, long lifetime.
2. X, Y, Z three-axis all have the waterproof, dustproof system, long lifespan.

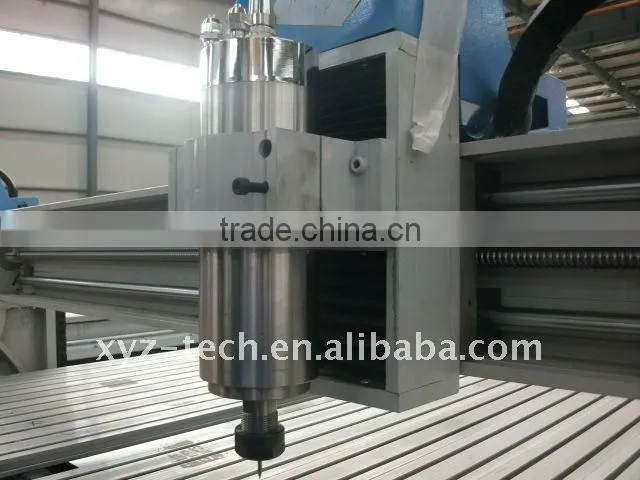

3. Water cooling constant torque spindle with the imported bearing, high power, and low noise.
4. Well compatibility, compatible with Type3/Artcam/Castmate/Ucancam V8 and many other software.
5. Double direction cutters cooling system can prolong the lifetime of cutters.
6. Imported electronic components guarantee the stability of operating.
7. Taiwan transducer with stable output signals.
8. Adopt imported ball screw.
9. Cast iron structure, can load weight up to 1000kg

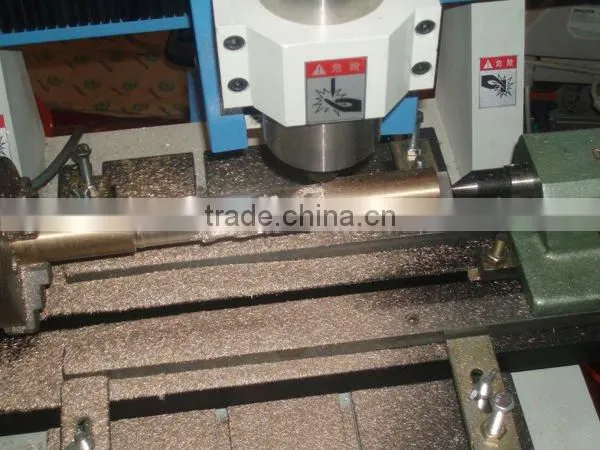

10. CNC Router Can be configured to the rotation axis machining cylindrical material
Features:
- Integral cast-iron frame, embedded linear, much more stable and solid structure.
- Rolling ball screw from Germany, two nut eliminating clearance, advanced fixing mode of three bearings.
- Configured 1.5kw inverter-driven spindle motor cooled by water
- Adopt the most advanced DSP controlling system
- Easy operation, sturdy, durable, reliable performance, good price,
- Dust-proof ,water-proof , up-down working table ,rotary device ,servo system system are optional
Application field:
Sign board process, mould, bronzing mould, motor, trim injection mould, shoe mould, badge, pattern mould, art carve, dial, font mould, mold, sign and label etc...
Guarantee & Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
Why do customers choose us?
1. At the same quality grade, our products' price is better.
2. At the same products' price level, our service is better.
Welcome to our company
We started to produce Mechanical and Laser Engraving Machine in 1994.
Nearly 20 years rich experience in producing saling and service ensures you high quality machine
and perfect service.
Our Export Percentage up to 81%~90%.
OEM Service Offered Design Service Offered Buyer Label Offered .
CNC workshop

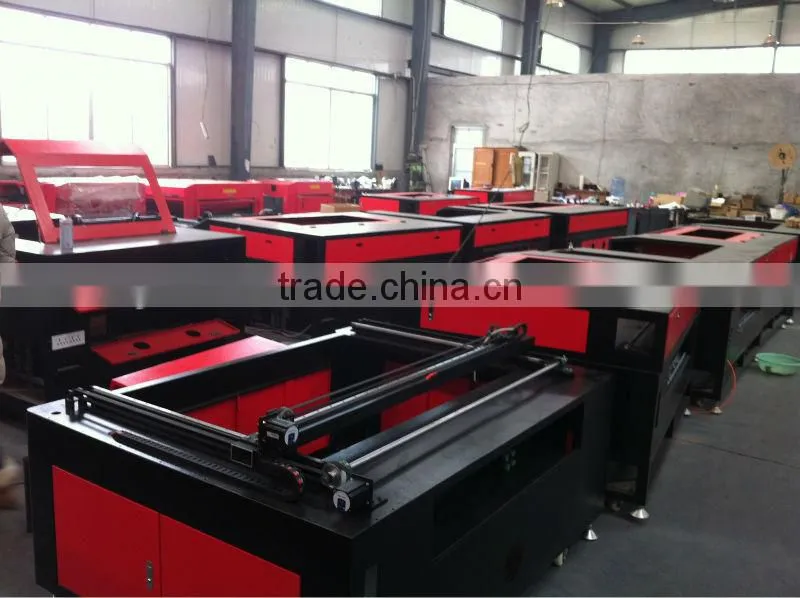

Laser workshop
Main products
Certificate
Work flow
