Specifications
ATC woodworking cnc machine1)panasonic servo,8 tools auto changing
2)vacuum table,Italy HSD spindle 8kw
3)servo motor

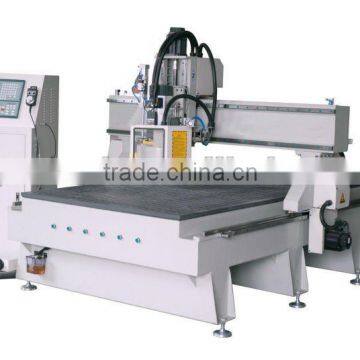

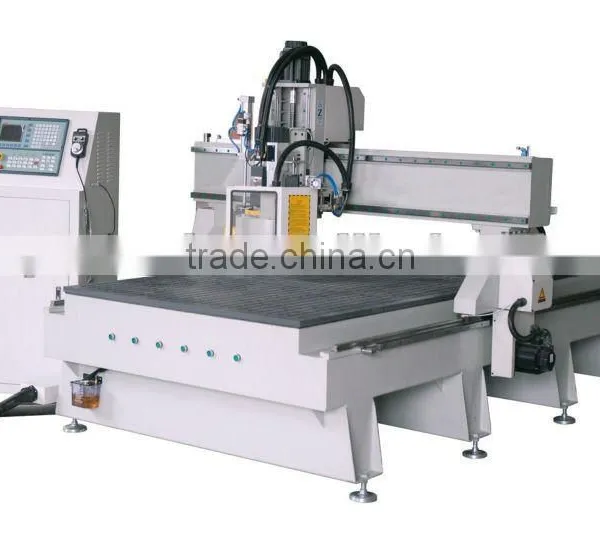

XJ1325 High-technique ATC woodworking CNC machine
Application:

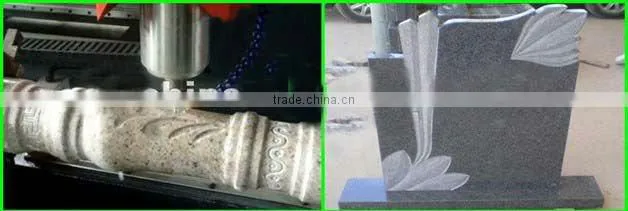

The stone industry: can of marble, granite, marble, etc are carved stone material processing
Woodworking industry: wave board processing, wood door, screen, process casement.
Advertisement industry: advertising logo, sign production, acrylic sculpture cutting, blister-aluminium mould and Craft gift: other such as copper, aluminum, glass, plastic, double color boards, marble, etc material processing production.
Technical specification:
2. Working table:1220x2440mm (4x8ft)
3. Maximum working height:350mm (7.87")
4. Travelling speed: 60m/min, working speed: 25m/min
5. Drum type ATC. Tool magazine capacity of 8 tools. Tool change time of only 8 seconds.
6. Maximum spindle speed:24000rpm/min
7. Suited for complex machining. Designed for machining various parts in small quantities.
8. Provides processing full sheet of panel without additional sawing operation. Also suitable for sample machining.
9. With vacuum system. Germany Becker vacuum pump.
10. Panasonic servo system.
11. Syntec control system.
Madel |
XJ-1325AT |
Power(w) |
8kw/24000r/min |
Power source request |
AC220v 50Hz |
Finishing size |
1300mm×2500mm×300mm |
Carving speed |
≤6000mm/min |
Cutting tool diameter |
Ø3.175/ Ø 4/ Ø 6/ Ø12.7 |
Engine bed resolution |
0.025 |
Mechanical drive |
Ball Screws, dust linear guideway
Gear rack
|
Driver |
Servo system |
Code form |
G code,HPGL |
Software |
Ucancam/type3/Artcam/CAXA |
Weight |
2800kg |
Applications(CE Authorized products):
a) stone
b) Tablet species
c) Building models
d) Signs
e) Metal
f) Wooden models
g) Embossed pictures
Guarantee&Aftersales service: |
guarantee for one year |
24 hour technical support by email or calling |
user friendly english manual and Video CD for manchine using and manitenacing |
