Specifications

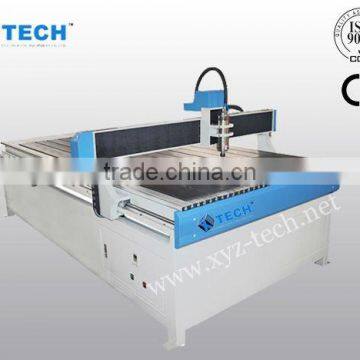

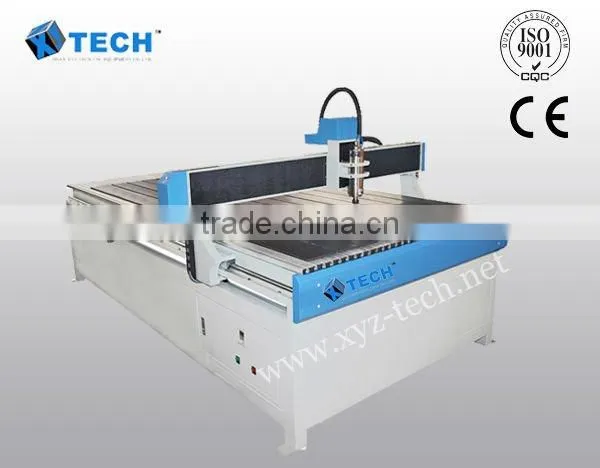

Woodworking CNC router1.High power non-brushing motor
2 .CE&BV&ISO
3.water-cooling
Woodworking CNC router with type3 software
Parameter
Performance parameter | XJ1224 |
X,Y Working area | 1200mmx2400mm |
Z Working area | 150mm |
Resolution ratio | 0.005mm |
Reposition precision | 0.05mm |
Power(not including spindle) | 800W |
Max feeding height | 120mm |
Operation code | G CODE |
Surrounding software | Windows98/2000/xp |
Max carving speed | 6m/min |
Max speed | 8.8m/min |
Working voltage | AC220V |
Spindle power | 2.2KW |
Spindle rotating speed | 0-24000rpm/min |
Drive motor | Stepper |
Features
1. X,Y,Z three-axis all adopt imported linear square orbit, two line sliding track, heavy loading, stable working, long lifetime.
2. X, Y, Z three-axis all have the waterproof, dustproof system, long lifespan.

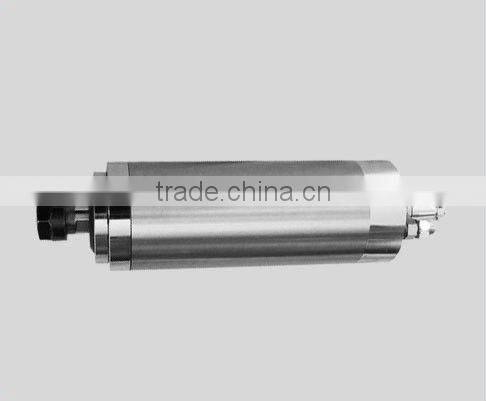

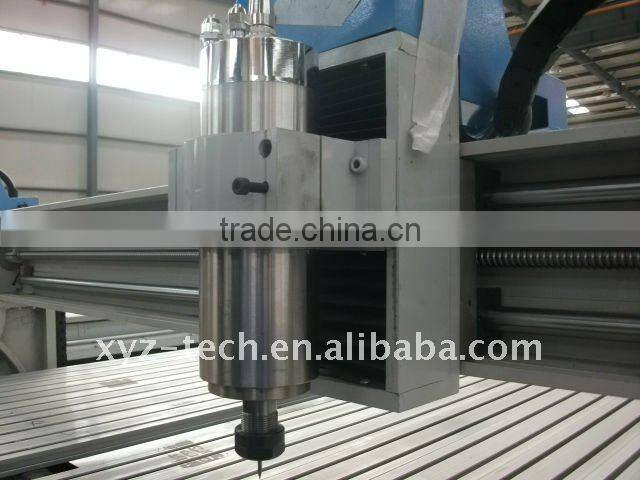

3. Water cooling constant torque spindle with the imported bearing, high power, and low noise.
4. Well compatibility, compatible with Type3/Artcam/Castmate/Ucancam V8 and many other software.
5. Double direction cutters cooling system can prolong the lifetime of cutters.
6. Imported electronic components guarantee the stability of operating.
7. Taiwan transducer with stable output signals.
8. Adopt imported ball screw.
9. Cast iron structure, can load weight up to 1000kg
10. CNC Router Can be configured to the rotation axis machining cylindrical material
Why do customers choose us?
1. At the same quality grade, our products' price is better.
2. At the same products' price level, our service is better
Guarantee & Aftersales Service
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
