Specifications
xj6090 mini PCB CNC Router for Drilling and Milling*Germany Ball Screw;stepping motor
*DSP Control system:USB interface

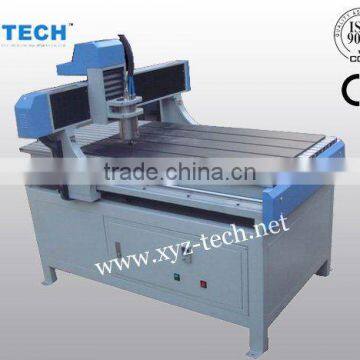

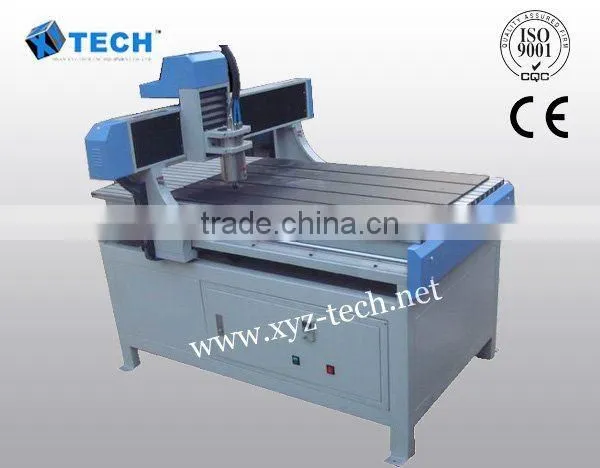

xj6090 mini PCB CNC Router for Drilling and Milling
ing dimension:600*900mm
2. convertion software:coppercam software
3.NCstudio control system
4.M542 drive motor
5.step motor / 800w spindle
THE SPECIFICATIONS OF PCB CNC ROUTER XJ6090
Features: (optional items:Rotary axis),distinctive feature-worktable is moving back and forth
Model : |
XJ6090 |
Machine surface : |
Single/double |
Worktable board : |
600*900*80MM |
Max .speed : |
9000mm/min |
Working speed : |
0-8000mm/min |
Working accuracy : |
6-8mil |
Least line diameter and least line spacing : |
6-8mil |
Drilling depth : |
0.02-3mm |
Drilling diameter : |
0.4-3.175mm |
Drilling holes : |
40-100/min |
Repeat accuracy : |
0.025mm |
The least error of data control drill : |
0.015mm |
Operation system : |
WIN2000/XP |
Means of communication : |
PCI |
Function request : |
Protel PCB document can be directly put in .(gerber) |
Spindle speed : |
24000rpm |
Spindle power : |
800W/400W |
Power supply : |
AC210-240V |
Packing:
Pack dimensions: 750*1000*750 mm
Net weight: 70kg (with bracket)
Gross weight: 100 kg
Applications:
Can be used for advertisement engraving, advertisement cutting, stone processing, Cu
and AL molding, mold manufacturing, wood processing, craft manufacturing, light box
cutting, building mold cutting, indoor decoration cutting, light equipment mold processing,
sign and mark manufacturing, acrylic board processing, as well as stamp cutting and
PCB cutting
The most boring ting to do is to make the PCB. Though now most people give the boring affairs to the PCB factory, yet it is indeed too long to wait for about three days or a week. New inspiration for a design is usually given up because of the trouble. While a PCB making machine can finish making a piece of PCB only in a few minutes, which can let your inspiration instant come true.
Main features:
1.High efficiency: It merely need a few minutes to make a piece of PCB.
2.Accuracy: The min error of numerical control drill hole less than 1mil (0.025mm).
3.Automatism and convenience: Simple software hardware installation ,Operate the manufacturing process by striking the function keys of operation system.

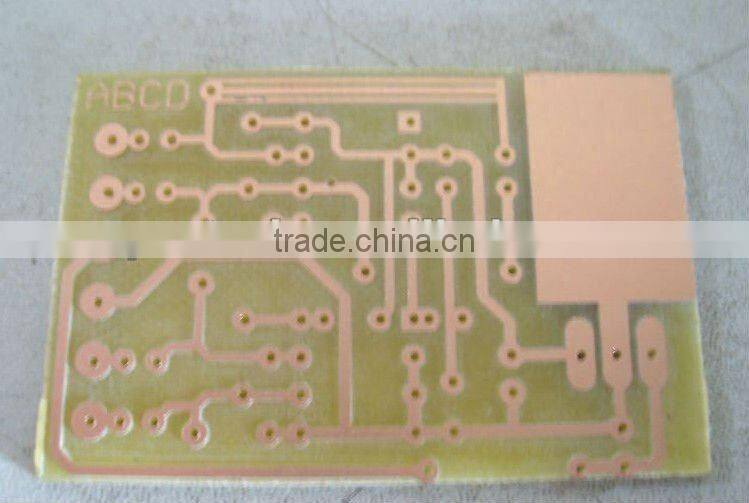

xj6090 PCB plate making machine
High efficiency, high precision, small volume, simple operation, It is widely used in junior college, scientific research organization, arms-industry, electron fan, electron factory.
Product advantage:
Advanced: Anti-corrosion PCB making process, the plate making and drill process can be finished in one machine.
High efficiency: A piece of usual PCB can be made in a few minutes.
Accuracy : The error less than 1mil
Convenience: Simple software hardware installation. You can choose operate the manufacturing process by striking the function keys of operation system
Install the PROTEL.PCB format into machine drive program—NC, plate making, drill, edge, total numerical control operation, one-time shaping. With the control of computer software, the drive motor of X, Y, Z-axes begin to work accordingly and the main shaft motor can be drove according to program order. The main shaping motor drives the cutter to process the workpiece that the user requires. The technology of CNC adopts the physical engraving technique. The made plate don’t pass the process from wet to dry and the process from cold to hot. Mechanical motion can be executed strictly according to order. The situation of conglutination and dark cracks can be discerned in naked eye but not with magnifying glass. Moreover, the software can be operated simply.
