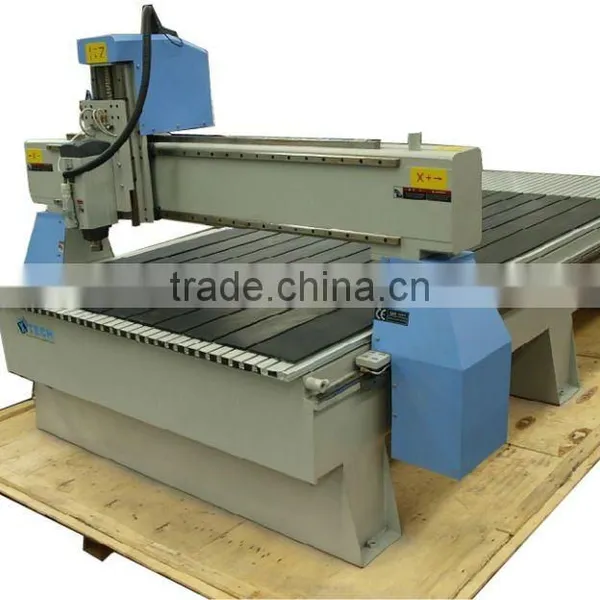

Help CenterJinan XJ1325 Professional CNC Router for Mould Processing
Related Products
-
XJ3030 DIY CNC Router Aluminum PartsUS$ 100 - 3,000MOQ: 1 Set -
XJ3636 Aluminum Cnc Machining PartsUS$ 100 - 3,000MOQ: 1 Set
-
XJ3636 Cnc Router DIY Aluminum PartsUS$ 100 - 3,000MOQ: 1 Set
-
XJ6090 Cnc Router DIY LatheUS$ 100 - 3,000MOQ: 1 Set
-
XJ6090 Diy and Hobby Cnc LatheUS$ 100 - 3,000MOQ: 1 Set
Specifications
cnc router for Mould Processing1) high precision as required by clients.
2) NC-Studio Control or DSP off-line control
cnc router for mould processing
Furniture processing industry, wood furniture engraving, wooden artcrafts, 3D Carve work,MDF and PVC Board Processing, Advertising Signs, Logo's and Brands, Acrylic board Processing, Tablets & Calligraphy, Architecture Mould, Embossments, home and business Decorations.
Description:
>The Lathe bed is one-piece cast Iron and will never warp.
>Two-motor drive system ensures quick, even, stable operation
>The vacuum cleaning system offers a clean working environment and better quality
>High performance Subdivision stepper motor operates smoothly at maximum speed.
>Highly accurate gears allow for engraving characters as small as 1.5mm
>The unique calculating system realizes speedy, accurate, curvy operation
>Large Water-cooled High-Frequency High-Power Motor features low noise, constant speed, and long operational life
>12 Month Warranty on parts and Labour
Technical specification:
| Model | XJ1325/XJ2030 | |
| Working Area | 1300×2500×200mm/ 2,000×3,000×200mm | |
| Spindle Motor | 3kw/4.5kw Inverter-driven spindle motor cooled by water (or air for option) | |
| Working Mode | Stepper motor with associated leadshine drive | |
| Control System | DSP off-line control panel with USB interface(128MB) or PCIMC control system | |
| Drive Mechanism | Taiwan Yintai Square Linear Rail for three-axis and Gear-wheel on x,y axis | |
| Table Surface | Vacuum table & T-slot extrusions for option | |
| Frame | wholly steel structure | |
| Motion Positioning Accuracy | ±0.03/300mm | |
| Repositioning Accuracy | ±0.05mm | |
| Max Motion Speed | 50,000mm/min | |
| Max Engraving Speed | 30,000mm/min | |
| Rotating Speed of Spindle | 2,4000rpm | |
| Z-axis setting | Auto Z origin tool high sensor | |
| Dictate Formate | G code, *.u00, *.mmg, *.plt | |
| Operating Voltage | 3phase 380v |
|
| Software | Type3 copy(with tutorial video for free), Wentai (Ucancam V9)// ArtCAM software | |
| Packing Size | 3250×2150×1800mm | |
| Lubrication System | Oil lubrication system | |
| Net weight/ Gross Weight | 1227kg/ 1240kg | |
| Noise Level | Racing | LAeep dB(A)72±1 |
| Engraving | LAeep dB(A)80±2 | |
| Engraving Peak | LAeep dB(C)95 | |
| Optional Devices | Dust Collecting System (2.2kw or 3kw for option) | |
| Vacuum Table with Air Pump (For XJ1224,1325) | ||
| Mist Sprayer and flume | ||
| Rotary device with Dia 100mm/200mm | ||
| DSP System w/Portable Control Pad (128MB) | ||
Accessories: 12pcs of Cutters, Collets,Control Card. Spanner x 3, Brush, Double sided tape, Power cord, USB data cable.
Welcome you Trial Order !!!
