Specifications
xj3030 mini PCB CNC Router for Drilling and Milling*Germany Ball Screw;stepping motor
*DSP Control system:USB interface

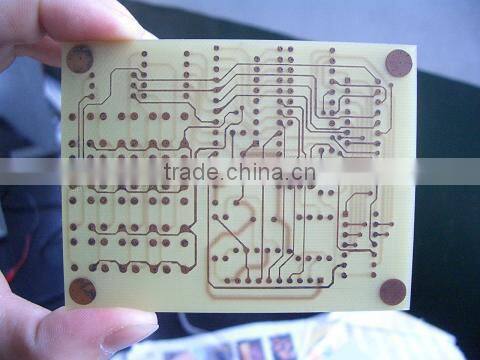

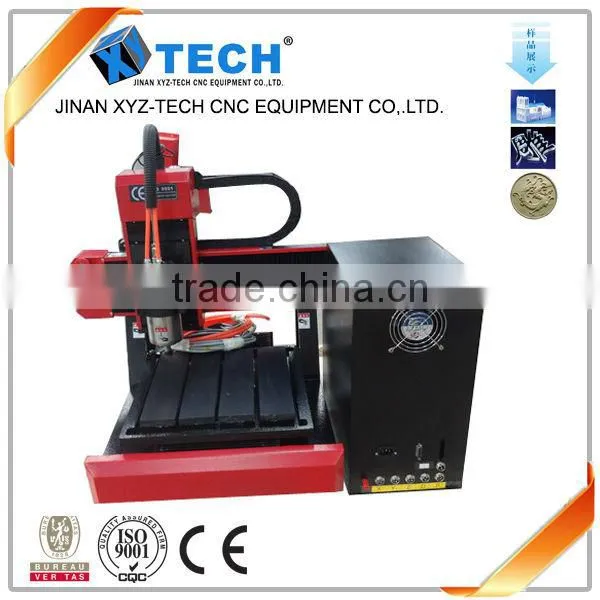

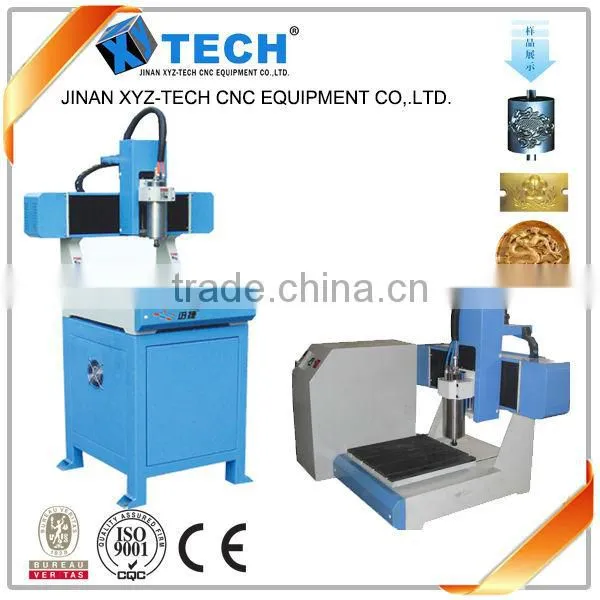

xj3030 mini PCB CNC Router for Drilling and Milling
1. Technical parameters
Model |
XJ-3030 |
|
Working Area |
300*300*80mm |
|
Spindle Motor |
1.5kw/2.2kw water-cooled spindle |
|
Working Mode |
Stepper motor |
|
Control System |
DSP(128MB) or PCIMC control system |
|
Drive Mechanism |
German imported ballscrew for x,y,z axis |
|
Table Surface |
T-slot extrusions |
|
Frame |
Cast aluminum |
|
Motion Positioning Accuracy |
± 0.02/300mm |
|
Repositioning Accuracy |
± 0.01mm |
|
Max Motion Speed |
8,000mm/min |
|
Max Engraving Speed |
5,000mm/min |
|
Rotating Speed of Spindle |
2,4000rpm |
|
Engraving Tools |
3.175mm, 4mm 6.00mm |
|
Dictate Formate |
G code, *.u00, *.mmg, *.plt/HPGL/NC |
|
Operating Voltage |
AC220/50Hz |
|
Software |
Type3 original with Dongle or Wentai , ArtCAM software/ARTCAM/CAXA |
|
Packing Size |
1500×1170×1300mm |
|
Net Weight |
161kg |
|
Gross Weight |
205kg |
|
Noise Level |
Racing |
LAeep dB(A)72±1 |
Engraving |
LAeep dB(A)80±2 |
|
Engraving Peak |
LAeep dB(C)95 |
|
Optional Parts |
Dust Collecting System |
|
| ||
Rotary Device | ||
Mist Sprayer | ||
Flume | ||
DSP System w | ||
Features and Specialties:

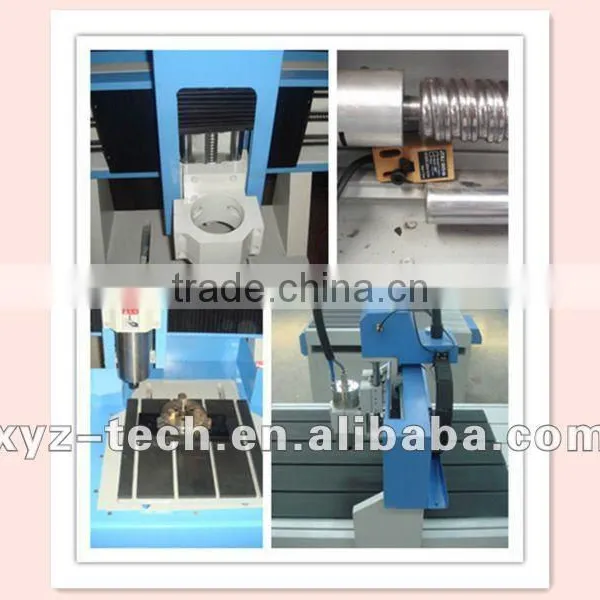

1 Iron cast wholly frame, double- screw auto eliminating ball screw, floor-type linear guide transmission.
2 High power water cooling brushless motor
3 stepper motor could enhance work efficiency.
4.break-point memory pointesfor 10 pcs, reducing material waste.
5 High compatibility, applicable for CNC software: type3, Artcam, Castmate, Pore, Weitai, variable CAD/CAM etc. It is easily to process relief sculpture, shadow carving, three dimension characters in fancy style etc.

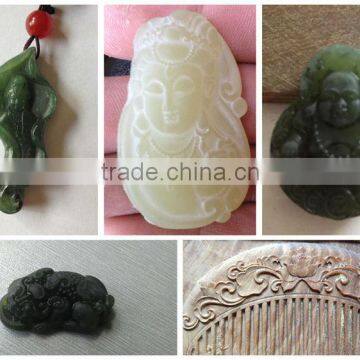

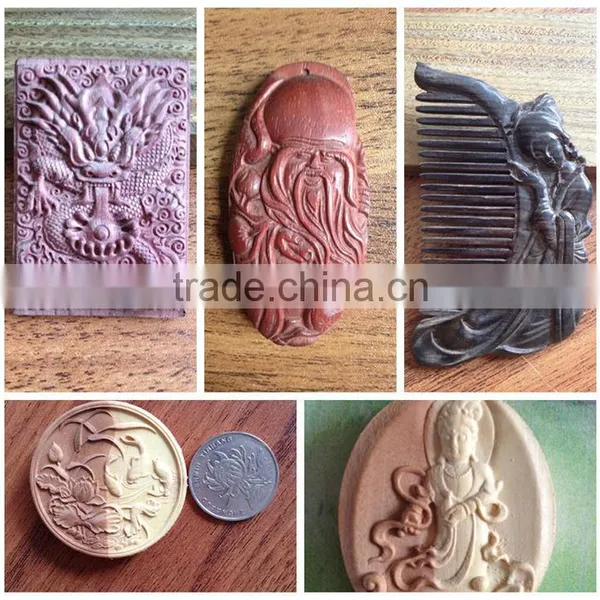

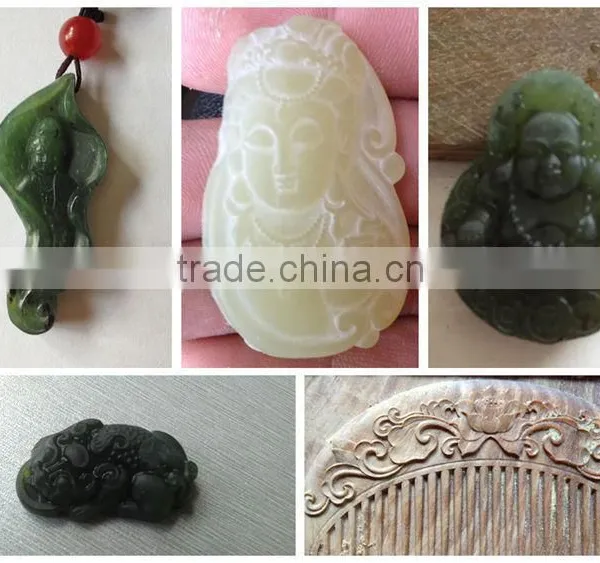

Applicable material:
Microlite,.natural grantie, seeing stone, bowlder, marble, rostone, glass, grass, aluminum, iron, plastic and wood etc.
Applicable industry:
a) stone
b) Tablet species
c) Building models
d) Signs
e) Metal
f) Wooden models
g) Embossed pictures
Our machine | |||
Cnc router |
Laser machine |
||
Small/desktop cnc router |
XJ3030 XJ3636 XJ6090 |
Laser engraving machine |
XJ3050 XJ6040 XJ6090 |
Advertising cnc router |
XJ1212 XJ1218 XJ1224 |
||
Stone/metal processing cnc router |
XJ6015 XJ1212 XJ1218 |
Laser cutting machine |
XJ1280 XJ1390 XJ1410 |
Woodworking cnc router |
Xj1224 XJ1325 |
XJ1318 XJ1325 |
|
WE ALSO ACCEPT CUSTOMIZATION ,WELCOME SPECIAL REQUIEMENT | |||
3. Guarantee & Aftersales Service
Comprehensive guarantee for half year
24-hour technical support by email or calling.
User-friendly English manual for machine using and maintainin.
offer follow speed up your progress
1.What kind of material do you want to process?
2.What is the dimension of your working material?
Based on the above analysis, we will recommend the most suitable machine and best solution for you.
Remark:
We have detailed installation and operation CD as well as full set of User's Manual in English to teach you how to install and operate the machine.
