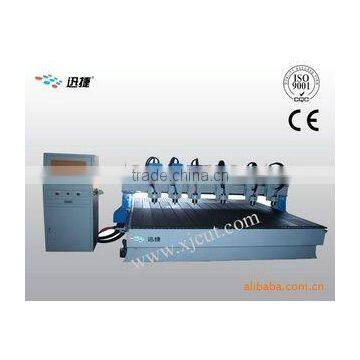

XJ1218D Multi heads wood working machine

Specifications

multi-spindle cnc router
1.six spindles
2.vacuum table and dust collect
3.imported linear way Hiwin or PIM
4.rack and gear

Technical parameters:

Spindle power: 1.5 KW / 400 HZ / 24000 RPM/min

The power rating: 700-800 W

Power supply requirements: Ac380v/220V /110v   frequency 50 HZ

Empty process speed: 0-6500 mm/min

Cutter diameter: 3.175/4/6 mm

Machine tools resolution: 0.02 mm

Mechanical drive: FangGui rack driving

Code format: G HPGL NC code

Software: wen tai/TYPE3 / ARTCAM/CAXA



Characteristics

1)Many spindle engraving: in the same pattern can be more spindle working at the same time, greatly enhance the processing speed, also can a single spindle work independently and control the cost of production
2)This machine adopts the intime linear guide to Taiwan, all three axis party rail for heavy cutting, USES the international brand micro step subdivision stepping motor with high speed and drive, make sure the machine long time high-speed operation

3)The embedded PCI CNC system and computer seamless combination machine, the operation is simple, the unique intelligent budget rules, make motor give full play to the potential, and long time to worry about work, have without electricity for carving, processing time prediction etc. Function.



Application:

Woodworking industry: wave board processing, wood door, screen, process casement.

Advertisement industry: advertising logo, sign production, acrylic sculpture cutting, blister-aluminium mould and other advertising materials reincarnation the manufacture of products.
