Specifications
Leadshine driverYasukawa/Panasonic servo motor
German REXROTH ball screw with two nuts and imported guidTaiwan HIVIN Linear

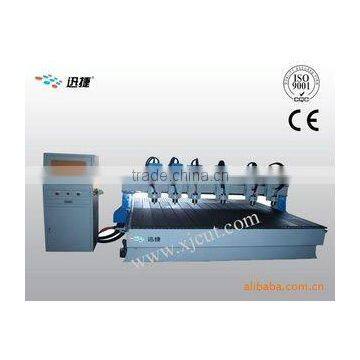

Multi-spindle CNC cutting machine XJ-1318
Product Features:
1. German ball screw nuts; imported guide;
2. Linear guide ensures a longer life of the machine;
3. High-speed driver;
4. Axle X with dust-proof system, and this ensures the good performance of the machine;
5. The Antique Furniture CNC Router continues to work after the point-break and blade-brake, holding as many as 9 points;
6. Strong compatibility: CAD/CAM softwares, including type 3,artcarm,castmate,proe,corelerow...
7. Wide Range of Use: Advertising, mould, stone, architecture model..
Features of XJ CNC cutting machine:
1 The solderless joint athe bed ensures a long term stable working.
2 Equiping with high speed adjustable lifting up-down platforn can really achieve big thickness material processing and rotary engraving.
3 Equiped with 2 to 5 heads, the machine can work in several spindles meanwhile, time saving and high efficiency.
4 Be compatible with CAD/CAM software like Type3, ArtCAM, Wentai, Proe etc.
Technical parameters of XJ wood machinery:
Model XJ-1318
X-Y-Z axis working area 1, 300*1, 800*150mm
Working table moving size 400mm
Resolutions 0.0254mm
X-Y movement Germany imported Rack and pinion, gear drive
Z movement Germany imported Ball screw drive
Max. Speed 60, 000mm/min
Spindle 2.2kw, 3Kw, 4.5kw, water cooling (air-cooling for option), 24, 000rpm
Drive motors Stepper(optional for servo)
Working voltage AC 380V/50-60Hz, 3- phase
Command code G code
Computer interface USB 2.0
Collet 3.1756mm, 12.7mm
Software Type 3, Wentai, ArtCAM software
Controls DSP system with special stand control panel
Packing 1, 400kgs
Optional device Rotary device
DSP system w/portable control pad(128MB)
Vacuum holding, AC380V/50-60Hz, 5.5Kw. 3 phases
Dust collector
Oil lubrication system
Samples:
