Specifications
CNC Router with high z axis:1multifunctional application
2high cost effectiveness
3small body and durable
4Economic

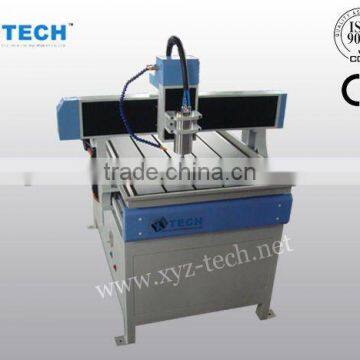

XJ6090 CNC Router with high z axis
1. Features & Specifications:
1)Adopting linear rails guide ways; the machine operates smoothly and accurately bearing heavy load and long working life.
2)Advanced structure design and integral cast frame make performance stably and durably.
3)Adopting the transmission way of ball screw to make sure processing accuracy.
4)Cabinet-structure gantry with good performance against pressure and deformation.
5)Adopted advanced DSP handles operating system
2. Parameter:
Model | XJ-6090(600x900mm |
Spindle motor | 1.5KW, 2. 2kw spindle motor, cooled by water |
Engraving speed | 8,000mm / min |
Rotation speed of spindle | 24000rpm/min |
Engraving tools | 3. 175 ,4.00 ,6.00mm |
Format dictates | G-code |
Ball screw | Two-nut rolling ball screws from Germany |
Resolution | 0. 02mm |
High Speed | synchronization of processing curves and straight lines can be up to speed of 12m / min |
Massive Memory Capacity | 128MB, Store 20 files simultaneously |
Quick Data Transmission | USB interface, work without computer |
Multi-Compatibility | Be compatible with CAD / CAM |
Software | type 3 / Artcam / Casmate / Proe / UG / Artgrave etc. |
Easy Operation | Restore from power off, continuation on break points, anticipates working time, User-friendly designing |
3.Application field
Sign board process, mould, bronzing mould, motor, trim injection mould, shoe mould, badge, pattern mould, art carve, dial.
4.Guarantee & Aftersales Service:
1)Guarantee for one year
2)24-hour technical support by email or calling
3)User-friendly English manual and Video CD for machine using and maintaining
