Specifications
1Break point memory for 10 pcs2 German imported bearing screw
3 accept customized
4 CE certificate
1.Features& spcialities
1. Integrated optimized design and high quality aluminum alloy frame, which ensure solid and warp-proof
2. unspace ball screw using Germany technology, aligning with high power driving motor and imported coupling, that make movement stable and work precise in a long time.
3. high power non-brushing motor, N-CVT, power saving, lower noise, strong cutting capability, which ensure a batch process for a long time.
4. Restoring function enable the machine stop running automatically while power off, and automatically restart to work when power on,and also can store the break point from which for later operation to start, with the function of anticipating working time, auto tool sensor, the rotating speed and processing depth could be adjusted optionally.
2.Technical parameter
Model |
XJ1215 |
Working range |
1200*1500*100mm |
Reposition accuracy |
0.02mm |
Working speed |
8m/min |
Working delicacy |
±0.01mm |
Spindle power |
1.5/2.2/3kw(optional). Invert-driven spindle motor cooled by water(or air) |
Driving mode |
Step motor |
Spindle rotating speed |
0~24000rpm/min |
Working voltage |
110v/220v/380v 50Hz/60Hz |
Cutter |
Φ3.175, Φ6, Φ12.7 |
Command |
G-code*mmg*plt.*u00 |
Control system |
DSP(128MB) or PC/MC control system |
Drive machine |
Gear-wheel on x.y.z axises |
3.Application field
Sign board process, mould, bronzing mould, motor, trim injection mould, shoe mould, badge, pattern mould, art carve, dial, font mould, mold, sign and label etc

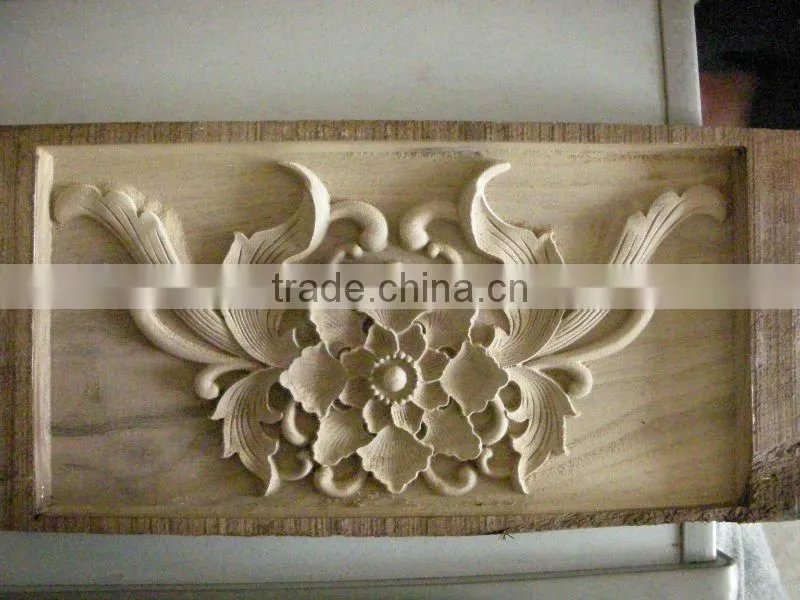

5.Sample display
