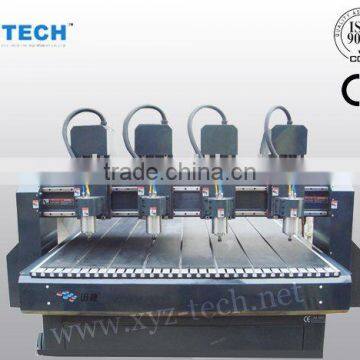

Multi- head CNC Router with 2.2KW *4 Inverter-driven spindle motor cooled by water ,CE authorized products

FOB Price

US$ 100 - 3,500 / Set

70 Sets(Min. Order)

Port Qingdao
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	XYZ-TECH
Model Number	XJ1212

Product Description

double-head CNC router CE authorized.

proper features:

1) Integral cast-iron lathe bed, firm and non-deforming ,high rigidity and high accuracy,good performance and durability.

2) Unique multi-spindle design, quantity of machine heads and power of spindle can be choosed according to the customers requirements. The distance between spindles can be freely adjusted according to the workpiece deing processed.

3) The machine can complete the workload of several machines at the same time, saving production time and cost, enhancing the working efficiency.

Applicable material:

natural granite, crystalline stone, marble, jade, blue stone and various manmade stone type, glass type, copper, iron, plastic and wooden materials of stone and metal processing industries

technical parameters:

Model		XJ-1212
Working Area		1,200×1,200×100mm
Spindle Motor		2.2KW *4 Inverter-driven spindle motor cooled by water (or air for option)
Working Mode		Stepper motor
Control System		DSP(128MB) or PCIMC control system
Drive Mechanism		German imported ballscrew for x,y,z axis
Table Surface		T-slot extrusions
Frame		Cast wholely by Iron
Motion Positioning Accuracy		±0.02/300mm
Repositioning Accuracy		±0.01mm
Max Motion Speed		12,000mm/min
Max Engraving Speed		9,000mm/min
Rotating Speed of Spindle		2,4000rpm
Engraving Tools		3.175mm, 4mm 6.00mm
Dictate Formate		G code, .u00, .mmg, *.plt/HPGL/NC
Operating Voltage		AC220/50Hz
Software		Type3 original with Dongle or Wentai , ARTCAM/CAXA
Packing Size		1850×1710×1400mm
Net Weight		370kg
Gross Weight		420kg
Noise Level	Racing	LAeep dB(A)72±1
	Engraving	LAeep dB(A)80±2
	Engraving Peak	LAeep dB(C)95
Optional Parts		Dust Collecting System

		Rotary Device
		Mist Sprayer & Flume
		DSP System w/Portable Control Pad (128MB)

Guarantee & Aftersales Service:

Guarantee for one year

24-hour technical support by email or calling

User-friendly English manual for machine using and maintaining
