Multi-spindle Cnc Router Machine With 500mm Up-down Table Range

Name: Multi-spindle Cnc Router Machine With 500mm Up-down Table Range
Brand: XYZ-TECH
SKU: 144438812
Availability: InStock

US$ 200 - 9,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Jinan XYZ-Tech CNC Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name XYZ-TECH

Model Number xj-1224*3

Specifications

multi-spindle router,high performance
1.1200*2400mm working area
2.2.2Kw*3 spindle
3.500mm up-down range
4.rotary devic

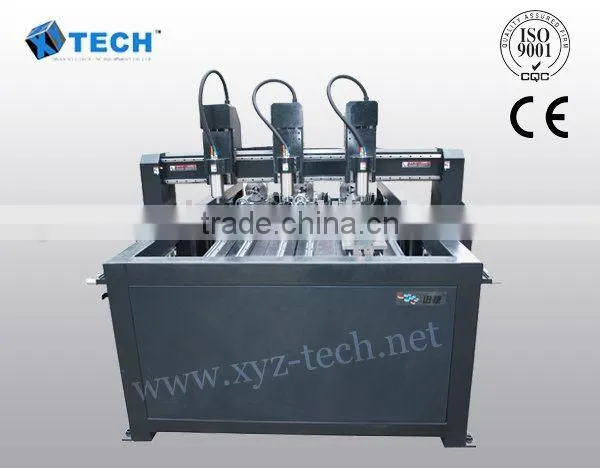

xj-1224 multi-spindle router

Applicable to process wooden products, cylinder objects, stone, PVC, and other bid thickness material.

Proper features:

1. The solderless joint athe bed ensures a long term stable working.

2. Equiping with high speed adjustable lifting up-down platform can really achieve big thickness matarial processing and rotary engraving.

3. Standard allocation DSP off-line control wjth 128M memory and extended by USB flash stick.

4. Be compatible with CAD/CAM software like Type3, ArtCAM, Wentai,Proe etc.

Technical parameters:

Model	XJ-1224
X-Y-Z axis working area	1,2002,400150mm
Working table moving size	500mm
Resolutions	0.0254mm
X-Y movement	Germany imported Rack and pinion ,gear drive
Z movement	Germany imported Ball screw drive
Max. speed	60,000mm/min
Spindle	2.2kw3 ,3Kw3 ,4.5kw*3, water cooling (air-cooling for option), 24,000rpm
Drive motors	Stepper(optional for servo)
Working voltage	AC 380V/50-60Hz, 3- phase
Command code	G code
Computer interface	USB 2.0
Collet	3.175, 6mm, 12.7mm
Software	Type 3,Wentai, ArtCAM software
Controls	DSP system with special stand control panel

Optional device	Rotary device
	DSP system w/portable control pad(128MB)
	Vacuum holding, AC380V/50-60Hz,5.5Kw.3 phases
	Dust collector
	Oil lubrication system
