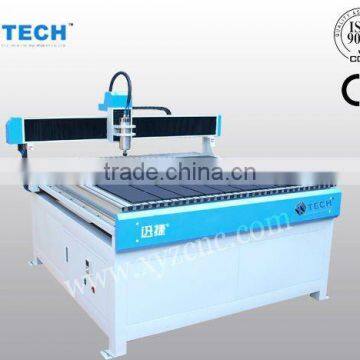

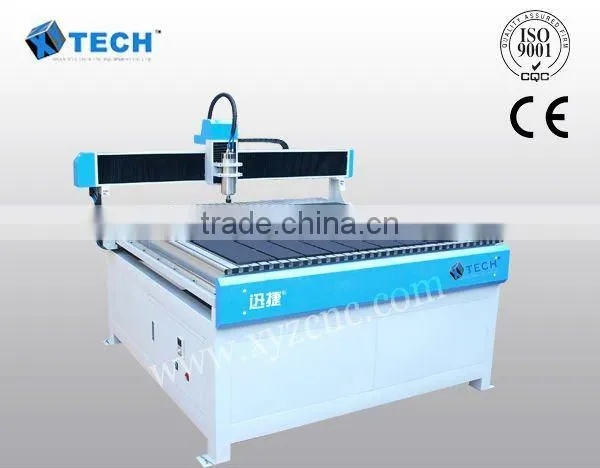

XUNJIE CNC Router Germany Ball Screw
- Qingdao
- Credit Card
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | XYZ-TECH | |
| Model Number | XJ1212 |
Product Description
Specifications
CNC Engraver1.Imported linear guide way.
2.CE certification.
3.Iron cast whole frame
4.break-point memory for 10 pcs
CNC Engraver ,CE Authorized Products,
this is the newest model ,with section portal frame and integral cast iron frame , more scientific to ensure ensure the parallelism ,verticality and concentricity and grestly increase the precision and speed of the engine bed.
Features:
- Integral cast-iron frame, embedded linear, much more stable and solid structure.
- Rolling ball screw from Germany, two nut eliminating clearance, advanced fixing mode of three bearings.
- Configured 1.5kw inverter-driven spindle motor cooled by water
- Adopt the most advanced DSP controlling system
- Easy operation, sturdy, durable, reliable performance, good price,
- Dust-proof ,water-proof , up-down working table ,rotary device ,servo system system are optional
Application field:
Sign board process, mould, bronzing mould, motor, trim injection mould, shoe mould, badge, pattern mould, art carve, dial, font mould, mold, sign and label etc..
Parameters:
Model | XJ-1212 (1200x1200mm) |
Spindle motor | 1.5KW, 2. 2kw inverter-driven spindle motor cooled by water |
Engraving speed | 6000 approximately 12000mm / min |
Rotation speed of spindle | approximately 24000 RPM |
Engraving tools | 3. 175 4 6 (optional) |
Format dictates | G-code |
Ball screw | Two-nut rolling ball screws from Germany |
Resolution | 0. 01mm |
High Speed | synchronization of processing curves and straight lines can be up to speed of 12m / min |
Massive Memory Capacity | Standard Capacity of 128MB, Store 20 files simultaneously makes processing at ease. |
Quick Data Transmission | USB interface, work without computer, not occupying computer resources . |
Multi-Compatibility | Be compatible with popular CAD / CAM |
Software | type 3 / Artcam / Casmate / Proe / UG / Artgrave etc. |
