Help CenterChina-made 600*400mm Acrylic/wood/plywood/mdf/rubber/stone/plastic Laser Engraving Equipment With CE Certificate
Related Products
-
XJ1410 CO2 Laser Engraving and Cutting Machine CEUS$ 1,000 - 9,000MOQ: 1 Set -
Hot Sale Mini Desktop Laser Engraver for Paper,acrylic,wood,glass,carton,stone,rubber,mdf,leatherUS$ 1,400 - 2,000MOQ: 1 Set
-
XJ6090 OLD TYPE LASER MACHINEUS$ 10 - 10,000MOQ: 1 Set
-
China-made Professional CO2 Leather Acrylic Paper Rubber Fabric Hobby Laser Cutting MachineUS$ 1,000 - 5,000MOQ: 1 Set
-
Factory Direct Sale New Style Wood Acrylic CO2 Laser Engraving Machine Desktop Laser Cutting MachineUS$ 4,000 - 5,000MOQ: 1 Set
Specifications
laser engraving equipment:Adopt RECI CO2 Laser Tube with 10,000 hours life-span
Delicate engraving by powerful laser tube
China-made 600*400mm acrylic/wood/mdf/plastic/plywood/stone/rubber laser engraving equipment with CE certificate
Features and specialities:
1) Reasonable Gantry Structure, Stable laser Path, the whole structure is very firm.

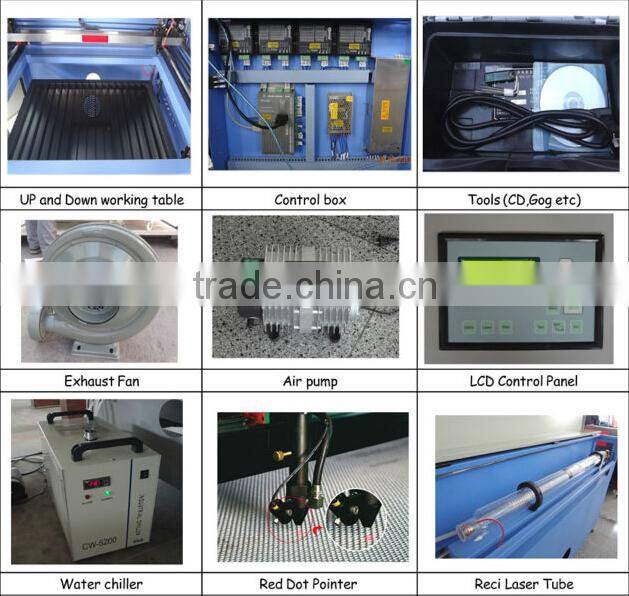

2) Machine consists of solid laser carving machine main parts, RECI CO2 Laser Tube with assoicated laser power supply, water-cooling system. It has the advantage of compact structure, easy operation, stable optical path and other unique features.
3) We adopt RECI CO2 Quality Laser Tube with Associated laser power supply. Life-span is 10,000hours' working time, 300days warrantited.
4) Welcome you trial order.
Specifications:
Machine Performance(CE Authorized products): | |
| Laser-type | Hermetic and detached CO2 laser tube |
| Laser-power | 40W(60W/80w for option according to the processing work) |
| Cooling mode | Circulating-water-cooling |
| Power adjusting | 0-100%controlling,no segment and adjusting by software |
| Machine control and drive | Speedy DSP controlling, steper motor |
| Max engraving speed | 1200mm/s |
| Max cutting speed | 500mm/s ( up to the processing materials) |
| Repeating location/Resolution | ±0.01mm / 1000dpi |
| Minimum Character | Chinese character 1.5*1.5mm, english letter 1*1mm |
| Max power | 750W |
| Adjustable up-down distance of laser head | 30mm |
| Working travel area | 600*400mm, 400mm width with infinity material-feeding |
| Table area | 650*450mm |
| Up-down range of working table | mechanical 280mm, 260mm with vacuum table |
| Working voltage | AC220V/110V 50HZ/60HZ |
| Working environment | Temperature: 0-45,Humidity: 5%-95%,and congeal-water removed |
| Controlling software language | Simplified Chinese,complicated Chinese, English, and procuring of multi-languages |
| Dictate format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw direct outputting |
| Software operating environment: Windows 98/ XP/ VISTA | |
| Accessories: | |
| "RD-lasercut" original software and necessary attachment like exhaust fan,air-pump, water-pump,air pipe,data cable,power cord.etc. | |
| Guarantee&Aftersales service: | |
| RECI CO2 laser tube 10,000 hours' working time | |
| The exhaust guarantee for one year | |
| 24 hour technical support by email or calling | |
| User-friendly english manual and Video CD for machine using and maintaining | |

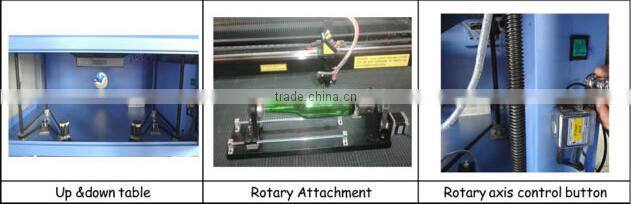

Optional Device:
1) Rotary attachment with Dia 130mm(Chuck Fixing).
2) Motorized up-down table
3) Red-light position
4) Vacuum Table
5) DSP Off-line operation with usb flash
Applications:
1) Advertising industry:
a) Double-colored board carving
b) Organic glass carving and cutting
c) Label carving
d) Crystal cup carving
e) Warranty signed carving
2) Carved gifts and crafts industry:
a) Wood
b) Bamboo
c) Ivory
d) Bone
e) Leather
f) Marble
3) Packing and printing industry:
a) Rubbery board
b) Plastic board
c) Double-layered board
d) Model cutting board
4) Leather clothing industry:
a) Complex characters and pattern carving
b) Cutting on hypoderm
c) Synthetic leather
d) Man-made leather
e) Cloth
5) Architectural model industry:
a) ABS board cutting
b) Model carving
6) Production totem industry:
a) Appliance signs
b) Anti-fake commodities marking
Samples made by our CO2 Laser Machine :
FAQ:
What’s the guarantee, in case the machine breaks down?
The machine has one year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
How's the payment?
Telegraphic Transfer(T/T).
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Jinan XYZ-TECH CNC EQUIPMENT Co.,Ltd specialized in laser engraving machine, laser cutting machine, CNC router, Laser marking machine etc. we are looking for agents and hope to cooperate with you
Looking for agent and distributors all over the world !
