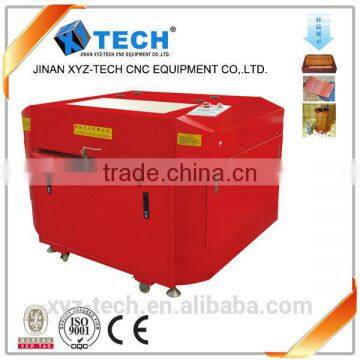

XJ6090 acrylic laser engraving machine(CE Certificate)
Special Features:
1) Adopt advanced DSP digital control system,international standard laser power supply, integrated framwork style ,high stability and high speed, usb2.0 interface output can supoport off-line working.
2) Transmit files directly from Coreldraw,AutoCAD.
3) The optimizing and decent new design,ensuring the processing speed up to 1000mm/s, low noise.
4) Big power and high stability laser tube,imported lens and mirror, long-life-span,one step cutting can reach 30mm thickness on acrylic.
5) Imported linear rail and high quality tapes for transmission, equiping speed-down structure,ensure high quality and high stability cutting
6) Automatic up-dwon table, rotary device,red dot position,vacuum system etc. are optional.
Machine Performance: CE Authorized | |
| Laser-type | Hermetic and detached CO2 laser tube |
| Laser-power | 60W(40w,80w for option) |
| Cooling mode | Circulating-water-cooling |
| Power adjusting | 0-100%controlling,no segment and adjusting by software |
| Machine control and drive | Speedy DSP controlling, steper motor |
| Max engraving speed | 1200mm/s |
| Max cutting speed | 500mm/s |
| Repeating location/Resolution | ±0.01mm/1000dpi |
| Minimum Character | Chinese character 1.5mm, christcross-row 1mm |
| Max power | 750W |
| Adjustable up-down distance of laser head | 30mm |
| Working travel area | 600*900mm, 900mm width with infinity material-feeding |
| Table area | 650*950mm |
| Up-down range of working table | mechanical 300mm |
| Working voltage | AC220V/ 50HZ |
| Working environment | Temperature: 0-45,Humidity: 5%-95%,and congeal-water removed |
| Controlling software language | Simplified Chinese,complicated Chinese, English, and procuring of multi-languages |
| Dictate format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw direct outputting |
Optional Device:
Rotary attachment,
Motorized up-down table,
Red-light position,
Vacuum Table,
DSP Off-line operation with usb flash.
Application:
1) Advertising industry:
a) Double-colored board carving
b) Organic glass carving and cutting
c) Label carving
d) Crystal cup carving
e) Warranty signed carving
2) Carved gifts and crafts industry:
a) Wood
b) Bamboo
c) Ivory
d) Bone
e) Leather
f) Marble
3) Packing and printing industry:
a) Rubbery board
b) Plastic board
c) Double-layered board
d) Model cutting board

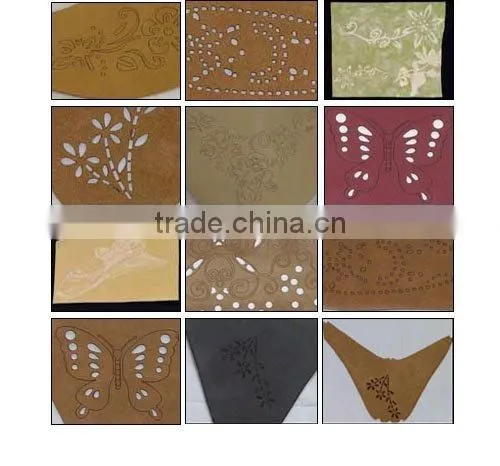

4) Leather clothing industry:
a) Complex characters and pattern carving
b) Cutting on hypoderm
c) Synthetic leather
d) Man-made leather
e) Cloth
5) Architectural model industry:
a) ABS board cutting
b) Model carving
6) Production totem industry:
a) Appliance signs
b) Anti-fake commodities marking
