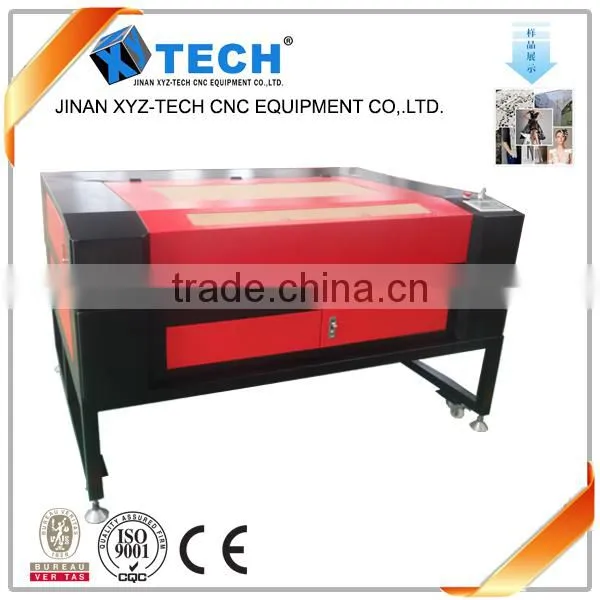

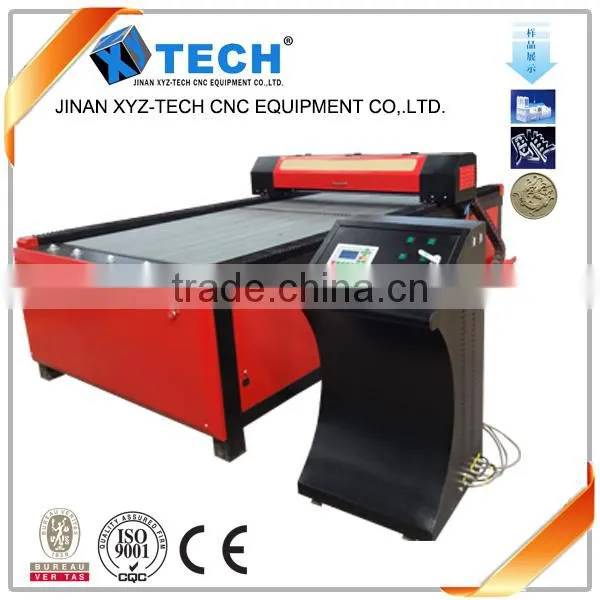

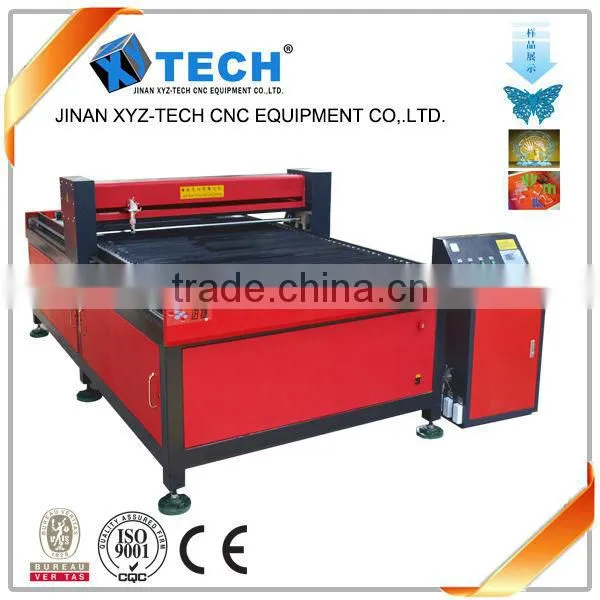

Jinan hobby home use low cost XJ1325 Acrylic Wood laser cutting and engraving machine price

Machine Model

 XJ-1325

Working Range

1300*2500mm

Laser-type

Beijing RECI Hermetic and detached CO2 laser tube

Laser power

RECI Z2-90w(Z4-100w / Z6-130w for option)

Max Power

300w-1000w

Cooling Mode

Circulating-water-cooling

Power Adjustment

0-100% controlling, no segment and adjusting by software

Machine Control and Drive

Speedy DSP controlling, stepper motor

Engraving Speed

1200mm/s

Cutting Speed

500mm/s

Repeating Location/ Resolution

±0.01mm/1000dpi

Minimum Character

Chinese character 1.5*1.5mm ,

English crisscross-row 1.0*1.0mm

Adjustable Up-down

Distance of Laser Head

30mm

Working Travel Area

1300×2500mm, 1300mm width with infinity material-feeding

Work voltage

AC110V/220-240V, 50/60Hz

Working Environment

Temperature: 0-45, Humidity: 5%-95%,

 and congeal-water removed

Controlling Software Language

English, Simplified Chinese, Traditional Chinese

and procuring of multi-languages

Dictate Format

*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support

AutoCAD,CoreDraw direct outputting

Machine Performance:

Machine Model

XJ1390, 1300*900mm

Laser-type

High-Tech Hermetic and detached CO2 laser tube

Laser-power

Reci Z2-90w(Z4-100w/Z6-130w for option)

Cooling mode

Circulating-water-cooling

Power adjusting

0-100%controlling,no segment and adjusting by software

Machine control and drive

Speedy DSP controlling, steper motor

Max engraving speed

1200mm/s

Max cutting speed

500mm/s

Repeating location/Resolution

±0.01mm / 1000dpi

Minimum Character

Chinese character 1.5*1.5mm, English crisscross-row 1.0*1.0mm

Max power

750W

Adjustable up-down distance of laser head

40mm

Working travel area

1,300*900mm, 900mm width with infinity material-feeding

Table area

1350*3000mm

Up-down range of

working table

mechanical 280mm, 260mm with vacuum table

Working voltage

AC110V/220-240V, 50/60Hz

Working environment

Temperature: 0-45,Humidity: 5%-95%,

and congeal-water removed

Controlling software language

Simplified Chinese,complicated Chinese, English, and procuring of multi-languages

Dictate format

*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw direct outputting

Optional Equipment

Rotary attachment Dia. 130mm (Chuck fixing)

Motorized up-down table

Water-cooling unit

Red-light position

Vacuum Table

DSP Off-line operation with usb flash

Recommended Spare Parts

Laser tube

Reflect-len

Focus lens

Accessories

water-cooling system

1 unit

gas exhaust

1 unit

air cooling device for laser head

1 unit

Professional "RD-laserCut" original sofeware & control card

1 unit

Guarantee&Aftersales service:

Laser tube 10,000 hours' working time
