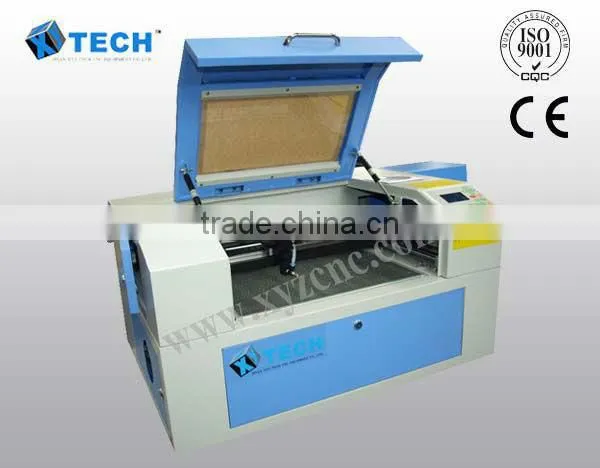

XJ-3050 High Precision rubber stamp laser making machine

Specifications

rubber stamp laser making machine
1)working range is 500*300
2)manual up-down table and rotary
3)stepper motor and dsp

XJ-3050 High Precision rubber stamp laser making machine





 1 .  Features:



1)     imported stepper motor and guide-rails ensures long time movement without adjusting,the machine is durable and steady. Perfect dustproof and pollution defending design grestly improves the machine stability.

2)    Can be restored from power off , resume on break point.

3)    Full-automatic water cooling system can be optional.

4)    Back door can be opened  to process long material and easily feeding.

5)    The latest DSP laser control system has user_friendly windows operation interface , supporting dictate format of DWG, PLT, BMP , DXF ,AI, transmitting files directly from CoreDraw ,AutoCAD etc.





Teachnical parameters:



Model	XJ5030
Engraving range	500*300mm
Laser type	Hermetic and detached CO2 laser tube
Poweer adjusting	0-100% controlling,no segment and adjusting by software
Laser tube cooling mode	Circulating-water-cooling
Machine control and drive	Speedy DSP controlling ,stepper motor
Power	80W(100W,130W for optional)
Resolution	<0.0254mm
Setting accuracy	<0.0254mm
Repetition accuracy	<0.0254mm
Max engraving speed	2000mm/sec
Max cutting speed	400mm/sec
Min size of  engravedletters	Chinese letter engraving 1.5mm,english letters engraving 0.8mm,cutting 1mm
Max cutting thickness	≤acrylic 20mm
dicate	Transmil file directly from Coreldraw ,AutoCAD etc.
Working voltage	AC220V/50Hz







Optional equipment:

Rotary attachment,

Motorized up-down table

Special water-cooling

Vacuum table

Red-light position

DSP off-line operation with usb flash





Applicable area:





1) Advertising industry:  Double-colored board carving, Organic glass carving and cutting, Label carving, Crystal cup-carving, Warranty signed carvinggg



2) Carved gifts and Crafts industry: wood/Granite, Bamboo, Ivory, Bone, Leather



3) Leather clothing industry: Complex characters and pattern carving, Cutting on Hypoderm, Synthetic Leather, Man-amde Leather, Cloth.



4) Arcitectural model industry: ABS board cutting, Model carving



5) Packing and Printing Industry: Rubber board, Plastic board, Double-layered board, Model cutting board



6) Production totem industry: Appliance signs, Anti-fake commodities marking



















Our machine
Cnc router		Laser machine
Small/desktop cnc router	XJ3030 XJ3636 XJ6090	Laser engraving machine	XJ3050 XJ6040 XJ6090
Advertising cnc router	XJ1212 XJ1218 XJ1224
Stone/metal processing cnc router	XJ6015 XJ1212 XJ1218	Laser cutting machine	XJ1280 XJ1390 XJ1410
Woodworking cnc router	Xj1224      XJ1325		XJ1318     XJ1325
WE ALSO ACCEPT CUSTOMIZATION ,WELCOME SPECIAL REQUIEMENT







3. Guarantee & Aftersales Service



Comprehensive guarantee for half year



24-hour technical support by email or calling.



User-friendly English manual for machine using and maintainin.









 offer follow speed up your progress



1.What kind of material do you want to process?
2.What is the dimension of your working material?
Based on the above analysis, we will recommend the most suitable machine and best solution for you.



Remark:

We have detailed installation and operation CD as well as full set of User's Manual in English to teach you how to install and operate the machine.
