cheap invitation card machine sticker cutting machine acrylic laser engraving cutting machine
We are manufacturer and specialized in cnc router ,laser engraving and cutting machine,
plasma cutting machine and cutter plotter, with 16 years production and sales experience
in this field and 12 year export and service experinece for overseas’ buyers.
Standard accessories:
1) 1×Air Compressor for Air Assist *for blowing off debris/dust at laser head during the laser engrave or cut.
2) 1×Exhaust fan with pipes Optional: Air Filter Cleaner
3) 1×Water pump for cooling at Laser tube, Optional: Industrial water chiller
4) 1×USB Cable (connecting PC and laser)
5) 1×DVD (including lasercut software set, user manual, guiding/training videos etc.)
6) 2×Power cables
7) 1×Tool bag/box
Explanation for the Optional equipment:
1) Red-dot Pointer for Laser Head *for marking the laser shooting position at laser head during the laser engraving or cutting.
2) Industrial water chiller *with better working performance than water pump.
3) Air Filter Cleaner *with air filter to clean the dusts, ashes and smells produced from laser engraving or cutting.
4) Rotary Attachment *for working with Round or Cylinder materials as Wine Bottles, Beer Cups, etc.
Features:
1.Adopting advanced DSP digital control system and intenational standard laser power supply, in integrated framework style, that make the working in high stability and high speed.
2.Transmitting files directly from Coredraw, AutoCAD, usb2.0 interface output can support off-line working.
3.The optimized and decent new design ensure the processing speed up to 1200mm/s with low price.
4.Big power and high stability laser, equiping with imported lens and mirror ensure the machines in a long life-span, one step cutting can reach 30mm thickness on acrylic.
5.Imported linear rail and high quality belt for transmission, equiping speed-down structure, ensure the product in high quality and stability cutting.
6.Automatic up and down table, rotary device, red dot position and vacuum system etc.
Noticed : We adopt RECI CO2 Quality Laser Tube with Associated laser power supply. Life-span is 10,000hours' working time, 300days warrantited.
Professional and high quality cnc laser cutting machine for leather cutting:
1. Taiwan PMI square guide rails for XYZ-axis
2. sealed CO2 laser tube with 60W,80W,100W,130W,150W, we use famous RECI brand laser tube made in Beijing.
3. Leadshine stepper motor and driver
4.belt transmission, also can be optional ball screw transmission, if you need, we can produce it for you
5.laser head with red light positioning function
6. exhaust fan and air pump, so it can adsorb the smoke when you engrave and cut the materials
7.water chiller, it can recycle the water and then cool the laser tube.
8.Ruida or Leetro control system in English, with USB interface
9. knife table or honeycomb table, it's up to you, if you want to cut cloth or fabric, it's best for you to choose honeycomb table
10. We adopt RECI CO2 Quality Laser Tube with Associated laser power supply. Life-span is 10,000hours' working time, 300days warrantited.
Applicable Materials of the cnc laser glass cutting machines:
Acrylic, wood, leather, bamboo, crystal, rubber, plastic, double plate, PCB board, glass, etc
CNC Laser Cutting Machine 130X250cm applicable Industries:
Advertisement( marks/ signs/ billboards/plates) bamboo & wood product/ art craft work/ ornament/ paper-cutting /cloth/ fabric/ hang bag/ glove/ garment/ leather/ embroidery/ shoemaking/ toy/ crystal/ packing & printing/ panel/ mould/ decoration/upholster and other related industries.

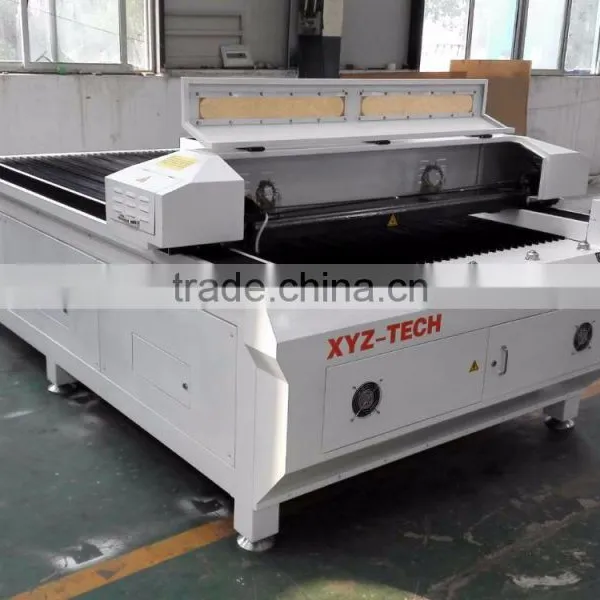

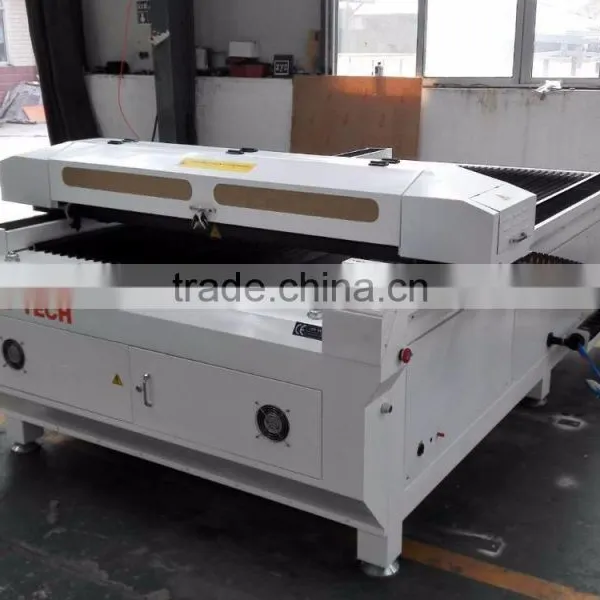

Laser Cutting Machine For Sale XJ1325
Technical Parameters:
Model | XJ1325 |
Working area | 1300*2500mm |
Laser type | Hermetic and detached CO2 laser tube ,water-cooling |
Laser tube power | 100w laser tube (130w for option) |
Cooling system | Water circulation |
Machine Control and Drive | Speedy DSP Controlling |
Engraving speed | 1000mm/s |
Cutting speed | 500mm/s |
Cutting depth of acrylic | 1-15mm (depend on different materials) |
Minimum forming character | 1mm*1mm English Letter |
Maximum scanning precision | 0.0254mm |
Positioning precision | 0.01mm |
Communication interface | USB |
Work table | Blade work table/Honeycomb work table |
Power supply | 220V (or 110V) +/-10% 50Hz (or 60Hz) |
Drive mode | Step motor |
Auxiliary equipment | Exhaust-fans, air-exhaust pipe |
Software included | LaserCut Original Software |
Design software | Coreldraw(11/12/X3/X4/X5/X6),AutoCAD(compatible); Photoshop etc. |
Picture format supported | PLT,DXF,DST,BMP,AI(direct);JPG,GIF,PGN,TIF(conversion) |
Operation system | Windows2000/XP/VISTA/7,32/64Bits |
Delivery Time | 7 days |
Color optional | Blue&white; red&black |
Net Weight | 570kg |
Packing size(mm) | 1920*1450*1000mm plywood standard case |

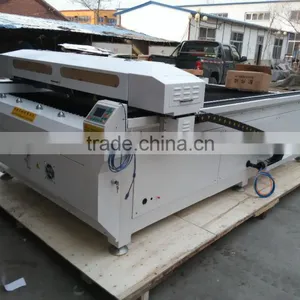

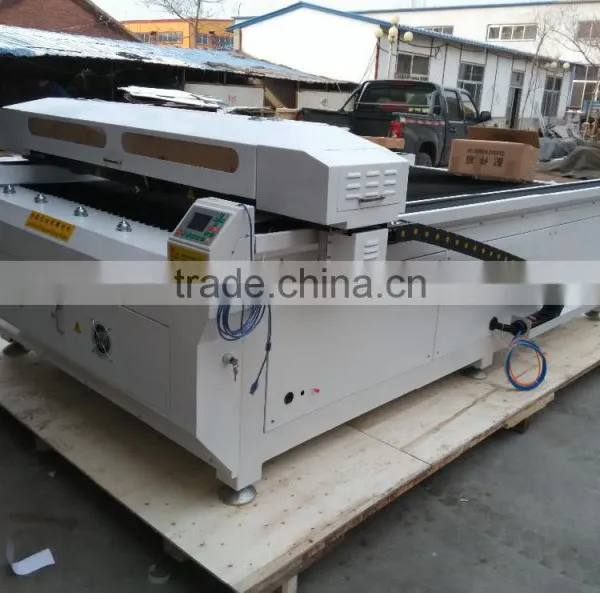

Packing picture:
Our factory:
We started to produce Mechanical and Laser Engraving Machine in 1994.
Nearly 20 years rich experience in producing saling and service ensures you high quality machine
and perfect service.
Our Export Percentage up to 81%~90%.
OEM Service Offered Design Service Offered Buyer Label Offered .
Guarantee & Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
