XJ3050 portable cutting machine desktop laser cutting machine
We are manufacturer and specialized in cnc router ,laser engraving and cutting machine,
plasma cutting machine and cutter plotter, with 16 years production and sales experience
in this field and 10 year export and service experinece for overseas’ buyers.
1.High speed and good quality
2.CO2 laser tube
3 High precision and perfect
Features of mini jewelry laser engraving machine:
1)Compact and professional design for the machine make it high practicability.
2)DSP control system, adopting stepper motor and high quality drive, ensure it working in with high speed and accuracy.
3)USB interface can support data transitting to be quick.
4)It equips with Liquid crystal display panel.
5) Restar from power break point when power on.

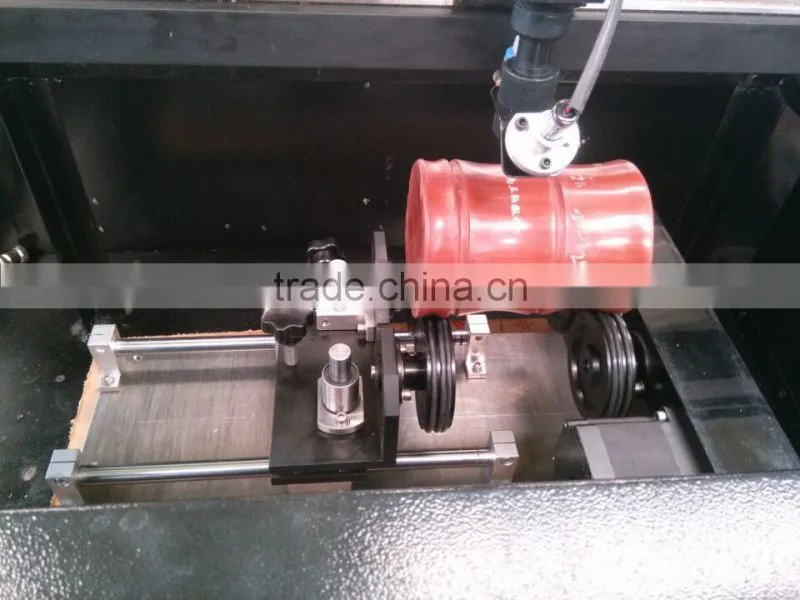

6) Electrical drive up-down table, rotary device, red dot, vacuum, etc. are optional.
7) Reasonable Gantry Structure, Stable laser Path, the whole structure is very firm.

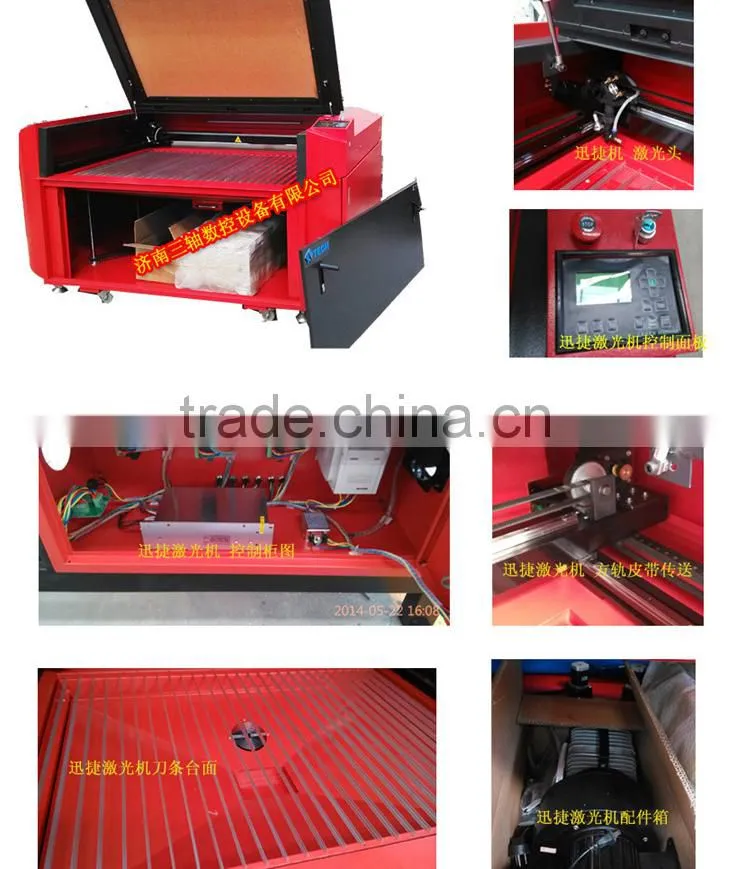

8) Machine consists of solid laser carving machine main parts, RECI CO2 Laser Tube with assoicated laser power supply, water-cooling system. It has the advantage of compact structure, easy operation, stable optical path and other unique features.
9) We adopt RECI CO2 Quality Laser Tube with Associated laser power supply. Life-span is 10,000hours' working time, 300days warrantited.
10)Welcome you trial order.
Laser Cutting Machine For Sale XJ3050
Technical Parameters:
Model | XJ 3050 |
Working area | 300*500mm |
Laser type | Hermetic and detached CO2 laser tube, water-cooling |
Laser tube power | 40 w laser tube |
Cooling system | Water circulation |
Engraving speed | 1000mm/s |
Cutting speed | 400mm/s |
Engraving depth of acrylic | 2mm |
Cutting depth | 5-8mm (depend on different materials) |
Minimum forming character | 1mm*1mm English Letter |
Maximum scanning precision | 0.0254mm |
Positioning precision | 0.01mm |
Communication interface | USB |

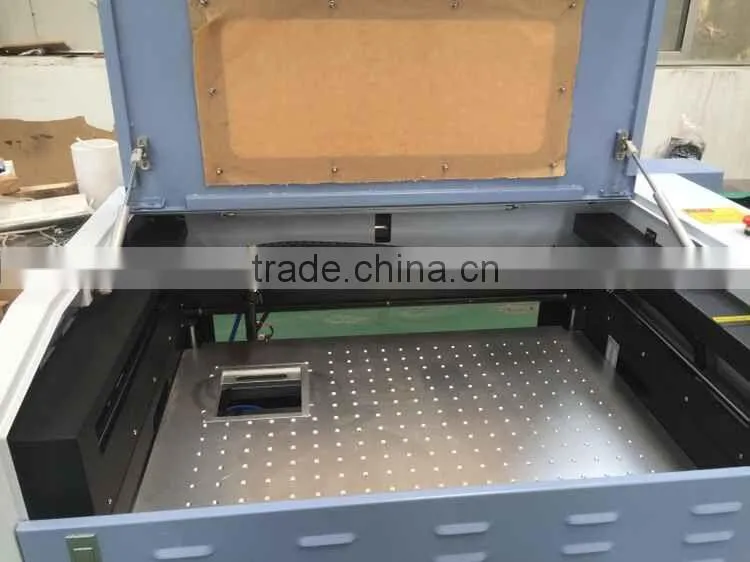

Work table | Blade work table/Honeycomb work table (Electric up and down table option) |
Power supply | 220V (or 110V) +/-10% 50Hz (or 60Hz) |
Drive mode | Step motor |
Software included | Laser cut |
Design software | Coreldraw (11/12/X3/X4/X5/X6), AutoCAD(compatible); Photoshop etc. |
Picture format supported | PLT,DXF,DST,BMP,AI(direct);JPG,GIF,PGN,TIF (conversion) |
Operation system | Windows2000/XP/VISTA/7/8,32/64Bits |
Packing size(mm) | 1130*930*1060mm |
Weight | 220 kg (Gross weight) 180 kg (Net weight) |
Features and specialties:
1).Adopting advanced DSP digital control system and international standard laser supply,in integrated framework style,that make the working in high stability and high speed.
2).Transmitting files directly from Coredraw Autocad,usb2.0 interface output can off-line working.
3).Imported linear rail and high quality belt for transmission, equips with speed-down structure,ensure the product in high quality and stability cutting.
4).Application to material:Acrylic,wood,leather,bamboo,crystal,
rubber,plastic,double plate,PCB board,glass,etc.
the above pictures is the samples of laser engraving machine
Packing picture:
Our factory:
We started to produce Mechanical and Laser Engraving Machine in 1994.
Nearly 20 years rich experience in producing saling and service ensures you high quality machine
and perfect service.
Our Export Percentage up to 81%~90%.
OEM Service Offered Design Service Offered Buyer Label Offered .
Guarantee & Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
A:T/T:30% T/T deposite,70% before shippment.
This is the most convinent payment terms f or international trade.
B: Escrow of alibaba. It is a third party payment terms.
1) You pay money to alibaba.
2) We prepare your machine production.
3) After your production,we would tell you timely,then you click the button"agree to ship".
4) We ship it.
5) After dispatch,we show documents to Alibaba,Alibaba would ask your agreements for money r elease to our company.
6) After your agreement,Alibaba would pay your money to us.
Your money is safe in alibaba before your agreement of money release.And During this process,alibaba stuff would contact you and us..
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
