100w cutting 20mm Acrylic laser cutting machine 6090 double head price
We are manufacturer and specialized in cnc router ,laser engraving and cutting machine,
plasma cutting machine and cutter plotter, with 16 years production and sales experience
in this field and 12 year export and service experinece for overseas’ buyers.
Specifications:
1.Laser Cutting Machine For Sale XJ6090
2.60w CO2 laser type tube
3.rotary device,automatic up-down table are optional.
Features:
1) imported stepper motor and guide-rails ensures long time movement without adjusting,the machine is durable and steady. Perfect dustproof and pollution defending design grestly improves the machine stability.
2) Can be restored from power off , resume on break point.
3) Full-automatic water cooling system can be optional.
4) Back door can be opened to process long material and easily feeding.
5) The latest DSP laser control system has user_friendly windows operation interface , supporting dictate format of DWG, PLT, BMP , DXF ,AI, transmitting files directly from CoreDraw ,AutoCAD etc.
Machine parts:
2015 agent price!!!600*900mm wood acrylic laser engraving machine 6090
1.Water chiller (CW3000, CW5000, CW5200): water cooling and protection system to prolong the use life time of laser tube.
2.Diameter10cm rotary device (Chuck, Champagne): Chuck, used for regular cylindrical object; Champagne, specially used for champagne bottle.
3.Auto focus system: set the optimal focus according to the thickness of object through sensor automatically.
4.Red light position system:improve position accuracy.
5.Honeycomb table: used for cutting soft material, such as cloth and leather,silk etc.
6.Motorized up-down table,the work table can up-down 380mm,so that laser machine can use rotary device and put thickness material
Applicable area:
1) Advertising industry: Double-colored board carving, Organic glass carving and cutting, Label carving, Crystal cup-carving, Warranty signed carvinggg
2) Carved gifts and Crafts industry: wood/Granite, Bamboo, Ivory, Bone, Leather
3) Leather clothing industry: Complex characters and pattern carving, Cutting on Hypoderm, Synthetic Leather, Man-amde Leather, Cloth.
4) Arcitectural model industry: ABS board cutting, Model carving
5) Packing and Printing Industry: Rubber board, Plastic board, Double-layered board, Model cutting board
6) Production totem industry: Appliance signs, Anti-fake commodities marking

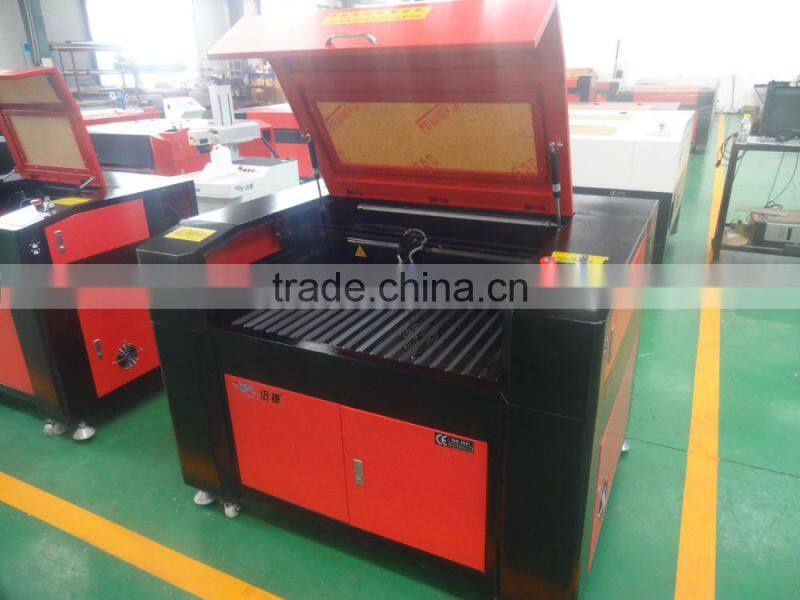

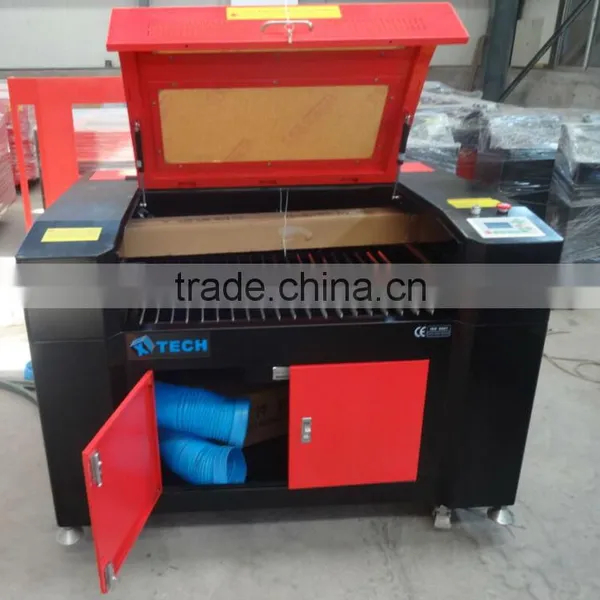

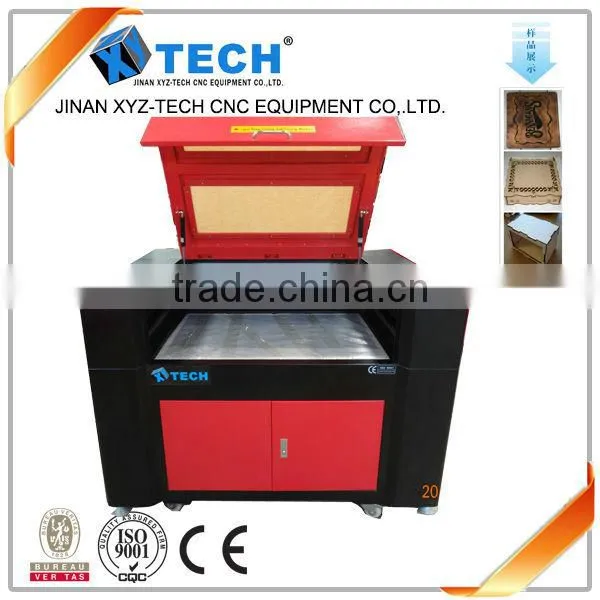

Laser Cutting Machine For Sale XJ6090
Technical Parameters:
Model | XJ6090 |
Working area | 600*900mm |
Laser type | Hermetic and detached CO2 laser tube,water-cooling |
Laser tube power | 60w laser tube (80w/100wfor option) |
Cooling system | Water circulation |
Machine Control and Drive | Speedy DSP Controlling |
Engraving speed | 1000mm/s |
Cutting speed | 500mm/s |
Cutting depth of acrylic | 1-25mm (depend on different materials) |
Minimum forming character | 1mm*1mm English Letter |
Maximum scanning precision | 0.0254mm |
Positioning precision | 0.01mm |
Communication interface | USB |
Work table | Blade work table/Honeycomb work table (Electric up and down table option) |
Power supply | 220V (or 110V) +/-10% 50Hz (or 60Hz) |
Drive mode | Step motor |
Software included | LaserCut Original Software |
Design software | Coreldraw(11/12/X3/X4/X5/X6),AutoCAD(compatible); |
Picture format supported | PLT,DXF,DST,BMP,AI(direct);JPG,GIF,PGN,TIF(conversion) |
Operation system | Windows2000/XP/VISTA/7,32/64Bits |
Delivery Time | 7 days |
Gross Weight | 240KGS |
Packing size(mm) | 1680*1170*1140 plywood standard case |
Packing picture:
Our factory:
We started to produce Mechanical and Laser Engraving Machine in 1994.
Nearly 20 years rich experience in producing saling and service ensures you high quality machine
and perfect service.
Our Export Percentage up to 81%~90%.
OEM Service Offered Design Service Offered Buyer Label Offered .
Guarantee & Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
