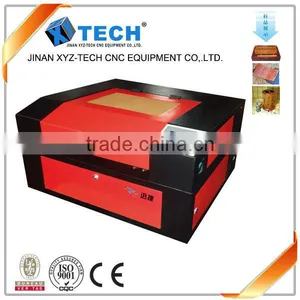

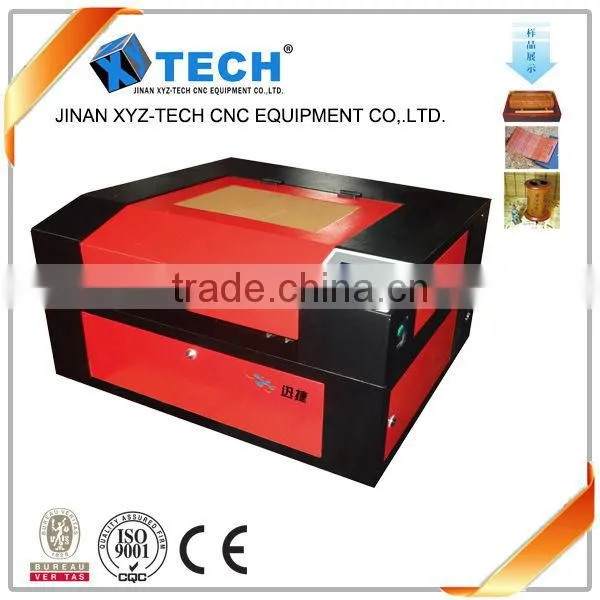

XJ-3050 mini small laser engraving engraver machine

FOB Price

US$ 1,500 - 2,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Laser Type	Other, CO2, CO2
Engraving Area	500*300mm	Engraving Speed	1000mm/s
CNC or Not	Yes	Cooling Mode	Water Cooling
Applicable Material	Acrylic, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood	Graphic Format Supported	AI, BMP, DST, DWG, DXF, DXP, LAS
Place of Origin	Shandong, China	Brand Name	XYZ-TECH
Model Number	XJ3050	Dimension(LWH)	1020700600mm
Certification	CE, ISO	After-sales Service Provided	Engineers available to service machinery overseas

XJ-3050 mini small rubber stamp laser engraving machine

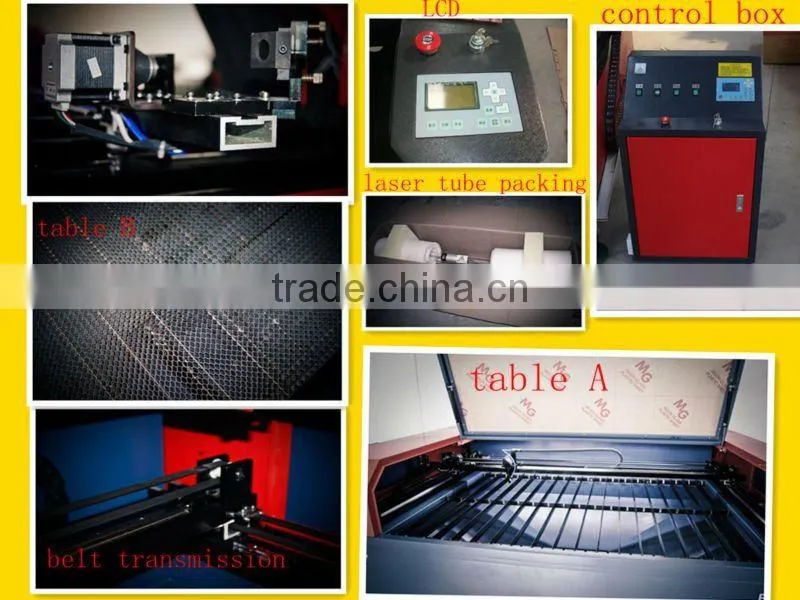

1,Features and specialties:

1. Copact and professional design for the machine make it high practicability.

2. DSP control system, adopting stepper motor and high quality drive, ensure it working in with high speed and accuracy.

3. USB interface can support data transitting to be quick.

4. laser engraving machine equips with Liquid crystal display panel.

5. transmitting ting files directly from Coredraw , AutoCAD, high speed usb2.0 interface output can support off-line working.

6. Restart from power break point when power on.

7. Electrical drive un-down table, rotary device, red dot, vacuum, are optional.

2:Technical parameters:

Description	XJ6040	XJ6090	XJ3050
X,Y Working Area	600X400mm 23.6 X 15.7 inch	600X900mm 23.6X35.4 inch	300X500mm 11.8X19.7 inch
Laser Power	50w	60w	50w
Engraving Speed	0 - 1200mm/s
Cutting Speed	0 - 500mm/s
Reposition Accuracy	±0.01mm
Minimum Letter Size	Chinese character 1.5mm, English 1mm
X Y Guiding System	Linear Guide Bearings
Driving system	Stepper Motor
Operating System	Windows98 Windows XP
Interface	LCD screen with USB interface
Max Power	750w
Supported Format	.plt,.dst,.dxf,.bmp,.dwg,.al,*las, Support AutoCAD,CoreDraw direct outputting
Working Voltage	AC110V/220V 50HZ/60HZ (optional 380V or 110V )
Working Environment	Temperature:0-45,Humidity:5%-95%,and congeal-water removed
Control Software Language	Simplified Chinese,complicated Chinese, English
Optional	Special water-cooling chiller CW-3000 / CW-5000
	Motorized up-down table
	Red-light position (laser dot )
	Vacuum Table
	Honeycomb table surface
	Rotary device (diameter 100mm)

3.Application :

Any non-metal material can be processed, for example,acrylic, wood ,leather, bamboo, crystal, rubber, platic, double plate, PCB board, glass, etc

4.Guarantee&Aftersales service:

1) tube of laser engraving machine :2400 hours' working time

2)24 hour technical support by email

3)User-friendly english manual for machine using and maintaining

5.Sample:
