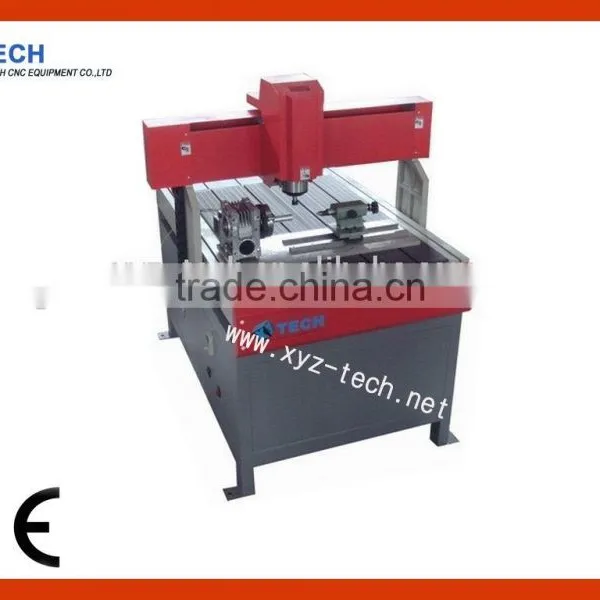

XJ6090 cnc drilling machine pcb

Specifications

XJ6090 cnc drilling machine pcb
*Block cast fuselage
*CE certificate.
*DSP control system.
*USB interface

 XJ6090 cnc drilling machine pcb

Specifications:

Model		XJ-6090
Working Area		600×900×80mm
Spindle Motor		1.5KW Air-cooled spindle
Working Mode		Stepper motor
Control System		DSP(128MB) or PCIMC control system
Drive Mechanism		German imported ballscrew for x,y,z axis
Table Surface		T-slot extrusions
Frame		Cast aluminum
Motion Positioning Accuracy		± 0.02/300mm
Repositioning Accuracy		± 0.01mm
Max Motion Speed		8,000mm/min
Max Engraving Speed		5,000mm/min
Rotating Speed of Spindle		2,4000rpm
Engraving Tools		3.175mm, 4mm 6.00mm
Dictate Formate		G code, *.u00, *.mmg, *.plt/HPGL/NC
Operating Voltage		AC220/50Hz
Software		Type3 original with Dongle or Wentai , ArtCAM software/ARTCAM/CAXA
Packing Size		1500×1170×1300mm
Net Weight		161kg
Gross Weight		205kg
Noise Level	Racing	LAeep dB(A)72±1
	Engraving	LAeep dB(A)80±2
	Engraving Peak	LAeep dB(C)95
Optional Parts		Dust Collecting System
		Rotary Device
		Mist Sprayer
		Flume
		DSP System w/Portable Control Pad (128MB)

Features:
1) Lathe bed is cast wholly and firmly and will not deform;
2) Imported ball screw rod and round guide rail to ensure accuracy ;
3) Subdivision stepper motor with excellent performance, quick speed, stable operation, and large cutting movement to ensure long and safe operation ;
4) Frequency conversion water-cooling large power motor, low noise, even speed ;
5) Humanistic design, the machine can be disassembled, so it is easily transported ;
6) Applicable to: a) Chest species b) Tablet species c) Building models d) Signs e) Metal f) Wooden models g) Embossed pictures.

 Guarantee and after-sale service:

1)1 year guarantee

2)24 hours technical support by e-mail or calling

3) User-friendly english manual and Video CD for machine using and maintaining

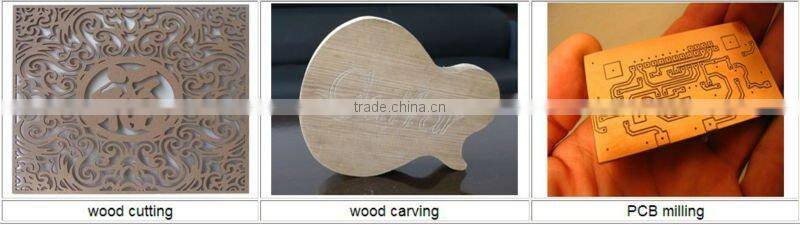

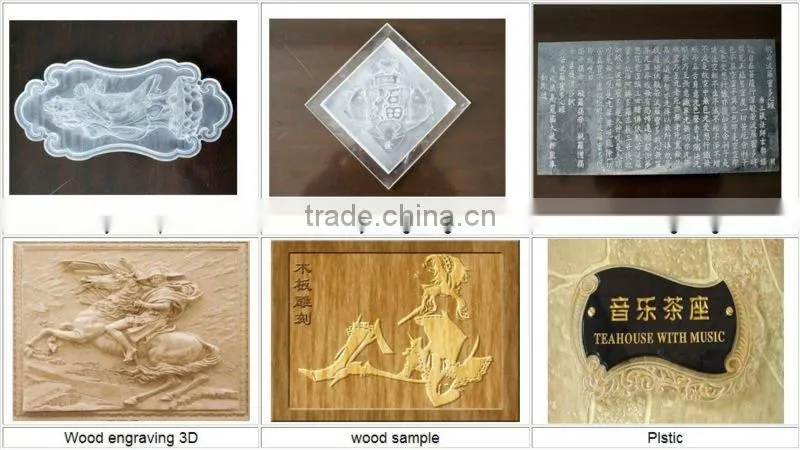

sample











optional parts
