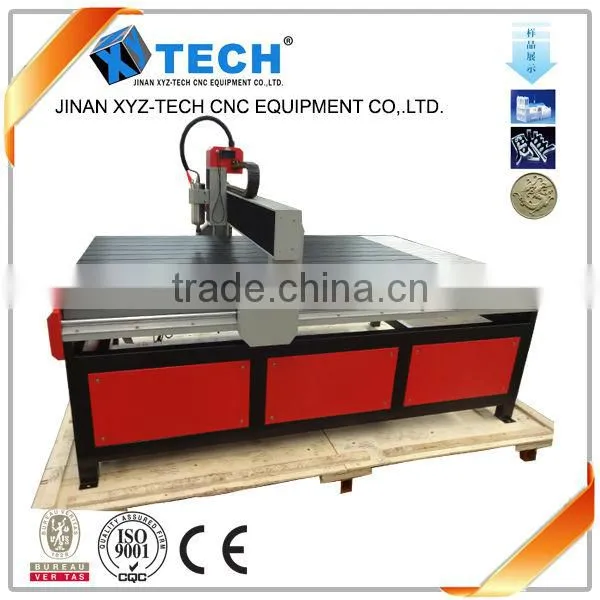

high quality advertising cnc router engraver drilling and milling machine

Specifications

cnc router engraver drilling and milling machine
1.with section portal frame
2.integral cast iron frame
3.more scientific,CE

high quality advertising cnc router engraver drilling and milling machine

this is the newest model ,with section portal frame and integral cast iron frame , more scientific to ensure ensure the parallelism ,verticality and concentricity and grestly increase the precision and speed of the engine bed.



Features:

• Integral cast-iron frame, embedded linear, much more stable and solid structure.
• Rolling ball screw from Germany, two nut eliminating clearance, advanced fixing mode of three bearings.
• Configured 1.5kw inverter-driven spindle motor cooled by water
• Adopt the most advanced DSP controlling system
• Easy operation, sturdy, durable, reliable performance, good price,
• Dust-proof ,water-proof , up-down working table ,rotary device  ,servo system system are optional

Application field:

Sign board process, mould, bronzing mould, motor, trim injection mould, shoe mould, badge, pattern mould, art carve, dial, font mould, mold, sign and label etc...



Parameters:

Model	XJ-1224 (1200x2400)
Spindle motor	1.5KW, 2. 2kw inverter-driven spindle motor cooled by water
Engraving speed	6000 approximately 12000mm / min
Rotation speed of spindle	approximately 24000 RPM
Engraving tools	3. 175 4 6 (optional)
Format dictates	G-code
Ball screw	Two-nut rolling ball screws from Germany
Resolution	0. 01mm
High Speed	synchronization of processing curves and straight lines can be up to speed of 12m / min
Massive Memory Capacity	Standard Capacity of 128MB, Store 20 files simultaneously makes processing at ease.
Quick Data Transmission	USB interface, work without computer, not occupying computer resources
Multi-Compatibility	Be compatible with popular CAD / CAM
Software	type 3 / Artcam / Casmate / Proe / UG / Artgrave etc

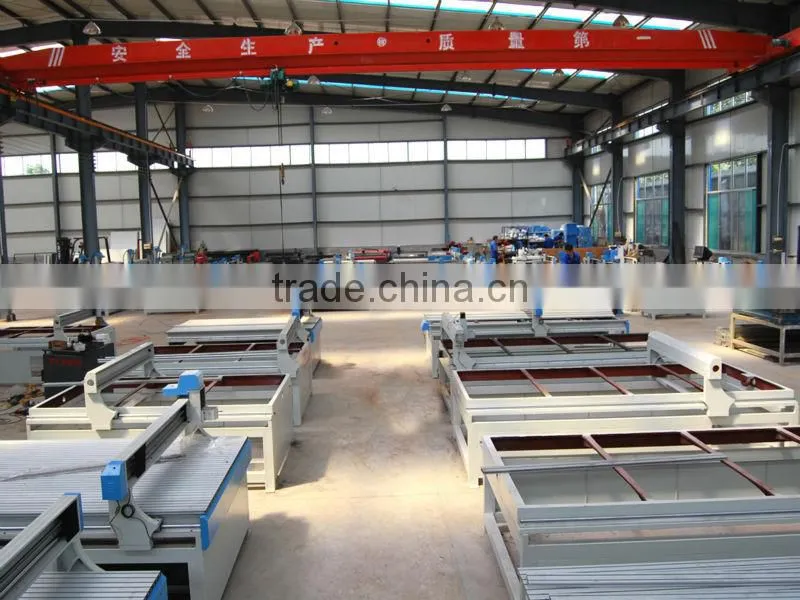

Our factory:

We started to produce Mechanical and Laser Engraving Machine in 1994.

Nearly 20 years rich experience in producing saling and service ensures you high quality machine

and perfect service.

Our Export Percentage up to 81%~90%.

OEM Service Offered   Design Service Offered   Buyer Label Offered .
