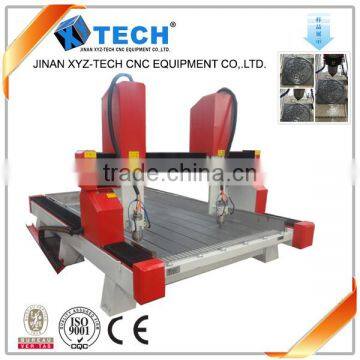

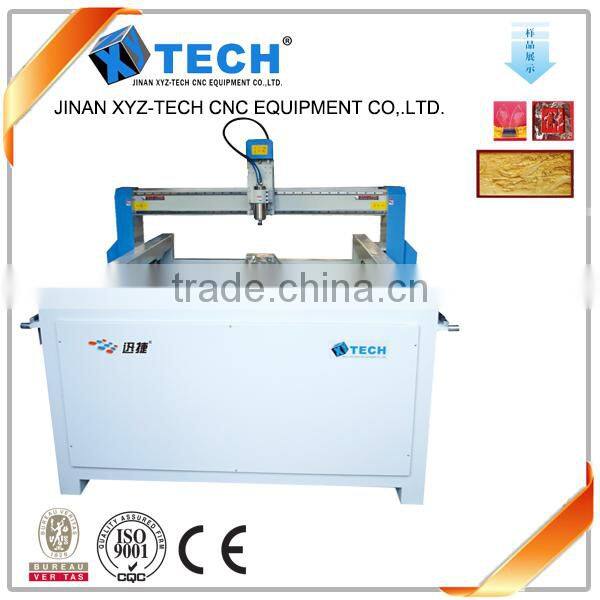

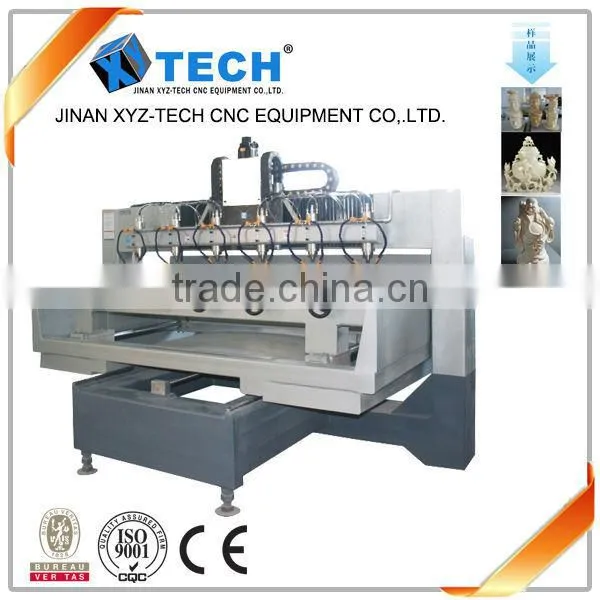

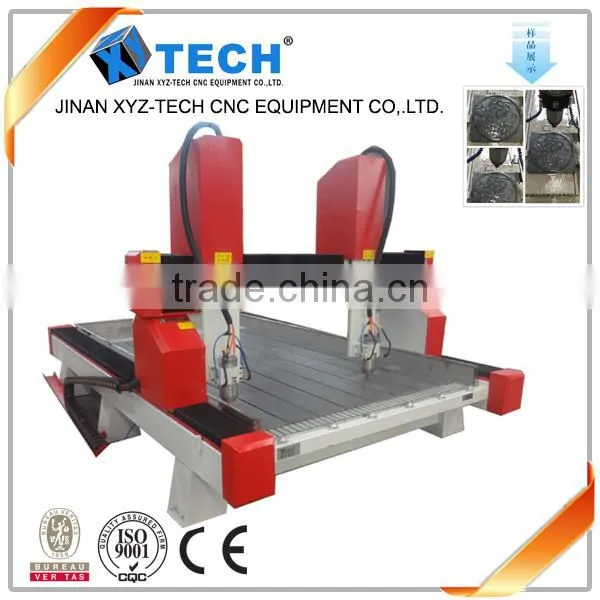

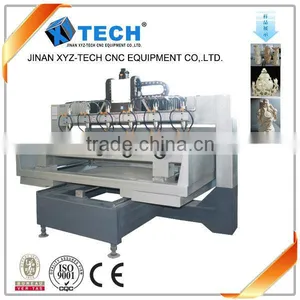

Multi-function cnc router with rotary device(CE) 1218
| Model | XJ1218 |
| workin table moving size | 400mm |
| Working Area | 1,200×1,800×120mm |
| Spindle Motor | 2.2KW inverter-driven spindle motor cooled by water (or air for option) |
| Stepper | Stepper motor |
| Drive mechanism | German imported ballscrew for x,y,z axis |
| Resolution | 0.01mm |
| Max motion Speed | 7,000mm/min |
| Max engraving speed | 4,000mm/min |
| Rotating Speed of Spindle | 2,4000rpm |
| Engraving Tools | 3.175mm, 4mm 6.00mm, 12.70mm |
| Dictate Formate | G code,u00, mmg, plt |
| Control system | Weihong PC-control(NCSTUDIO) or DSP(128MB) off-line control(USB) |
| Operating voltage | AC220/50Hz |
| Interface | RS232 |
| soft ware | Type3 original with dongle&Wentai software |
| Running circumstance temperature | 0 - 45 |
| Relative humidity | 30% - 75% |
| Packing size | 1900x 2040x 1500mm |
| Gross weight | 460kg |
| Optional equipment | Dust Collecting System |
| Vacuum table with air pump | |

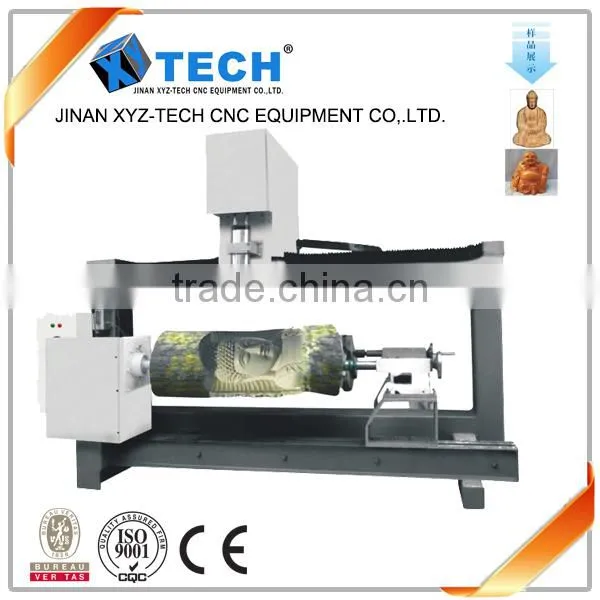

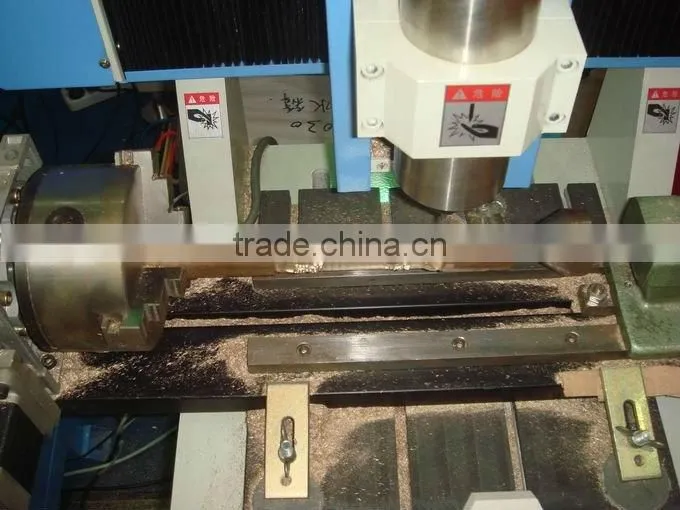

| Rotary Device | |
| Mist Sprayer | |
| Flume free of charge | |
| DSP System w/Portable Control Pad(128MB) | |
| Guarantee&Aftersales service: | |
| Exhaust guarantee for one year | |
| 24 hour technical support by email or calling | |
| User-friendly english manual for machine using and maintaining | |
Features:
1) Lathe bed is cast wholly and firmly and will not deform
2) Imported ball screw rod and round guide rail to ensure accuracy
3) Frequency conversion water-cooling large power motor for low noise, even
speed, and long operational life
4) USB ensures high speed and efficiency
5) Unique calculating method for curvy, speedy operation
6) Applicable to:
a) Large advertising signs
b) Acrylic brands
c) Tablets
d) Calligraphy
e) 3 dimensional characters
f) Gardening decorations
g) Wall decorations

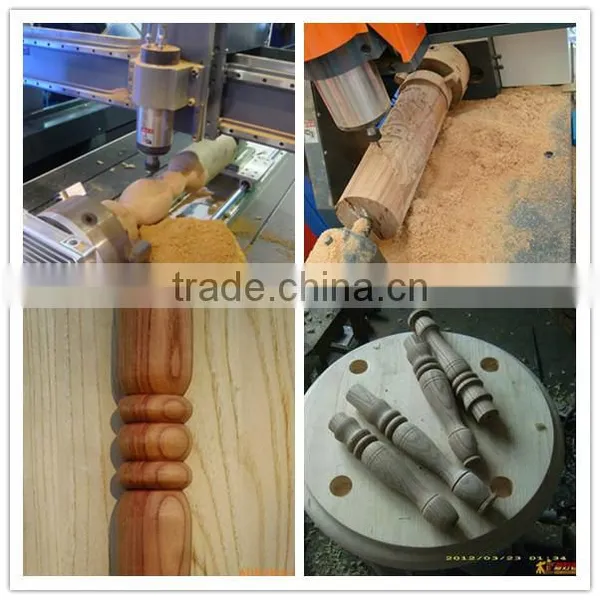

Samples:
Guarantee and after-sale service:
1.12 months for machine, 3-10 months for laser tube
Optional long lifetime laser tube: 1500-10,000 hours.
2. 24 hours technical support by e-mail, calling or door-to-door service
3. English software, user manual and detailed installation&training Videos DVD
4. International quality certificate:CE,FDA,SGS,ISO9001
5. professional laser machine supplier with 10 years experiences
Q1.how to get the most suitable machine and best price
Please tell What Kind of Materials will you work on ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
How to working on it ? Engraving ? Cutting ? Or other ?
Q2: Do you have the manual of machine.
Yes,we have.
Q3.If we donot know how to use the machine,can you teach us?
Yes,we will. The machine has operating tutorial within the package.
If you come to China, we will offer you free training until you can use machine freely.
And if you are busy,we will send the special engineer to your country,but you need to
bear the tickets and accommodation.
Q4.How about your after-sales service?
we offer you 24 hours service phone, Skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
