Laser Chiller/ laser water cooling system for high power laser machine
1. Features:
1) Convenient for installation and operation;
2) Integrated electronic control, large digital displays;
3) Single temperature, single control;
4) Low flow alarm;
5) Over heat and over low temperature alarm;
6) One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch to appropriate operating temperature.

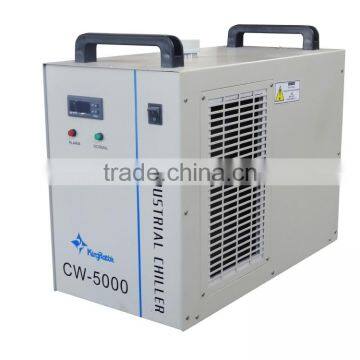

2. Specification of Laser Water Chiller CW5000 :
Model |
CW-5000AG |
CW-5000BG |
CW-5000DG |
Voltage |
AC 1P 220V |
AC 1P 220V |
AC 1P 110V |
Frequency |
50Hz |
60Hz |
60Hz |
Current |
1.4-2.1A |
3.5-5.6A |
|
Compressor Power |
0.295KW |
0.38KW |
0.305KW |
0.40HP |
0.52HP |
0.41HP |
|
Refrigeration Capacity |
2361Btu/h |
2999Btu/h |
2866Btu/h |
0.692KW |
0.879KW |
0.84KW |
|
595Kcal/h |
756Kcal/h |
722Kcal/h |
|
Refrigerant |
R-134a |
||
Refrigerant Charge |
300g |
320g |
280g |
Precision |
±0.3℃ |
||
Reducer |
Capillary |
||
Protection |
Overcurrent protection for compressor, flow alarm, over temperature alarm |
||
Pump Power |
0.03KW |
||
Inlet and Outlet |
External Φ10mm brass connetor |
||
Tank capacity |
6L |
||
Max. Lift |
10M |
||
Max. Flow |
10L/min |
||
N.W. |
24kgs |
||
G.W |
27kgs |
||
Dimensions |
58x29x47cm(LxWxH) |
||
Packing Dimensions |
70x43x58cm(LxWxH) |
||
Guarantee and After Sales Service
1.One year warranty,main parts are free of charge when problems happened during the guarantee period.
2.We provide the consumable parts at agent price when you need replacement
3.24 hours online service each day,free technical support with different languages.
4.We provide door to door technical support ,if necessary.
We offer training in our factory.
<Welcome to our factory for visiting and trainning.> (need samples provided)
Machine spare parts and repair service is also available from us.
